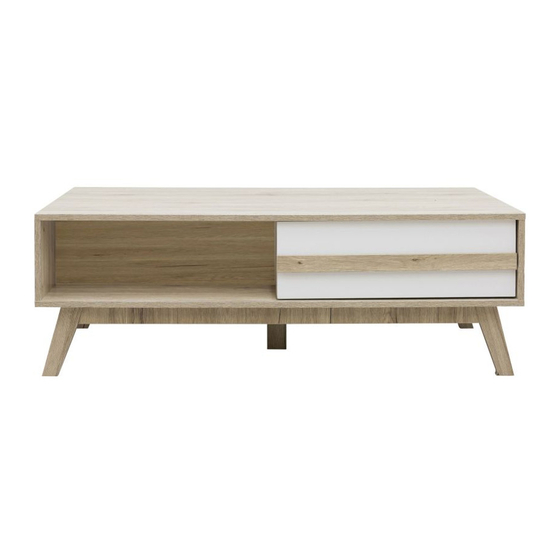

Scarborough Coffee Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
bolt
dowel
long screw
x20
x14
x6
H
I
slide
slide
rail x2
rail x2
N
O
al
len
felt pad
leg bracket
key x1
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
locking
screw
nut x14
x26
J
K
cover
bracket
x2
x2
Q
P
screw
bolt
x4
x4

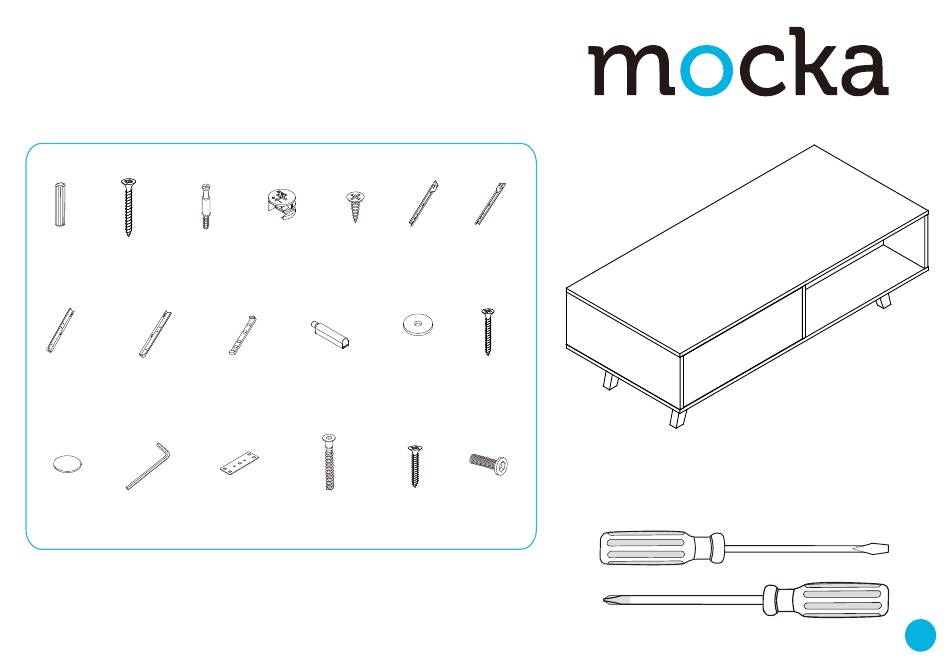

Hardware Supplied
F
G
slide
slide
rail x2
rail x2
L
M
plug
screw
x2
x8
R
S
small
x8
bolt
x16
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Scarborough Coffee Table
Summary of Contents for Mocka Scarborough Coffee Table
- Page 1 The fixing device provided should fit most wall types, but please note that different wall materials may require different fixing devices from those supplied. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 1x slide rail (F) to panel [3] as shown with 3x screws (E). Tighten Insert 6x bolts (C) into panel [1] and tighten with a screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [5] to panels [3], [4] and [5] with 8x dowels (A) as shown. Flip the panel [4], attach 1x slide rail (G) to panel [4] as shown with 3x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach 2x brackets (J) to panel [2] and secure with 4x screws (E). secure with 6x locking nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. Place 2x covers (K) over the brackets (J) as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 [6] to panel [2] using 4x small bolts (S) as shown. Tighten with the Allen key (O). Attach 4x felt pads (N) to the ends of the legs. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Insert 4x bolts (C) into panel [7]. Attach 1x plug (L) to panel [7] and Attach panels [8], [9] and [11] as shown using 4x screws (M). secure with 1x screw (E).Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Slide panel [10] along the grooves between the side panels [8] and Attach panel [7] to panels [8] and [9] using 4x locking nuts (D). [9]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Secure with 4x screws (E) and tighten with a screwdriver. sitting flush, twist the end of the cover (K) until it catches on the plug (L). Once assembled lift furniture into place, do not drag. You're done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
