Mocka Scarborough Entertainment Unit Assembly Instructions Manual

Scarborough Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C
dowel long bolt
x18
x18
screw x8
I J K
slide cover
bracket
x4
rail x2 x4
Q R S
bolt screw small bolt
x8
x4 x16
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D E F
locking screw slide
x32
nut x18 rail x2
L M N
plug screw
height
x4 x8
adjuster x2
T U A1
felt pad wedge screw
x8
x4 x8

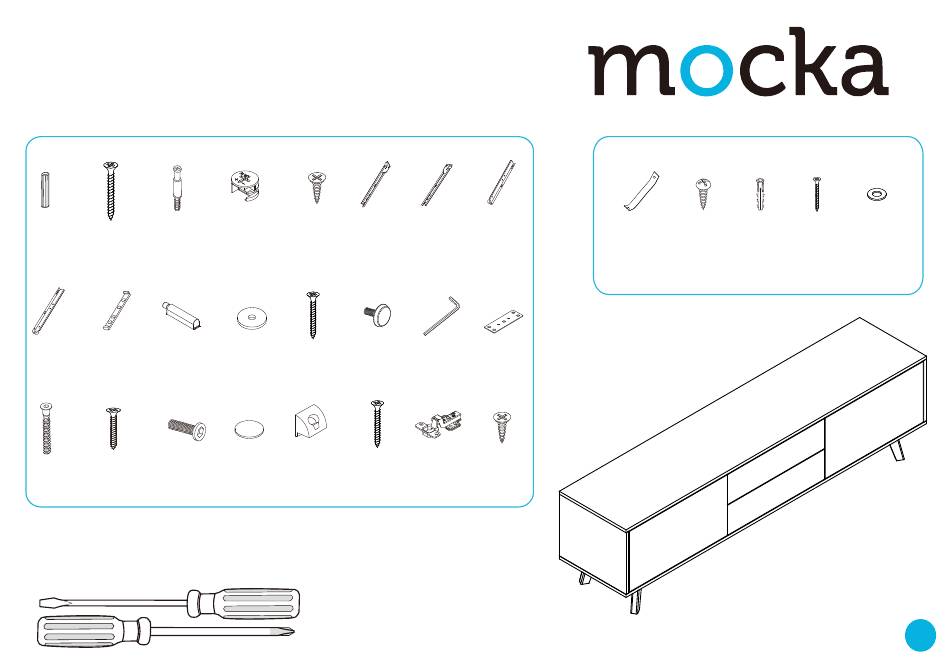

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G H
slide slide
rail x2 rail x2
O P
allen leg
key x1 bracket x4
A2 A3
hinge screw
x4 x24
V W X
safety screw wall
x1
strap x1 anchor
x1
Wall Strap
Y Z
wall washer
x2
screw
x1
1
