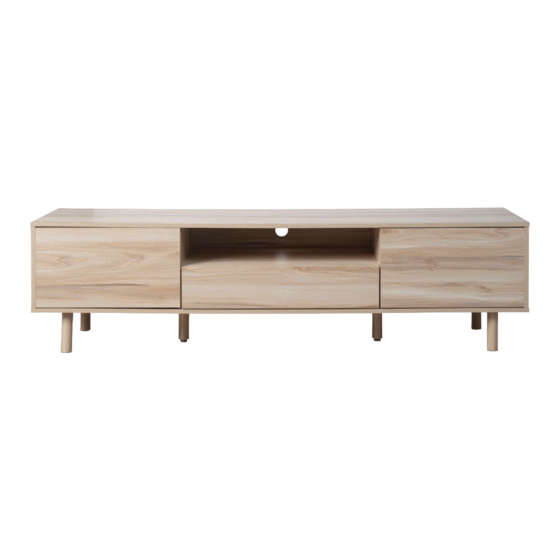

Sintra Entertainment Unit
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A B C D
bolt
dowel screw locking
x14 x17
x21 nut x17
L M N O
plastic cover seal
bracket
x3
glide x4 x3 x3
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E F G H
long
screw bolt
bracket
bolt
x19 x6 x24
x12
P Q R S
hinge screw slide
adjuster
rail x1
x2 x24
x4

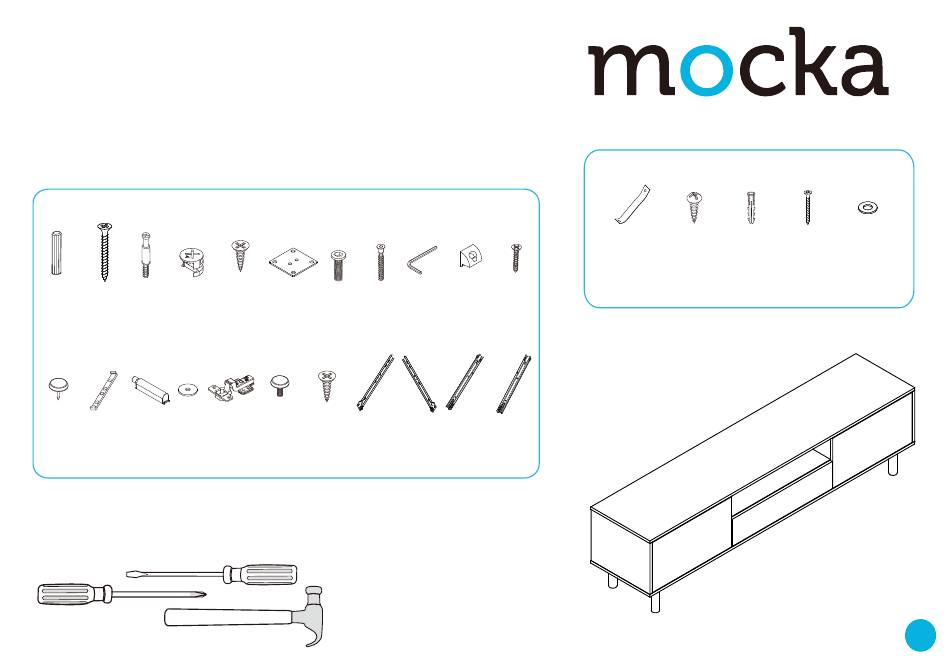

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
K
J
I
Allen
wedge screw
x8
key
x8
x1
T U V
slide slide
slide
rail x1 rail x1 rail x1
V W X
safety screw wall
x2
strap x2 anchor
x2
Wall Strap
Y Z
wall washer
screw x4
x2
1
