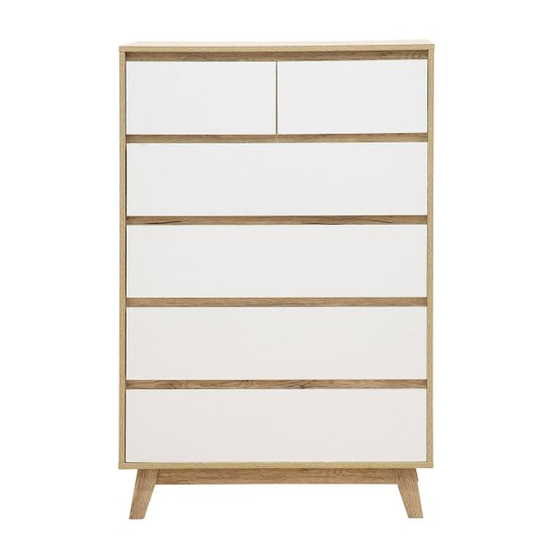

Scarborough Tallboy
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
long
bolt
x18
x50
screw x5
H
I
J
slide
slide
bracket
rail x6
rail x6
x6
O
P
Q
allen
leg bracket
bolt
key x1
x4
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
locking
screw
x78
nut x50
K
L
cover
plug
x6
x6
R
S
screw
small bolt
x8
x16

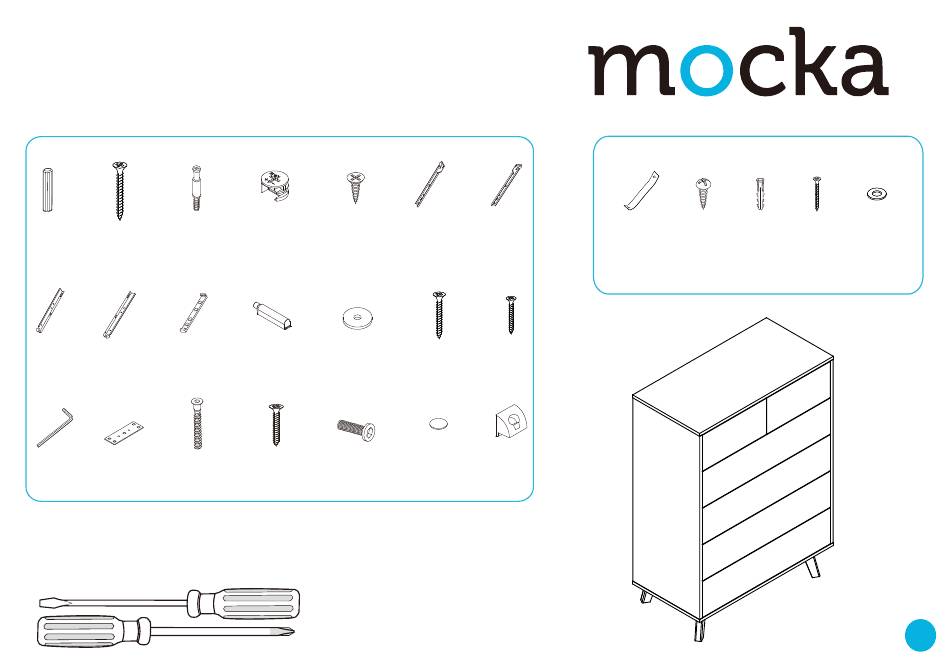

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
G
slide
slide
rail x6
rail x6
N
M
screw
screw
x8
x28
T
U
felt pad
wedge
x8
x4
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Scarborough Tallboy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mocka Scarborough Tallboy

  • Page 1 Phillips & Flathead screwdrivers For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 2 Attach 5x slide rails (F) to panel [3] as shown with 15x screws (E). Insert 6x bolts (C) into panel [1] and tighten with a screwdriver. Tighten with a screwdriver. Insert 8x bolts (C) into panel [3] and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 3 Attach 1x slide rail (G) and 1x slide rail (F) to panel [5] as shown Tighten with a screwdriver. Insert 8x bolts (C) into panel [4] and with 6x screws (E). Tighten with a screwdriver. tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 4 Attach 6x brackets (J) to panels [2], [6] and [7] secure with 12x screws (E). secure with 2x locking nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. Place 6x covers (K) over the brackets (J) as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 5 Attach panels [6], [7] and [8] to panel [3] with 4x dowels (A) and Slide panel [9] down along the grooves between panels [8] as shown. secure with 8x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 6 Attach panel [4] to panels [6], [7] and [8] with 4x dowels (A) and Slide panel [9] down along the grooves between panels [3] secure with 8x locking nuts (D). Tighten with a screwdriver. and [4]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 7 [10] to panel [2] using 4x small bolts (S) as shown. Tighten with the Allen key (O). Attach 4x felt pads (T) to the ends of the legs. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 8 Attach panel [1] to panels [3] and [4] with 4x dowels (A) and as shown. secure with 4x locking nuts (D). Tighten with a screwdriver. Attach panel [5] to panel [6] secure with 1x long screw (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 9 Attach panels [13], [14] and [16] as shown using 4x screws (M). panels [11] and [12] and secure with 1x screw (E). Tighten with a Tighten with a screwdriver. screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 10 Slide panel [15] down along the grooves between panels [13] Attach panels [11] and [12] to panels [13] and [14] using 4x locking nuts (D). and [14]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 11 Insert 5x bolts (C) into panel [17]. Attach 1x plug (L) to panel [17] as shown. Secure with 4x screws (E) and tighten with a screwdriver. and secure with 1x screw (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 12 Drawer x 4 Attach panels [13], [14], [18] and [20] as shown using 5x screws (M). Slide panel [19] down along the grooves between panels [13] Tighten with a screwdriver. and [14]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 13 Attach slide rails (H) and slide rails (I) to the underside of the side panels Tighten with a screwdriver. as shown. Secure with 4x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 14 (K) until it catches on the plug (L). with 8x screws (N). Now attach 1x safety strap (V) to the back edge of panel [1] using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 15 (V). Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
