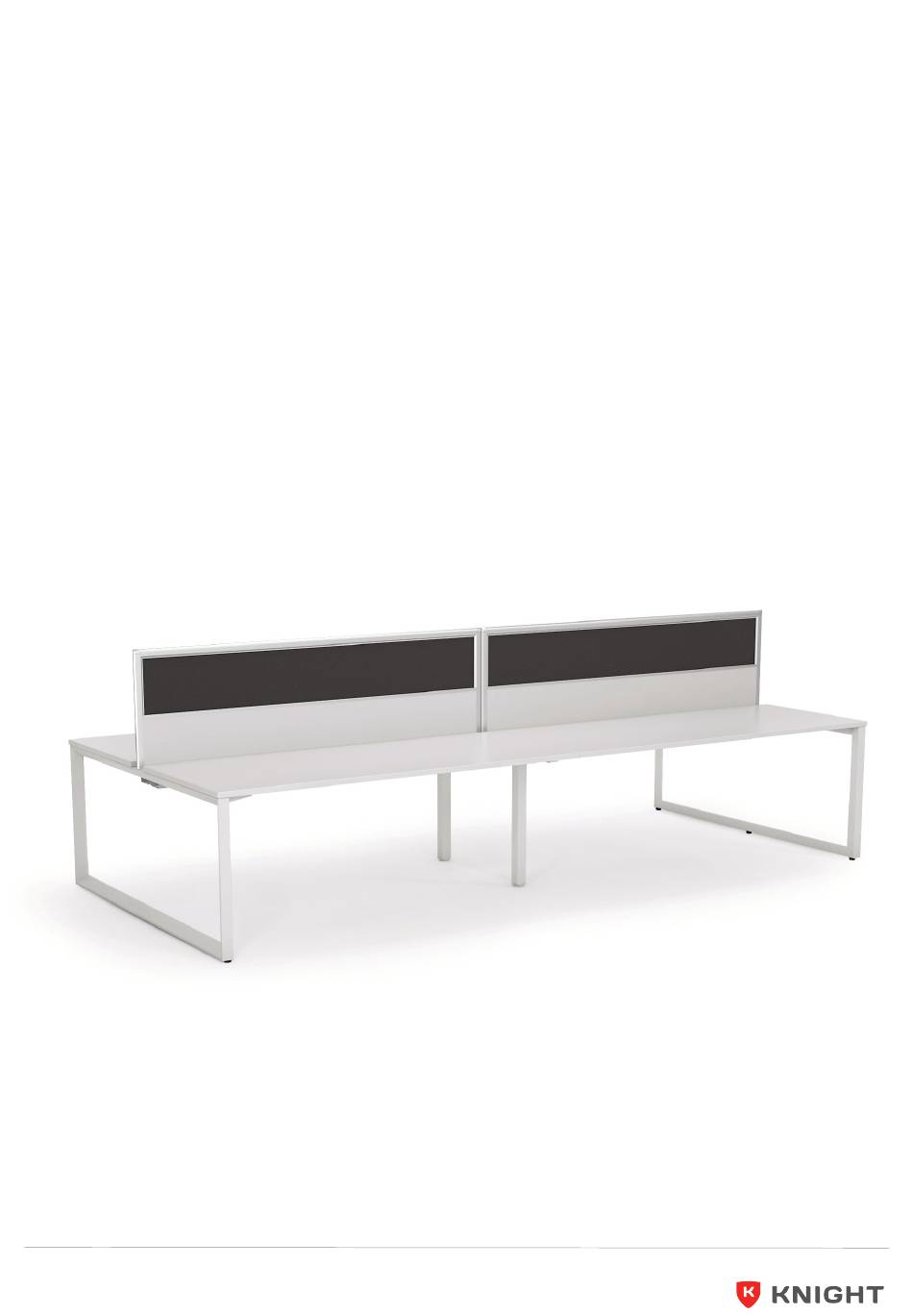

- Page 1 Anvil Double Sided Desk Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Anvil Double Sided Desk Page 1 Assembly Instructions • To prevent possible scratches or damage, assemble the desk upside down on a soft surface such as a blanket, carpet or packaging. • Attach legs to the top assembly by using bolts, spring washer, flat washer.
- Page 3 Anvil Double Sided Desk Page 2 Page 2 Assembly Instructions Assembly Instructions Step 1 Step 2 Assemble frames & rails together, loosely Assemble screen brackets to frame, loosely (1 turn (1 turn from tight). from tight). Step 3 Step 4 Fix desk top with 5mm overhang over metal frame.
- Page 4 Anvil Double Sided Desk Page 3 Page 3 Assembly Instructions Assembly Instructions Step 5 Step 6 Attach centre screen end seal and top cap with soft Attach screens to centre pole with top slug non-marking mallet. connectors. Step 7 Step 8 Mark out end of return screens on desk.
- Page 5 Anvil Double Sided Desk Page 4 Page 4 Assembly Instructions Assembly Instructions Step 9 Step 10 Remove return screen end seal, and attach screen to Attach return screen end seal and top cap with soft bracket with self tapper screws.
- Page 6 Anvil Double Sided Desk Page 5 Page 5 Assembly Instructions Assembly Instructions Step 13 Step 14 Fit power/data rails with screws into frame rail. Fully tighten all rails to frame screws, & then screen bracket screws. Step 15 Completed Attach cable trays with screws provided.
