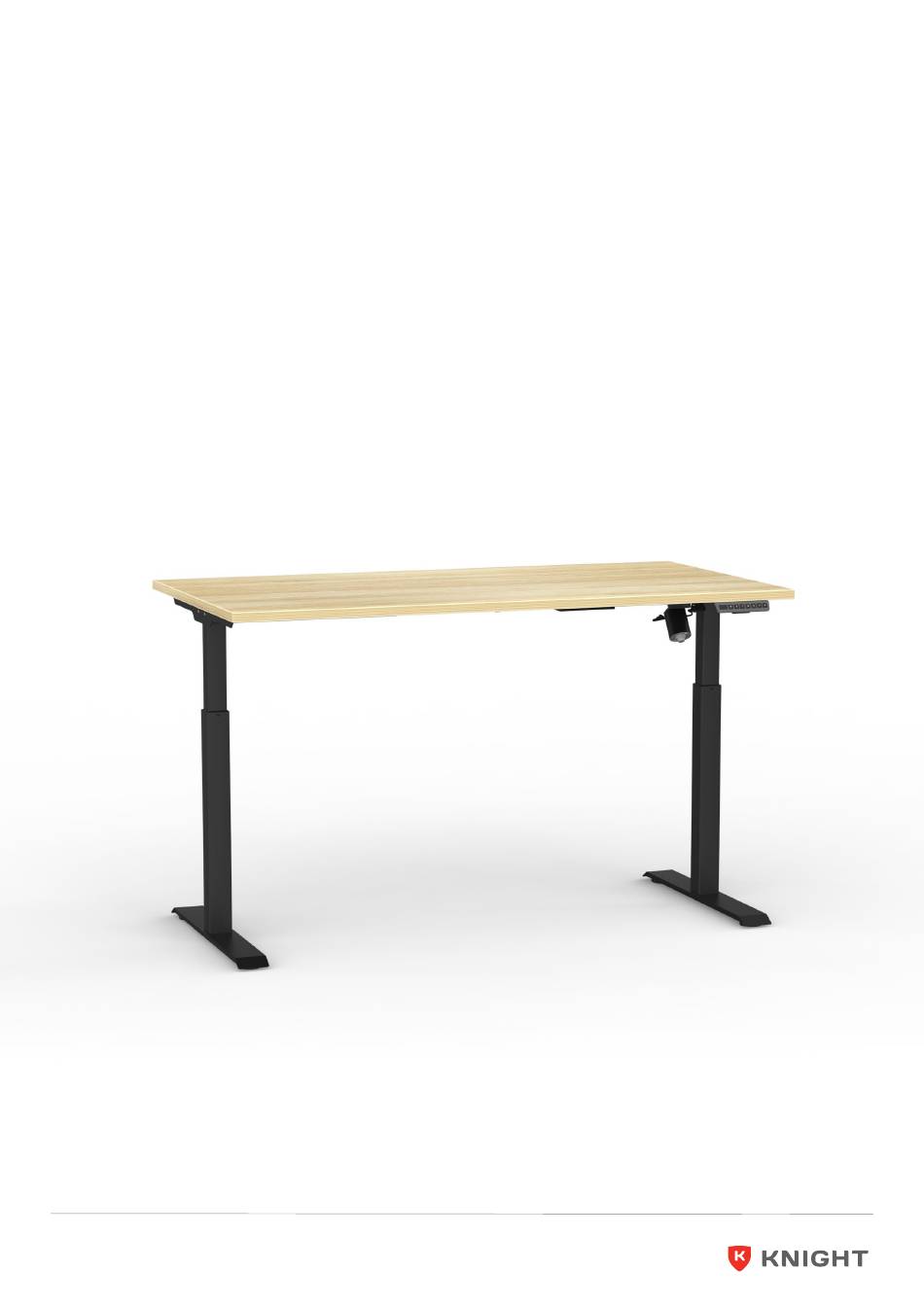

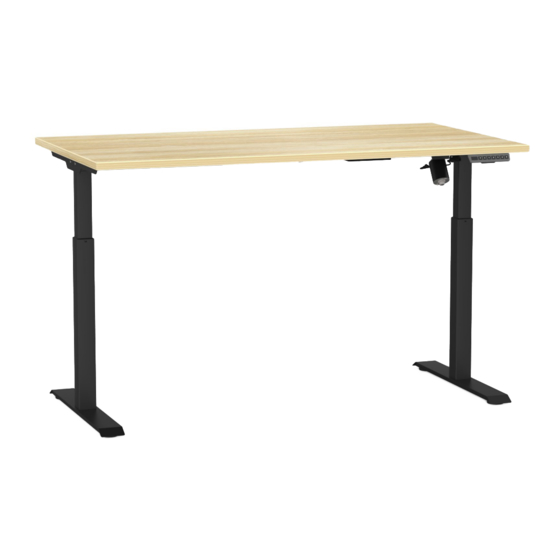

- Page 1 Agile Boost Desk Digital Handset Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Agile Boost Desk Page 1 Page 1 Assembly Instructions Assembly Instructions Important Please carefully read the assembly manual and direction for use prior to installment, use and maintenance of the desk frame to gain a complete understanding of its contents. It provides you with important information about the safety, use, installation and maintenance of the desk.
- Page 3 Agile Boost Desk Page 2 Assembly Instructions Recommended 2-person Step Parts: 1x RIGHT LEG 1x LEFT LEG 2x SIDE FRAME 1x LONG RAIL 2x FEET 1x HEX BAR 1x CONTROL BOX 1x HANDSET 1x POWER CORD 8x M8x30 4x ST4.2x16 10x ST5.0x23*...
- Page 4 Agile Boost Desk Page 3 Page 3 Assembly Instructions Assembly Instructions Step 1 Attach side frames to left and right leg using M6x12 screws and M4 hex key. 4x M6x12 Step 2 Loosen Loosen screws in long rail and adjust length, fix left and right end of long rail to legs using M6x12 and M4 hex key.
- Page 5 Agile Boost Desk Page 4 Page 4 Assembly Instructions Assembly Instructions Step 3 Fix bases to left and right legs using M8x30 screws and M5 hex key. 8x M8x30 Step 4 Loosen grub screws on hex bar and insert from A, adjust the length and connect other end to B.
- Page 6 Agile Boost Desk Page 5 Page 5 Assembly Instructions Assembly Instructions Step 5 Adjust long rail and hex bar length to suit worktop, then fix worktop to frame using ST5.0x23 wood screws. 10x ST5.0x23 10x M6x12 Worktop Length 1200mm 1125mm...
- Page 7 Agile Boost Desk Page 6 Page 6 Assembly Instructions Assembly Instructions Step 7 Attach control box with ST4.2x16 screws on right hand side on front side of long rail and connect cable. 2x ST4.2x16 Step 8 Attach digital handset with ST4.2x16 screws on right hand side on front edge of worktop and connect cable to control box.
- Page 8 Agile Boost Desk Page 7 Page 7 Assembly Instructions Assembly Instructions Step 9 Plug power cord into control box. Step 10 Plug desk into correct power supply and follow digital handset instructions to setup your desk. knightgroup.co.nz...
-
Page 9: Operation
Agile Boost Desk Page 8 Page 8 Assembly Instructions Assembly Instructions Digital Handset Display Up & down Memory Screen Buttons Buttons Button SAFETY FUNCTION The whole handset surface is a button panel. If there is no press within 30 seconds, the screen is locked and 1/2/3/4/S keys are locked... -
Page 10: Advanced Function Settings
Agile Boost Desk Page 9 Assembly Instructions Advanced Function Settings Reset original status: Press “UP” and “DOWN” for 10 seconds until S-5 = Basic height setting you hear a beep sound, now the system into factory default data. Use “up” & “down” buttons to adjust the basic height.
