MicroNet SP390I Quick Installation Manual

Switch
IP Camera with PoE
WARNING:
Connect the injector with splitter only. Connecting the injector
directly to other devices may cause serious damage!
CE Mark Warning
This equipment complies with the requirements relating to
electromagnetic compatibility, EN 55022 class B for ITE, the
essential protection requirement of Council Directive 89/336/EEC
on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it
may be possible that information in this document is not up-to-date.
Please check with your local distributors for the latest information.
No part of this document can be copied or reproduced in any form
without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their
respective companies.
Copyright © 2011, All Rights Reserved.
WEEE Directive & Product Disposal
At the end its serviceable life ,this product should not be treated
as household or general waste. It should be handed over to the
applicable collection point for the recycling of electrical and
electronic equipment, or returned to the supplier for disposal.
P/N 2300-0653
Ethernet Cable
SP390I
Power over Ethernet
Injector
Power Cord
5
7
Specifications
Standards IEEE802.3, 10BASE -T
IEEE802.3u,100BASE-TX
IEEE802.3ab, 1000Base-T
IEEE802.3af, IEEE802.3at
Interface 10/100/1000 Mbps, RJ-45 x 2 (Data In x1;
Data and Power Out x 1)
Pin Assignment 1/2 (+), 3/6(-)
and Polarity
Output Power 52Vdc
Voltage
User Port Power 30 Watts
Connectors Shielded RJ-45, EIA 568A and 568B
o
Operating
-10 - 45 C
Temperature
Storage o
-20 - 70 C
Dimension
145 x 60 x 40 mm ( W x L x H )
Weight (g)
0.350kg
Power Supply
Input: 100-240V, 50/60Hz
Output: 52VDC, 30Watts
Emission
FCC Class B,CE
Communicate via
Quick Installation Guide
Power over Ethernet Injector

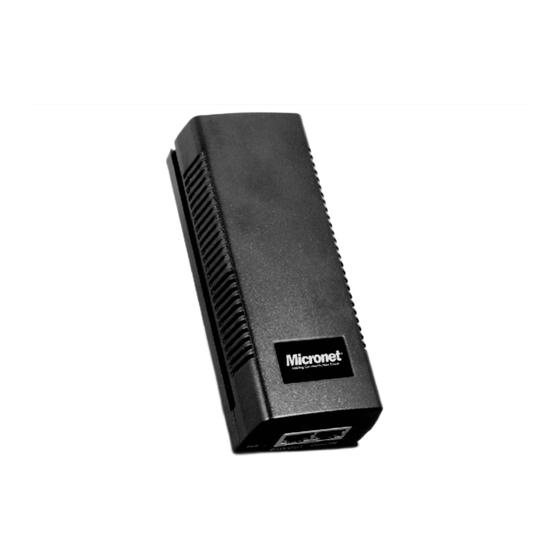

Model No.: SP390I
