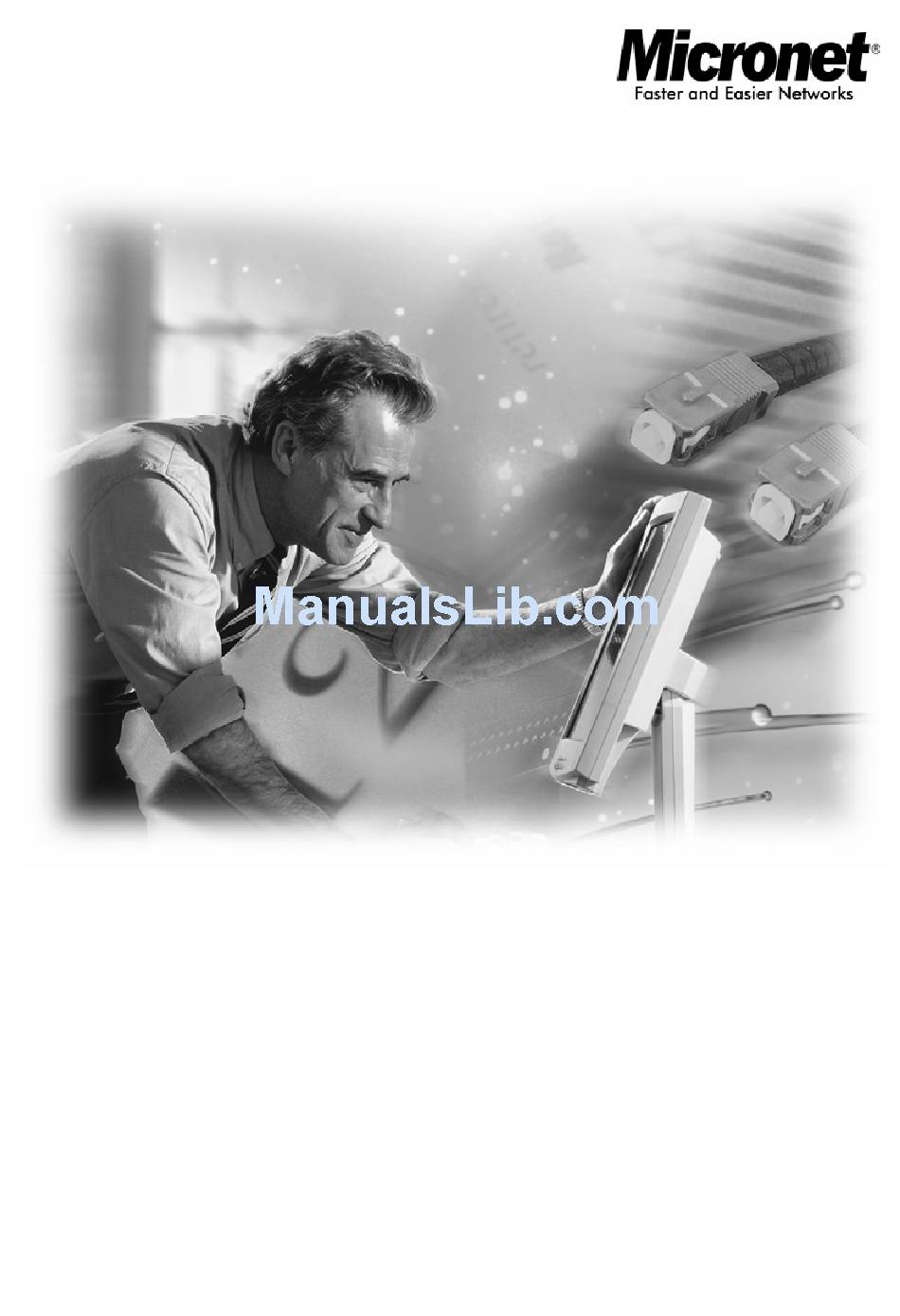

- Page 1 User’s Manual EtherFast 10/100M Smart Switch Model No.: SP659B World Wide Web: www.micronet.com.tw ; www.micronet.info...
-
Page 2: Table Of Contents
Table of Content ------------------------------------------------------------------------------------------------------------------------- INTRODUCTION.................... 3 ................3 ACKAGE ONTENTS ....................3 EATURES ................4 HYSICAL ESCRIPTION INSTALLATION....................5 ................5 REPARING THE ................5 ETTLING THE WITCH ................5 ONNECTING TO OWER ..............5 ONNECTING TO ETWORK WEB-BASED INTERFACE CONFIGURATION ..........7 UP C ............... -
Page 3: Introduction
Introduction Micronet SP659B is a 24 ports 10/100M plus 2 ports Gigabit smart switch. It provides powerful, high-performance Ethernet Smart Switch, with 2 ports capable of 10, 100 and 1000Mbps for allowing you to keep up with expending network needs. The switch is plug-n-play and also fully compliant with all kinds of network protocols. -
Page 4: Physical Description
1.3 Physical Description SP659B front view Please refer to the following table for LED definition 10/100M (1-24 port) Status Operation POWER Power is on. Power is off. On/Green Connection established. Blink/Green Transmitting or receiving data. LNK/ACT No link. 10/100/1000M (25, 26 port) -
Page 5: Installation
Installation 2.1 Preparing the Site Select the site that meets the following requirements: Characteristic Requirement Temperature 32 to 104˚F (0 to 40˚C) Humidity 10% ~ 90%, non-condensing 2.2 Settling the Switch Mounted to 19-inch standard rack Locate the accessories provided in the product package. Use the rack-mount brackets and screws to install the switch into any EIA 19”... - Page 6 Step 3: Connect one end of the cable to the switch and the other end to a desired device. Step 4: Once the connections between two end-devices are made successfully, turn on the power. In making a switch interconnection, you could use any port to connect another switch with straight or crossover cable.
-
Page 7: Web-Based Interface Configuration
Web-based Interface Configuration SP659B provides a web-based interface and one RJ-45 port, allowing users to configure and manage the switch remotely from web browser. 3.1 Setting UP Connection In the web browser, enter the IP address “192.168.1.1” as SP676BA’s URL. Key in the User name and Password to pass the login step below. -
Page 8: System
To restore the default values of switch, click the “Default” Button. If you want to restart the switch, click the “Reboot” Button. To check the connection status of each port from 1 to 16, take a look at the port monitor. When the port is connected, it is green. Otherwise it’s red. 3.3 System To set up the items on the System configuration such as login ID, password, system name, and IP information. -
Page 9: Ports
S/W Version: To check up the software version. System Name: Type a switch name and replace the current switch name with a new one. IP Address: Set up the IP address of the switch. Subnet mask: Set up the Subnet mask. Gateway: Set up the gateway in this subnet. -
Page 10: Vlans
one more option 1000Full for Gigabit port 25~26 for the speed/duplex mode of ports. Bandwidth: To control the bandwidth, select the speed limitation you need in the drop list. The larger value it is, the more bandwidth you will have. Default is Disable. The Maximum value is 8Mbps. -
Page 11: Qos
Buttons Add: To add a new VLAN entry, enter the VLAN ID number for the entry, select the ports, and click “Add”. Remove: Choose the entry you want to remove and click “Remove”. Modify: Select the entry you want to change, setup new members, and click “Modify”. - Page 12 To enable the TAG BASE, To improve the network performance by applying the TAG base QoS. In vlan tag, there are 3 bits belonging to priority. According to these 3 bits, we could arrange 8 traffics as below. From 0-3, it will be the low priority. From 4-7, it will always get the high priority. 111: User Priority 7 110: User Priority 6 101: User Priority 5...
-
Page 13: Aggregation
3.7 Aggregation There are 7 trunk groups to choose. Don’t forget to click the “Apply” to save the setting. The maximum of ports for one group is 4. Caution: Because setting in VLAN, Port aggregation, and Mirror are correlative, make sure that the setting won’t influence others. -
Page 14: Console Interface Configuration
Console Interface Configuration 4.1 Setting UP Connection Connect one end of RS-232 cable to SP659B’s console port, and the other end to the serial port of a PC running a terminal emulation program, just as HyperTerminal. In addition, the operating mode of console port is:... -
Page 15: System Commands
4.2 System Commands The commands in this level are, >system System>? System level: show :Show system configuration. ip <address> <mask> <gateway> :Setup IP address, mask, gateway systemname <systemname> :Setup systemname username <username> :Change login username password <password> :Change login password restore :Restore Factory default reboot... -
Page 16: Port Commands
H/W version : 1.1 System> 4.2.3 System Systemname This command changes the name of the switch. 4.2.4 System UserName This command changes login ID. You can type “sys conf” to verify, System>username pass *** Error: Invalid parameter range System>username pass1234 System>show System Configuration: IP Address: 192.168.1.8... - Page 17 show <portnumber> :Show port configuration admin <portnumber> <enable|disable> :Port admin control flow <portnumber> <enable|disable> :Setup port flow control mode <portnumber> <mode> :Port peed and duplex control ------ Press [up] or [..] to go top menu. Port> 4.3.1 Port Configuration This command shows the configuration of the specified ports. Port>show 8 Port Configuration: Port...
-
Page 18: Vlan Commands
4.3.4 Port Mode This command sets up the modes, such as auto, 10h, 10f, 100h, 100for 1000f. Port>mode 1 100f Port>show 1-3 Port Configuration: Port Admin Mode Speed Duplex Bandwidth Flow control Link enabled 100fdx disabled disabled Down enabled Auto disabled disabled Down... - Page 19 VLAN>add 2 1-10 enable VLAN>show VLAN Configuration: VLAN Mode [Port-Based] Entries in permanent table: 1: 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26, 2: 1,2,3,4,5,6,7,8,9,10,13 VLAN> 4.4.3 VLAN Modify This command modifies member ports in specified VLAN. VLAN>modify 1 4-26 disable VLAN>show VLAN Configuration: VLAN Mode [Port-Based] Entries in permanent table: 1: 4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26 VLAN>...
-
Page 20: Trunk Commands
VLAN Configuration: VLAN Mode [Disabled] VLAN> 4.5 Trunk Commands The commands in this level are, >trunk Trunk>? Trunk level: show <trunkgroup> :Show trunkgroup setting. setup <trunkgroup> <enable|disable> :Setup specified trunkgroup. ------ Press [up] or [..] to go top menu. Trunk> 4.5.1 Trunk Configuration This command shows the aggregation groups and the aggregation mode. -
Page 21: Bandwidth Commands
Trunk Group 4: (port 7,8,19,20) : disabled Trunk Group 5: (port 9,10,21,22) : disabled Trunk Group 6: (port 11,12,23,24) : disabled Trunk Group 7: (port 25,26) : disabled Trunk> 4.6 Bandwidth Commands The commands in this level are, Bandwidth>? Bandwidth level: show <portnumber>... -
Page 22: Qos Commands
4.7 QoS Commands The commands in this level are, QoS>? QoS level: show :Show QoS configuration. mode <qos_mode> :Switch QoS mode. rate <qos_rate> :Setup QoS rate port <portnumber> <low|high> :Setup Port based QoS to specified port. ------ Press [up] or [..] to go top menu. QoS>... -
Page 23: Logout Commands
QoS rate : 1:16 Tag-based QoS QoS> 4.7.4 Port-based QoS setting This command is to set the port-based QoS configuration and simultaneously enable the port-based QoS mode. QoS>port 1 low QoS>show 1-3 QoS Configuration : QoS rate : 1:16 Port 1: Port-based QoS Port 2: Port-based QoS... -
Page 24: Specifications
Specifications IEEE standard IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3x Flow control IEEE802.1p Traffic prioritization Interface 24*10/100M RJ-45 ports 2*10/100/1000M RJ-45 ports 1*RS-232 Console port Cable Connection 10BASE-T: Category 3,4,5 UTP/STP 100BASE-TX: Category 5 UTP/STP 1000BASE-T: Category 5,5e UTP/STP Network Speed 10/100/1000Mbps Auto-negotiation Uplink Auto Uplink (Auto MDI / MDI-X)
