- Page 1 Quick Installation Guide EtherFast 10/100M Switch Model No.: SP624R http://www.micronet.info...
-
Page 2: Package Contents
Introduction Micronet SP624R 10/100M Switch provides powerful, high-performance Ethernet switch, with all ports capable of 10 and 100M auto-negotiation operation. With its intelligent addressing engine, it provides users with a wire-speed filtering and forwarding of the traffic. All ports support auto-uplink detection, so users don't have to worry about the cable type. - Page 3 Features Compliant with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX and IEEE802.3x flow control Support auto-negotiation function to automatically select optimal speed (10/100M) and mode (Full/Half Duplex) Support auto uplink, no more cross-over cable Support 802.3x flow control for full-duplex mode and back-pressure flow control for half-duplex mode Forward and filter packets at non-blocking, full wire speed Standard 19”...
-
Page 4: Physical Description

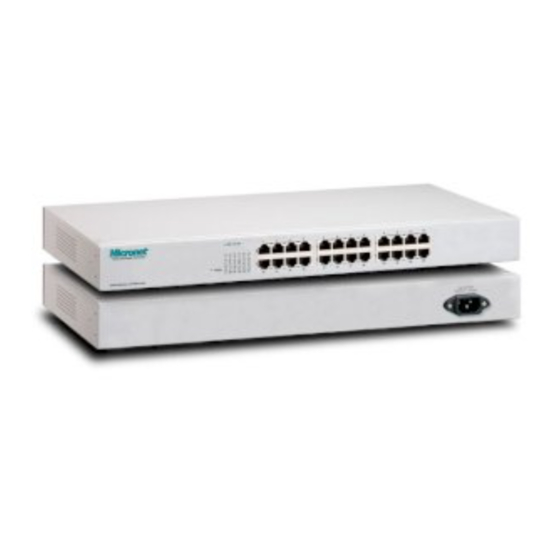

Physical Description Please refer to the following table for LED definition. Status POWER On/Green LNK/ACT Blink/Green SP624R front view Operation Power is on. Power is off. Connection established. Transmitting or receiving data. No link. -
Page 5: Installation
The switch provides up to 24 ports for 10/100BaseTX. Just connect each station to the switch by twisted-pair cable. Plug one RJ-45 connector into a RJ-45 port of the switch, and plug the other RJ-45 connector into the station’s network adapter. Power on the switch and then system is ready. -
Page 6: Specifications
Specifications Standard Interface Cable Connections Data Transfer Rate Uplink Switch Fabric Filtering/Forwarding Rate Emission Operating Temperature Operating Humidity Dimension & Weight Power Supply IEEE802.3, IEEE802.3u, IEEE802.3x, compliant 24 * 10/100M RJ-45 ports 10BASE-T: Cat. 3, 4, 5 UTP/STP 100BASE-TX: Cat. 5 UTP/STP... - Page 7 CE Mark Warning This equipment complies with the requirements relating to electromagnetic compatibility, the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date.
