E6
(EC/SC/INTC)
Instructions for Use

Advertisement

Table of Contents
loading

Summary of Contents for Jura E6

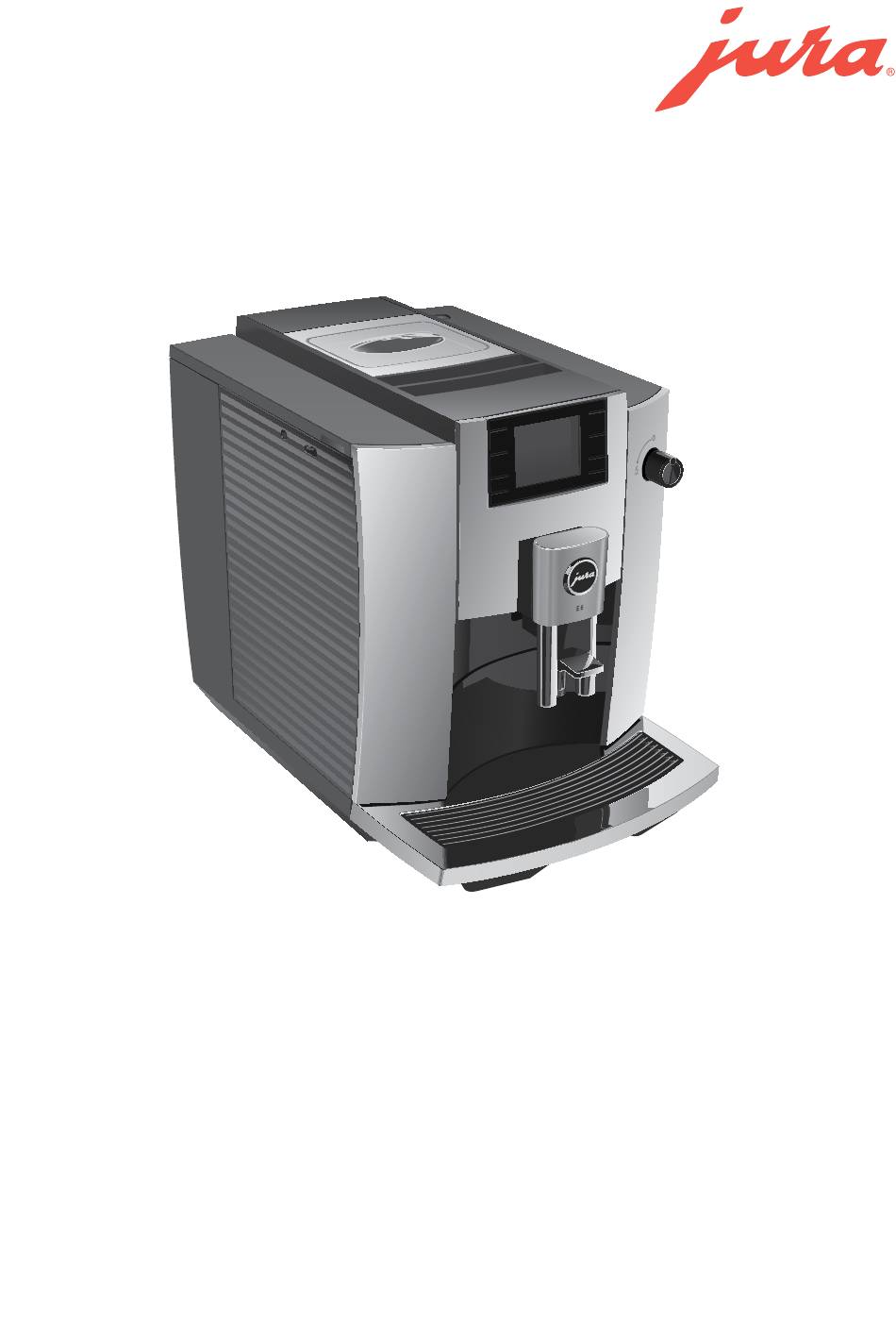

  • Page 1 (EC/SC/INTC) Instructions for Use...
  • Page 2: Table Of Contents

    Setting up the machine ������������������������������������������������������������������������������������������� Filling the bean container ����������������������������������������������������������������������������������������� Determining the water hardness �������������������������������������������������������������������������������� First-time use ��������������������������������������������������������������������������������������������������������� Managing your E6 – the JURA Cockpit ������������������������������������������������������������������������ Connecting milk ����������������������������������������������������������������������������������������������������� Connecting the machine to the WiFi network (optionally) ����������������������������������������������� 4 Preparation ����������������������������������������������������������������������������������������������������������...
  • Page 3 Cleaning the bean container ������������������������������������������������������������������������������������ 8 Display messages ������������������������������������������������������������������������������������������������� 9 Troubleshooting ��������������������������������������������������������������������������������������������������� 10 Transport and environmentally friendly disposal ������������������������������������������������������� Transport / Emptying the system ������������������������������������������������������������������������������ Disposal �������������������������������������������������������������������������������������������������������������� 11 Technical data ������������������������������������������������������������������������������������������������������ 12 Index ������������������������������������������������������������������������������������������������������������������� 13 JURA contact details / Legal information �������������������������������������������������������������������...
  • Page 4: Control Elements

    1 Control elements 1 Control elements 16 17 18...
  • Page 5 Mains cable (permanently connected or plug-in) (back of the machine) Water tank Water tank cover Bean container with aroma preservation cover Service socket for optional JURA WiFi Connect Filler funnel for ground coffee Filler funnel cover Grinder adjustment switch Container for milk system cleaning...
  • Page 6: For Your Safety

    When using the CLARIS Smart filter cartridge or a JURA WiFi Connect, wireless connections are estab- lished� Specific details on the frequency band used...
  • Page 7: Use By Children

    This could result in fatal electric shock. In the event of signs of damage, disconnect the machine from the mains� To do this, first switch the E6 off with the On/Off button Q � Only then should you remove the mains plug from the power socket�...
  • Page 8: Danger Of Electric Shock

    Protect the E6 from weather and direct sun- light� Only connect the E6 to a mains voltage corre- sponding to that stated on the rating plate� The rating plate is located on the underside� Connect the E6 directly to a domestic power socket�...
  • Page 9: Danger Of Burns, Scalding And Injury

    2 For your safety Do not put the E6 or any individual parts in the dishwasher� Before cleaning, switch the E6 off with the On/ Off button Q � Always wipe the E6 with a damp cloth rather than a wet one, and protect it from prolonged exposure to water splash�...
  • Page 10: Preparing And Using For The First Time

    3 Preparing and using for the first time Setting up the machine When setting up your E6, please note the following: Place the E6 on a horizontal surface that is not sensitive to water� Choose a spot for your E6 which protects the machine against overheating�...
  • Page 11: First-Time Use

      For machines with a plug-in mains cable: Connect the mains cable to the machine�   Insert the mains plug into a power socket�   Press the On/Off button Q to switch the E6 on� ‘Sprachauswahl’   Press the button until the desired language is displayed, e�g�...
  • Page 12: Managing Your E6 - The Jura Cockpit

    ‘Machine is rinsing’ The rinse stops automatically� Your E6 is ready for use� Managing your E6 – the JURA Cockpit You can manage your E6 with the JURA Cockpit. Press the but- ton to enter the JURA Cockpit� Symbol Meaning ‘Maintenance’...
  • Page 13: Connecting The Machine To The Wifi Network (Optionally)

    Stop preparation Press the ‘Cancel’ button Coffee tastes best served hot� A cold porcelain cup cools the bever- age – and impairs the taste� We therefore recommend prewarming the cups� You can purchase a JURA cup warmer from your specialised dealer�...
  • Page 14: Preparation With Preselection (Speciality Selection)

    E If you press your preselection briefly, the next product will be prepared according to your preselection� E If you press and hold your preselection (for 2 seconds), the preselection will be active until you switch off your E6� Espresso and coffee Example: Coffee  ...
  • Page 15: Caffè Barista And Lungo Barista

    The desired speciality coffee must be prepared within approxi- mately one minute after filling with the ground coffee� Otherwise the E6 stops the operation and is once more ready for use� All speciality coffees with ground coffee are always prepared following the same model�...
  • Page 16: Hot Water

    4 Preparation   Open the cover of the filler funnel for ground coffee�   Place one level measuring spoon of ground coffee into the filler funnel�   Close the cover of the filler funnel�   Press the ‘Next’ button� The preset amount of water for espresso flows into the cup� Hot water To obtain a perfect water flow, use the hot-water nozzle supplied�...
  • Page 17: Adjusting The Product Settings

    4 Preparation   Press the ‘Espresso’ button to start preparation�   Turn the grinder adjustment switch to the desired position while the grinder is running� The preset amount of water flows into the cup�   Close the filler funnel cover� Adjusting the product Press a product button on the start screen for about two seconds settings...
  • Page 18: Filling The Water Tank

      Fill the water tank with fresh, cold water and reinsert the tank�   Close the water tank cover� Maintenance actions Optimal coffee quality depends on many factors� One important prerequisite is regular maintenance of your E6� Carry out the follow- ing steps: Maintenance action Daily...
  • Page 19: Machine Settings

    ‘Number of Set the number of products on the start screen (two or four) products’ ‘Factory setting’ Reset your E6 to factory settings (the machine then switches off) ‘Version’ View software version ‘Connections’ Wirelessly connect your E6 with your JURA app (J�O�E�...
  • Page 20: Maintenance

    Press the button that corresponds to the message to go straight to the maintenance programme� Maintenance programmes that are due imminently are indicated on your E6 by means of a bar display within the message� Carry out each maintenance programme when you are prompted to do so�...
  • Page 21: Cleaning The Fine Foam Frother

    If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water�   Use only original JURA maintenance products� E JURA milk system cleaner is available from specialised dealers� E Use the container supplied for milk system cleaning�...
  • Page 22: Dismantling And Rinsing The Fine Foam Frother

    Once the filter cartridge stops working (depending on the water hardness setting), the E6 will prompt you to change the filter� E Your E6 no longer has to be descaled if you are using the CLARIS Smart filter cartridge� E CLARIS Smart filter cartridges are available from specialised dealers�...
  • Page 23: Cleaning The Machine

    The filter is rinsed� ‘Close switch’   Turn the switch to the ° position� Cleaning the machine After 180 preparations or 80 switch-on rinses, the E6 will prompt you to clean it� CAUTION If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water�...
  • Page 24: Descaling The Machine

      Empty the drip tray and coffee grounds container and put them back into the machine� Descaling the machine The E6 builds up deposits of limescale over time and automatically prompts you to descale it when necessary� The degree of calcifica- tion depends on the hardness of your water�...
  • Page 25 ‘Agent in tank’   Remove and empty the water tank�   Completely dissolve 3 JURA descaling tablets in a receptacle holding 500 ml of water� This may take several minutes�   Pour the solution into the empty water tank and insert it into the machine�...
  • Page 26: Descaling The Water Tank

      Remove the water tank�   If you use a CLARIS Smart filter cartridge, remove this�   Completely fill the water tank and dissolve 3 JURA descaling tab- lets in it�   Leave the water tank with the descaling solution for several hours (e�g�...
  • Page 27: Display Messages

    Perform descaling (see chapter 7 ‘Maintenance – you to descale it� Descaling the machine ’)� ‘Rinse the milk The E6 prompts you to Perform milk system rinsing (see chapter 7 system’ rinse the milk system� ‘Maintenance – Rinsing the milk system’)�...
  • Page 28: Troubleshooting

    Grinder is making a very There are foreign objects in Contact customer support in your loud noise� the grinder� country (see chapter 13 ‘JURA contact details / Legal information’)� ‘ERROR 2’ ‘ERROR 5’ If the machine has been Warm the machine at room tempera- is displayed�...
  • Page 29: Transport And Environmentally Friendly Disposal

    Legal information’)� 10 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your E6� It should be used to protect the system machine during transport� In order to protect the E6 from frost during transport, the system must be emptied�...
  • Page 30: Technical Data

    Interchangeable milk spout CLARIS filter cartridge Smart Frequency band 13�56 MHz (RFID technology) Max� transmission power < 1 mW JURA WiFi Connect Frequency band 2�4 GHz Max� transmission power < 100 mW Information for testers (repeat test in accordance with DIN VDE...
  • Page 31 12 Index 12 Index Addresses 36 Damage Adjusting the product settings 17 Preventing damage 7 Aroma preservation cover What to do in the event of damage 7 Bean container with aroma preservation Declaration of Conformity 36 cover 5 Descaling Machine 24 Water tank 26 Bean container Display 5...
  • Page 32 Insert for drip tray 5 Instant coffee Machine 20 Ground coffee 15 Interchangeable milk spout 30 Safety information 6 Service socket 5 Setting up JURA Setting up the machine 10 Contact details 36 Speciality Selection Extra Shot 14 Macchiato 14 Ground coffee 14 Machine...
  • Page 36 2014/30/EU – Electromagnetic Compatibility 2009/125/EC – Ecodesign Directive 2011/65/EU – RoHS Directive 2014/53/EU – Wireless Voltage Directive A detailed EU Declaration of Conformity for your E6 can be found at jura.com/conformity. Technical changes We reserve the right to make technical changes� The diagrams used in these instructions for use are for illustration purposes only and do not represent the original colours of the machine�...
