E6/E60 Instructions for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jura E6

Summary of Contents for Jura E6

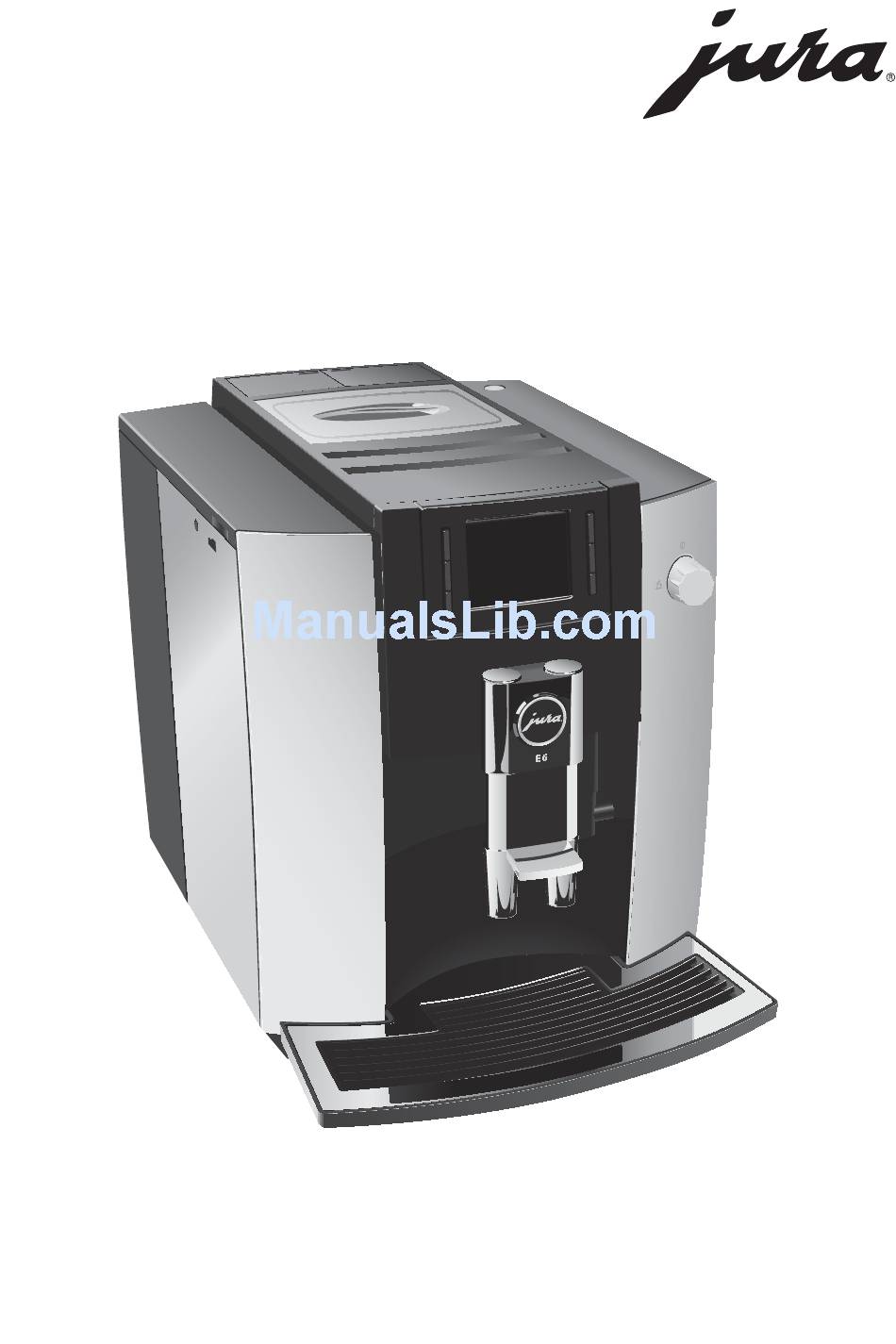

  • Page 1 E6/E60 Instructions for Use...

  • Page 2: Table Of Contents

    Important information Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the bean container ...........................10 Determining the water hardness ......................10 First-time use ..............................11 Connecting milk ............................14...
  • Page 3 CAUTION draws your attention to potential damage to the machine. Symbols used Prompt to take action. This symbol means that you are being prompted to perform some action. Information and tips to make it even easier to use your JURA. ‘Coffee’ Display...

  • Page 4: Control Elements

    Control elements Control elements Cover of filler funnel for cleaning tablet Cover cap for grinder adjustment switch Filler funnel for cleaning tablet Grinder adjustment switch On/Off button Q Bean container with aroma preservation cover Fine foam frother Water tank cover Height-adjustable coffee spout Water tank Cup grille...
  • Page 5 Control elements Display Switch for hot water and steam Multi-function buttons (button function preparation depends on what is shown in the display)

  • Page 6: Important Information

    The machine is designed and intended for private domestic use. It should only be used for coffee preparation and to heat milk and water. Use for any other purpose will be deemed improper. JURA Elektroapparate AG cannot accept any responsibil- ity for the consequences of improper use.
  • Page 7 Important information which is available directly from JURA or from authorised JURA service centres. Make sure that the JURA and the mains cable are not located close to hot surfaces. Be careful to ensure that the mains cable is not trapped and does not rub against sharp edges.
  • Page 8 Do not immerse the JURA, mains cable or con- nections in water. Do not put the JURA or any individual parts in the dishwasher. Before cleaning, switch your JURA off with the On/Off button.
  • Page 9 Important information Children aged 8 and over may only operate the machine without supervision if they have been instructed in how to use it safely. Chil- dren must be able to recognise and under- stand the potential dangers arising from incor- rect use.

  • Page 10: Preparing And Using For The First Time

    Setting up the machine When setting up your JURA, please note the following: Place the JURA on a horizontal surface that is not sensitive to water. Choose a spot for your JURA which protects the machine against overheating.

  • Page 11: First-Time Use

    First-time use When using the machine for the first time, you can choose whether you want to operate JURA with or without the CLARIS Smart filter cartridge. If the water hardness is 10 °dH or more, we recommend using the filter cartridge.
  • Page 12 1 Preparing and using for the first time E Now decide whether you want to operate your JURA with or without a CLARIS Smart filter cartridge. Operation with filter cartridge: go straight to the next section (see Chapter 1 ‘Preparing and using for the first time – First-time use with filter cartridge activation’).
  • Page 13 ‘Machine is rinsing’, the system is rinsed. The rinse stops automatically. Your JURA is ready for use. E The start screen shows the products you can prepare. E If the filter is active, this is indicated by a blue filter symbol at the bottom of the display.

  • Page 14: Connecting Milk

    1 Preparing and using for the first time Connecting milk Your JURA creates fine, creamy, feather-light milk foam with a per- fect consistency. The most important requirement for frothing milk is a milk temperature of 4–8 °C. We would therefore recommend using a milk cooler or a vacuum milk container.

  • Page 15: Preparation

    – and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialised dealer. You can make permanent settings for all products in programming mode (see Chapter 4 ‘Permanent settings in programming mode –...

  • Page 16: Two Espressi And Two Coffees

    Preparation stops automatically. Your JURA is once more ready for use. Cappuccino Your JURA can prepare a cappuccino without the cup having to be moved. Precondition: The start screen is displayed. Milk is connected to the fine foam frother T ...

  • Page 17: Milk Foam

    ‘Switch close’ T  Turn the switch to the ° position. Your JURA is once more ready for use. To ensure that the fine foam frother always works properly, you must clean it daily when you have been preparing milk (see Chap- ter 5 ‘Maintenance –...

  • Page 18: Adjusting The Grinder

    T  Place a cup under the hot-water nozzle. T  Turn the switch to the x position. ‘Hot water’, the preset amount of water flows into the cup. Preparation stops automatically. ‘Switch close’ T  Turn the switch to the ° position. Your JURA is once more ready for use.

  • Page 19: Daily Operation

    Switching on the machine T  Place a receptacle under the coffee spout.     T  Press the On/Off button Q to switch the JURA on. ‘Welcome to JURA’ ‘Machine is heating’ ‘Machine is rinsing’, the system is rinsed. The rinse stops automatically.

  • Page 20: Regular Maintenance

    Traces of milk and coffee may stick to the top and bottom of the cup grille. If this happens, clean the cup grille. Switching off the When the JURA is switched off, the system is automatically rinsed if machine a speciality coffee has been prepared. If milk has been prepared, you will also be prompted to clean the milk system.
  • Page 21 If milk has been prepared but you have not started milk system cleaning, the milk system is rinsed first (‘Milk system is being rinsed’). ‘Machine is rinsing’, the system rinses itself. The operation stops automatically. Your JURA is switched off.

  • Page 22: Permanent Settings In Programming Mode

    ‘4/4’ ‘Choose language’ T Select your language. ‘Switch off after’ T Set the time after which the JURA should switch off automatically. ‘Units’ T Select the unit for the amount of water. ‘Water hardness’ T Adjust the water hardness.

  • Page 23: Automatic Switch-Off

    The start screen is displayed. Automatic switch-off By instructing your JURA to automatically switch itself off, you can cut down your energy consumption. If this function is activated, your JURA switches off automatically after the preset time following the last action on the machine.

  • Page 24: Setting The Water Hardness

    ‘’ button to exit programming mode. The start screen is displayed. Setting the water The harder the water is, the more frequently the JURA needs to be hardness descaled. It is therefore important to set the water hardness accu- rately.

  • Page 25: Language

    The start screen is displayed. Language In this programme item you can set the language used by your JURA. Example: Proceed as follows to change the language from ‘English’ to ‘Deutsch’. Precondition: The start screen is displayed.

  • Page 26: Maintenance

    The operation stops automatically. The start screen is displayed. Rinsing the fine foam After each milk preparation, the JURA prompts you to perform a milk frother system rinse. Precondition: ‘Rinse the milk system’...

  • Page 27: Cleaning The Fine Foam Frother

    If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water. T  Use only original JURA maintenance products. E JURA milk system cleaner is available from specialised dealers. Precondition: The start screen is displayed. T  Press the ‘ P ’...

  • Page 28: Dismantling And Rinsing The Fine Foam Frother

    © Inserting the filter Your JURA no longer has to be descaled if you are using the CLARIS Smart filter cartridge. If you did not insert the filter cartridge the first time you used the machine, you can do this now as follows.

  • Page 29: Changing The Filter

    E Once the filter cartridge stops working (depending on the Changing the filter water hardness setting), the JURA will prompt you to change the filter. E CLARIS Smart filter cartridges are available from specialised dealers.

  • Page 30: Cleaning The Machine

    T  Turn the switch to the ° position. The start screen is displayed. Cleaning the machine After 180 preparations or 80 switch-on rinses, the JURA will prompt you to clean it. CAUTION If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water.

  • Page 31: Descaling The Machine

    Cleaning is now complete. The start screen is displayed. Descaling the machine The JURA builds up deposits of limescale over time and automati- cally prompts you to descale it when necessary. The degree of calci- fication depends on the hardness of your water.
  • Page 32 ‘Agent in tank’ T  Remove and empty the water tank. T  Completely dissolve the contents of one blister (3 JURA des- caling tablets) in a receptacle holding 500 ml of lukewarm water. This may take several minutes.

  • Page 33: Cleaning The Bean Container

    5 Maintenance T  Turn the switch to the ° position. ‘Machine is being descaled’, the descaling operation is continued. The operation is interrupted, ‘Empty drip tray’. T  Empty the drip tray and coffee grounds container and put them back into the machine. ‘Fill water tank’...

  • Page 34: Descaling The Water Tank

    T  Remove the water tank. T  If you use a CLARIS Smart filter cartridge, remove this. T  Completely fill the water tank and dissolve 3 JURA descaling tablets in it. T  Leave the water tank with the descaling solution for several hours (e.g.

  • Page 35: Display Messages

    ‘Preparing and using for the first time – coffees, but you can prepare hot Filling the bean container’). water and milk. ‘Rinse the milk The JURA requests a milk system T Perform milk system rinsing (see system’ rinse. Chapter 5 ‘Maintenance – Rinsing the fine foam frother’).

  • Page 36: Troubleshooting

    Grinder is making a very There are foreign objects in the T Contact customer support in loud noise. grinder. your country (see Chapter 11 ‘JURA contact details / Legal information’). ‘ERROR 2’ ‘ERROR 5’ If the machine has been T Warm the machine at room displayed.
  • Page 37 Off button Q. Contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).

  • Page 38: Transport And Environmentally Friendly Disposal

    8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your JURA. It should be used to protect the system machine during transport. In order to protect the JURA from frost during transport, the system must be emptied.

  • Page 39: Technical Data

    9 Technical data 9 Technical data Voltage 220–240 V ~, 50 Hz Power 1450 W Conformity mark Pump pressure static, max. 15 bar Holding capacity of water tank (without 1.9 l filter) Holding capacity of bean container 280 g Holding capacity of coffee grounds max. 16 portions container Cable length approx.

  • Page 40: Index

    10 Index 10 Index Addresses 44 Descaling Adjusting the product settings 22 Machine 31 Aroma preservation cover Water tank 34 Bean container with aroma preservation Display 5 cover 4 Display messages 35 Automatic switch-off 23 Disposal 38 Double product 16 Drip tray 4 Bean container Bean container with aroma preservation...
  • Page 41 10 Index JURA Regular maintenance 20 Rinses Contact details 44 Cappuccino frother rinsing 26 Internet 10 Rinsing Fine foam frother 26 Language 25 Machine 26 Machine Safety 6 Cleaning 30 Safety information 6 Descaling 31 Settings Regular maintenance 20 Permanent settings in programming...

  • Page 44: Jura Contact Details / Legal Information

    J72123/E6-E60/en/201503 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 @ You will find additional contact details for your country at www.jura.com. Directives The machine complies with the following directives: 2006/95/EC –...
