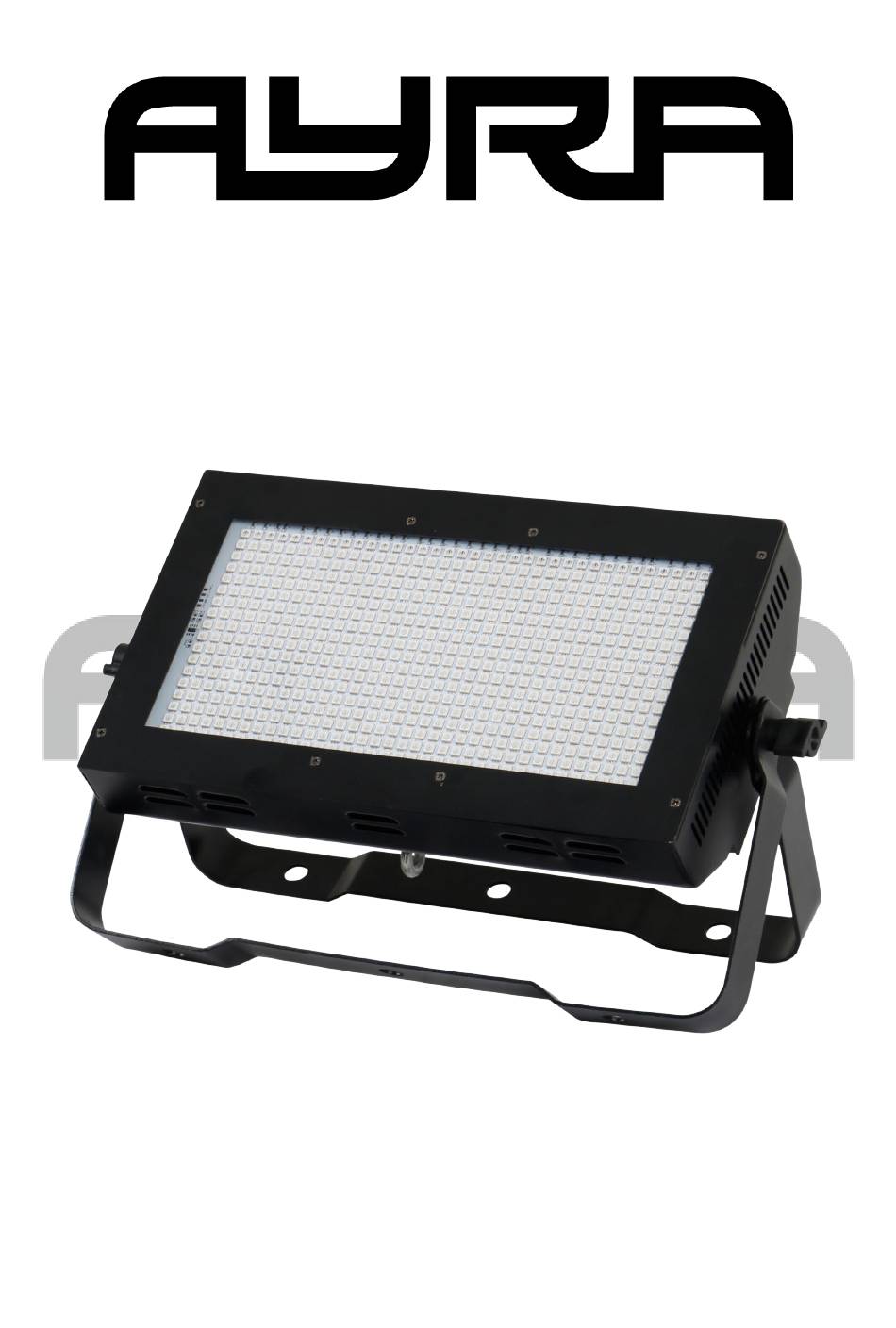

- Page 1 Armageddon 648 RGBW LED LED Strobe / Wash Effect User Manual The information included in this user manual is subject to change at any time and without notification: Version: 1.0 Date & Author Initials: 18-11-2023 RV Revision Date & Author Initials: -...
- Page 2 Before unpacking the box, we recommend reading this user manual thoroughly to ensure that you are familiar with all of the features and functions that the Ayra Armageddon 648 RGBW LED has to offer. When unpacking the box, please make sure that all of the components and accessories listed below have been included.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to prevent any danger of electric shocks! WARNING! This device must only be connected to a power socket that matches the specified mains voltage. If this device is connected to a power source with a different voltage, it may cause permanent damage or lead to harmful effects including fire hazards or electric shocks. - Page 4 - If the device is not operated in the manner described in this user manual, damages or even injuries could occur. Ayra can not be held responsible for any injuries or damages that occur as a result of improper use of this device.
- Page 5 Indoor use only: This device has been specifically designed for use indoors. Never look at the light source when it’s active: To avoid eye injuries, never look directly into the light beam. Contact: Ayra Professional Lighting Products Verrijn Stuartweg 18 4462 GE Goes The Netherlands This is a correspondence address only.
-
Page 6: Device Overview
Device Overview 1. Light Output 2. Double Mounting Bracket / Floor Stand 3. Safety Eyelet 4. Microphone 5. TFT Display with Menu Navigation Controls 6. 3-Pin XLR DMX Input 7. 3-Pin XLR DMX Output 8. Power Input via Blue Locking Power Plug 9. - Page 7 If a DMX signal is detected, the device will automatically activate DMX mode and display the address that was last used. If your Ayra Armageddon 648 RGBW is being used for the first time, this will be DMX address 001. The DMX address can be changed via the display and the menu navigation buttons.
- Page 8 Below, the various functions are described in more detail. DMX Address: This function sets the DMX start address. If the channel is set to 001, the device will respond to DMX channel 1. If you set the device to channel 003, it will respond from DMX channel 3, and so on. Channel mode: The device offers various DMX channel modes.
- Page 9 Operating Modes A clear explanation of the differences between all available Operation Modes and how they are supported by the menu functions listed above can be found below. Auto: In Auto Mode, you can select one of the Operation Modes in which the device is not dependent on external factors such as DMX signals, master signals or sound.
- Page 10 Blue dimmer 0-100% 000-255 White dimmer 0-100% 000-255 CH7-1 Function Value Master dimmer 0-100% 000-255 LED ON / strobe 000-005 LED ON 006-010 LED OFF 011-033 Strobe, slow on / slow off, slow – fast 034-056 Strobe, slow on / fast off, slow – fast 057-079 Strobe, fast on / slow off, slow –...
- Page 11 057-079 Strobe, fast on / slow off, slow – fast 080-102 Random strobe, slow – fast 103-127 Lightning strobe 128-250 Normal strobe, slow – fast 251-255 LED ON Red dimmer 0-100% 000-255 Green dimmer 0-100% 000-255 Blue dimmer 0-100% 000-255 White dimmer 0-100% 000-255 Colour macro / Colour preset...
-
Page 12: Installation And Connection Instructions
Cooling The Armageddon 648 RGBW LED is cooled by a built-in fan. The fan is activated when the device reaches a certain temperature. Make sure the fans and vents are not blocked and regularly check that they are functioning normally. Be aware that should the fans becomes clogged with substances like dust, smoke and moisture, this may impair cooling performance and shorten the life-span of the device. - Page 13 Cleaning and Maintenance Clean the exterior of this device on a monthly basis with a dry, or slightly damp microfibre cloth. Ensure that the device is unplugged before cleaning it. Check that all screws are intact and secured, and tighten or replace them where needed. Also check all metal parts of the device for any signs of corrosion.
- Page 14 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 15 Problem Possible Cause Solution DMX signal chain terminator or connect a booster after maximum 32 fixtures. The device is not reacting propely Incorrect DMX channel mode Check that the correct DMX to DMX commands channel mode is set The operation mode can not be The device is in Slave mode If the device is in Slave mode, it changed...
-
Page 16: Technical Specifications
Technical Specifications - Powerful LED flood projector with RGBW LEDs - 648x 5050 SMD RGB LEDs - Can serve as a floodlight, blinder, uplighter and more - All-metal housing - Temperature-controlled cooling - Compact design - 1.8” TFT display with menu navigation buttons - Various operation modes - Auto Fade / Auto Jump with adjustable speed and optional strobe effect - Colour macros with optional strobe effect...
