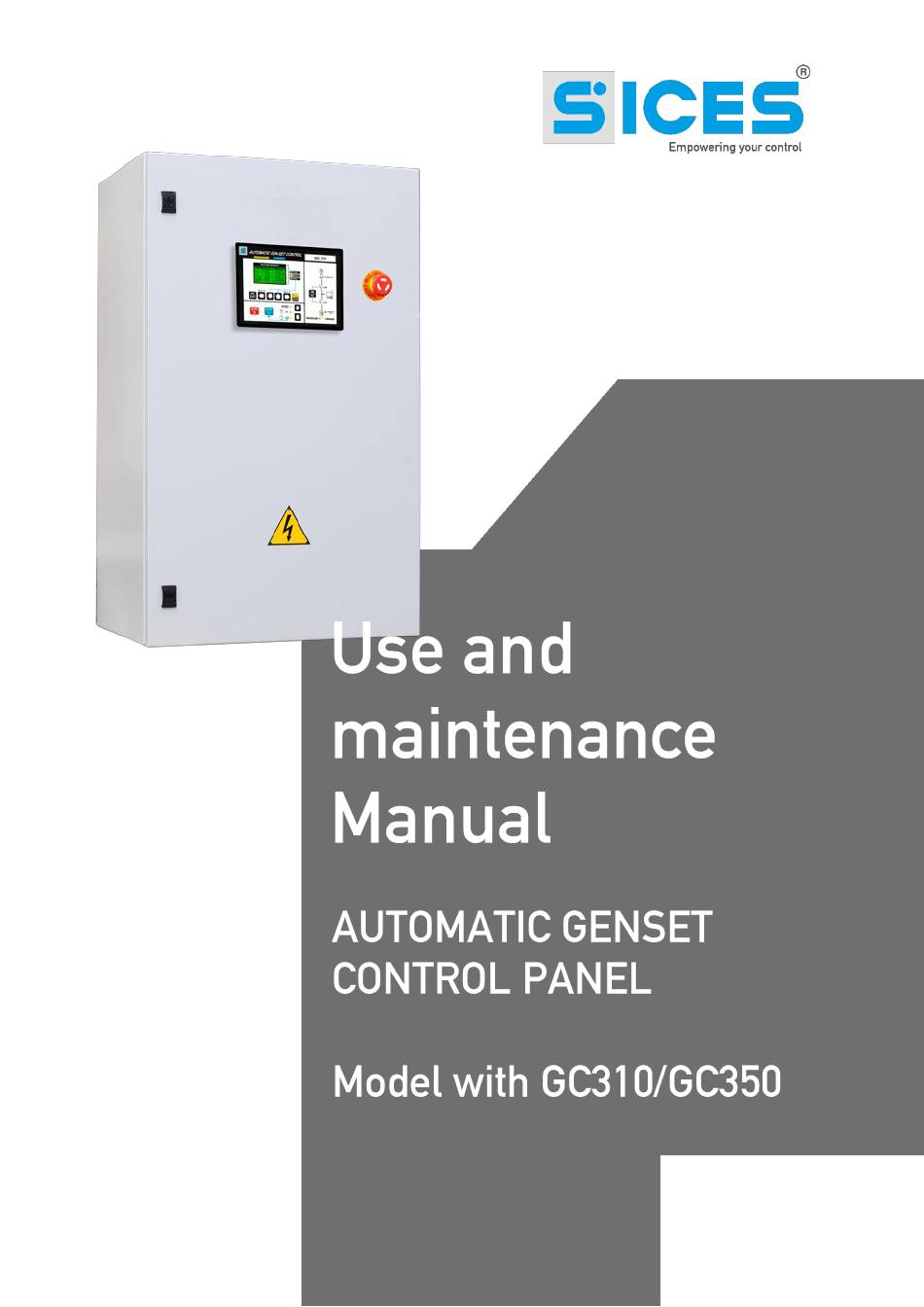

Filename: Use and maintenance manual

Rev. 00 Date: 23/09/2014

Product: AUTOMATIC GENSET

CONTROL PANEL with GC310/GC350

Need help?

Do you have a question about the GC310 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sices GC310

Page 1 Filename: Use and maintenance manual Rev. 00 Date: 23/09/2014 Product: AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 2 THIS MANUAL IS TO BE CONSIDERED AN ATTACHMENT OF THE GC310/GC350 CONTROLLER MANUAL. INDEX 1. Introduction to the manual (see also GC310/GC350 manual) ........3 2. General conditions of use (see also GC310/GC350 manual) ........4 3. Instructions for the installation (see also GC310/GC350 manual) ......5 3.1 Safety distances .......................
Page 3 Control Panel. This will guarantee better duration results and efficiency. In case of any doubts or questions, please do not hesitate to contact SICES technicians for clarifications. The information contained in this Manual are updated to the printing stage, but they may be modified without notice in compliance with our aims of continuous development and improvement of products.
Page 4 Engineer Department for the necessary evaluations. The Control Panel must only be intended for the purpose to which it has been designed. Any other use is considered improper and therefore dangerous. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 5 If any doubt persists after reading the following paragraphs and attachments, please do not hesitate to contact SICES Technical Service. All actions must always be performed complying with safety regulations.
Page 6 Note: We recommend the use of proper devices (overvoltage arresters) in order to protect the circuits directly supplied by the Mains from overvoltage due to atmospheric discharges or particular events. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 7 SCREW TIGHTENING TORQUE (MAX) TERMINAL BOARD (35÷80kVA) MOTORIZED SWITCH (100÷1580kVA) 16mm 35mm 2 Nm 2.5 Nm 20 Nm 35 Nm 65 Nm 160 Nm 100 Nm Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 8 SCREW TIGHTENING TORQUE (MAX) TERMINAL BOARD (35÷80kVA) ABB AUTOMATIC SWITCH (100÷1580kVA) 16mm 35mm T5 (200-250kVA) T5 (300-400kVA) 2 Nm 2.5 Nm 20 Nm 35 Nm 65 Nm Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 9 (thermostat contact that closes with min. engine temperature) that commands the insertion. The circuit supply is resulted from the mains line, deactivating it automatically when the genset begins to work (in case of mains failure). Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 10 This system ensures the insertion of one contactor at a time, in order to avoid to supply the load by both sources (mains/genset). When the contactor is excited by the mechanic part, as shown by the arrow, it comes back. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 11 BY THE GENSET TWO SOURCES WARNING: check the cyclic direction of the phases MAINS and GROUP before supplying the LOAD. The reverse cyclic direction can cause serious damages to the machinery. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 12 With inserted lock, stopping the supply, the electric operation is inhibited too. The genset control panel must be connected to receive MAINS and GENSET voltage values, keeping GC310/GC350 in AUTO mode, so that the switch can close automatically on one of the two sources and supply the plant.
Page 13 All genset control logics are carried out by the GC310/GC350 controller with microprocessor: Set the GC310/GC350 controller in AUTO mode, using the selection arrows. The operation cycle is composed as follows: In case of mains failure or trespassing of the thresholds values set...
Page 14 This operation cycle is managed with times and thresholds settable in the GC310/GC350 controller. All these values are changeable by the user and can be consulted in the controller manual. Note: Please remember that with Mains live and GC310/GC350 in OFF mode, the switch is commanded to close always in MAINS position.
Page 15 Set the GC310/GC350 controller in TEST mode, using the selection arrows. It allows the automatic start of the genset for the periodic test, enabling the protections. The switch Mains/Genset is excluded. Any possible mains failure, with lighting of the LED connected to it, causes the immediate genset supply.
Page 16 STEEL SHEET BOX (35÷53kVA) Auxiliaries zone Power zone Terminal board Earthing bar interface Power cables Terminal Power cables Terminal Power cables connection - board connection - board connection - XL-LOAD XG-GENSET XR-MAINS Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 17 STEEL SHEET BOX (80kVA) Terminal Auxiliaries board zone Terminal board Power zone Terminal board Earthing bar interface Power cables Power cables Power cables connection - connection - connection - XL-LOAD XR-MAINS XG-GENSET Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 18 Bars protection Interface cable return duct Earthing bar Power zone Power cables Power cables Power cables connection connection connection bars - bars - bars - XL-LOAD XR-MAINS XG-GENSET (front) (back) Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 19 Power cables connection bars - XL-LOAD Interface cable return duct Power zone Earthing bar Protection bars Power cables Power cables connection connection bars - bars - XG-GENSET XR-MAINS (front) (back) Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 20 Power zone Earthing bar Power cables Power cables Power cables connection connection connection bars - bars - bars - XL-LOAD XR-MAINS XG-GENSET (front) (back) Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 21 (size 100÷1580kVA). The auxiliary XA and XM terminal board is the same for the two types. SIZE 35÷80kVA MAINS GENSET LOAD MAINS LINE GENSET LINE LOAD LINE MAINS GENSET LOAD Fig.1 – Connection of the power cables on the terminal board. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 22 SIZE 100KVA - 500÷15800kVA MAINS LOAD GENSET MAINS LINE LOAD LINE GENSET LINE MAINS LOAD GENSET Fig.2 – Connection of the power cables on the bars. KBG and QG horizontally. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 23 SIZE 200÷400kVA LOAD MAINS GENSET LOAD LINE MAINS LINE GENSET LINE LOAD MAINS GENSET Fig.3 – Connection of the power cables on the bars. KBG and QG vertically. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 24 ENGINE FUEL START TEMPERATURE EXCITATION TEMPERATURE PREHEATING LEVEL NEGATIVE EXTERNAL GENSET FUEL LOW OIL FUEL PRESSURE EMERGENCY BATTERY MAGNET VALVE TEMPERATURE RESERVE MEASURE Fig.5 – XM and XA terminal board. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 25 The lack of respect for the above recommendations may compromise the panel safety and it is immediate decay of the warranty. Any change made to the panel will be responsibility of the executor of the change that then becomes the manufacturer. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 26 At the end of its life cycle or in case of demolition, the equipment has to be decommissioned according to the regulations in force in the Country of use. It is also required that the identification labels and any other related document are appropriately destroyed. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 27  Lack from the Line or from the Genset caused contactor closed is missing by the interruption on the distribution wires: check distribution wires connection points. Opening of the Genset protection breaker  Earthing protection intervention. through coil. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 28 In OFF mode, the display goes back to the last active page at the moment before the alarm and the visual signalling turns off. Afterwards, set the controller in AUTO mode again. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 29 In order to shorten the intervention time of the SICES Technical Assistance (SAT), please follow the procedure below shown, providing the required data so as to allow an easy problem solving. Try to identify the origin of the fault by consulting the table above;...
Page 30 CA046 1400 CA047 1400 CA048 1900 1200 CA049 1900 1200 CA050 800/880 1900 1200 CA051 1000 1900 1200 500÷1580kVA CA052 1250 2100 1600 1000 CA053 1580 2100 1600 1000 35÷400kVA Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 31 Pay attention not to tighten the screws excessively in order to avoid the damage of the hook slots on the device case. Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350...
Page 33 This document is property of SICES s.r.l.. All rights reserved. SICES s.r.l. reserves the right to modify this document without prior notice. SICES made efforts to ensure that the information herein provided are correct; by the way SICES does not take charge for the incorrect use of these information.
