AURATON Auriga
User manual ver. 20211225
The document presents collected information on safety, assembly and use of AURATON Auriga.
24-Hour hard-wired temperature regulator

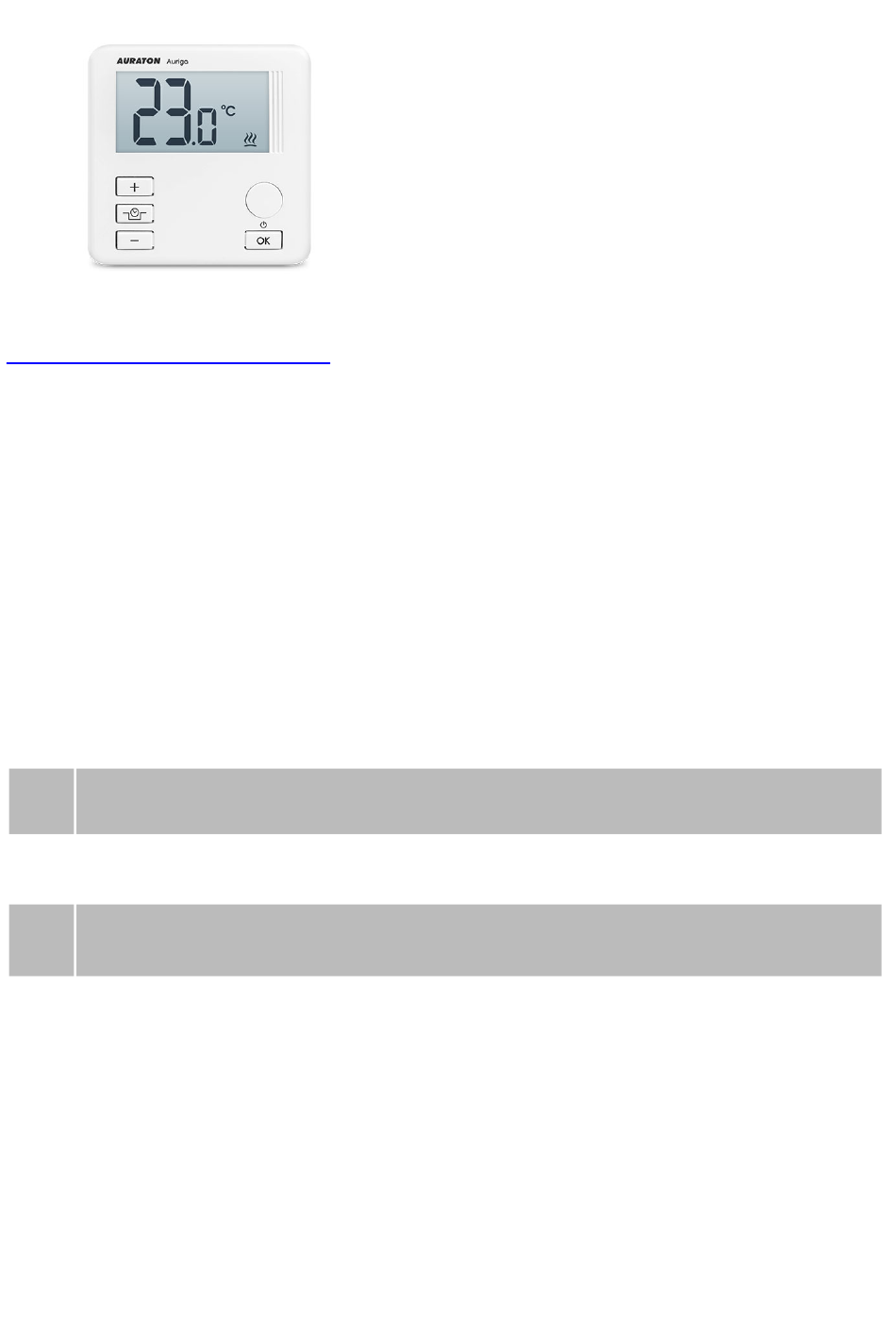

AURATON Auriga is a daily hard-wire temperature regulator designed to work with gas or electric
heating device.
U
"FrostGuard" function
to protect against freezing of the room.
&
Possibility of temporarily lowering the programmed temperature
For a period of 6 hours, every day, at the same time.
Backlit LCD display
LCD
The backlit display makes it possible to monitor the device's operation even in poorly lit
rooms.
Description of AURATON Auriga
Advertisement
Table of Contents
Related Manuals for AURATON Auriga
Summary of Contents for AURATON Auriga
- Page 1 User manual ver. 20211225 The document presents collected information on safety, assembly and use of AURATON Auriga. 24-Hour hard-wired temperature regulator AURATON Auriga is a daily hard-wire temperature regulator designed to work with gas or electric heating device. “FrostGuard” function to protect against freezing of the room.
- Page 2 The front of the housing features a backlit LCD display and four function buttons. LCD display Approval or on/off button AURATON Auriga Temperature decrease button Temporary temperature reduction mode buttons Temperature increase button • hold – on/off AURATON Auriga ( • short pressing – confirms the temperature setting (...
- Page 3 Display Temperature In normal operation, AURATON Auriga displays the temperature of the room in which it is currently installed. Battery depletion ( An indicator visible when the minimum acceptable battery voltage is exceeded. Replace the batteries as soon as possible.
- Page 4 Choosing the right location for AURATON Auriga The correct operation of AURATON Auriga is largely influenced by its location. Using the device in a place with no air circulation or a place with direct sunlight may result in incorrect temperature control.
- Page 5 To connect the wires, remove the housing as shown below: Wire terminals are located on the rear panel of AURATON Auriga, under the plastic cover.
-
Page 6: Battery Installation/Replacement
Battery installation/replacement The battery socket is located inside the regulator on the front of the housing. To install the batteries, remove the regulator housing as shown in section “Connecting the cables to AURATON Auriga”. NOTE: To power AURATON regulators, we recommend alkaline batteries. Do not use... - Page 7 “rechargeable batteries” because the voltage rating is too low. 1 – battery socket 2 x AAA 1.5V Insert two AAA 1.5V batteries into the battery socket, making sure the battery terminals are aligned correctly. NOTE: After replacing the battery and assembling the cover, we recommend pressing the button twice to stabilise the relay operation.
- Page 8 In order to fix AURATON Auriga regulator to the wall, it is necessary yo: Remove the housing (in the way shown in chapter “Connecting the cables to AURATON Auriga”). Drill two holes of 6 mm diameter in the wall (the spacing of the holes should be determined by the rear part of the regulator housing).
- Page 9 Pin connector socket or the place where pins contact the board NOTE: When assembling the housing, make sure that the connection “pins” are not bent and are in place on the relay board. This is crucial for the proper operation of AURATON Auriga. First start-up of AURATON Auriga...
-
Page 10: Temperature Setting
When the batteries are properly inserted in the sockets, the LCD display will show all segments for a second (display test) followed by the software version number. After a moment, the current room temperature is automatically displayed. AURATON Auriga is ready to work. Temperature setting... - Page 11 ) and the hour indicator (6:h) appear on the display. AURATON Auriga enters the “temporary temperature lowering ” mode, and every day at the same time it will reduce the temperature programmed in the normal mode by 3 °C for a period...
- Page 12 AURATON Auriga is equipped with a special “FrostGuard” function protecting the room against possible freezing. This function is activated when AURATON Auriga is switched off.. With AURATON Auriga switched off, when the temperature in the room drops to 2 °C, Fr ( ) and symbols appear on the display, and the relay switches on.
- Page 13 HI 2 – ±0,2 °C (factory set) HI 4 – ±0,4 °C HI P – PWM mode of operation (chapter “PWM mode of operation”). Confirm the selection with the button. AURATON Aquila R will return to normal operation. PWM working mode (Pulse-Width Modulation)
- Page 14 fluctuations. AURATON Auriga checks the times of temperature rise and times of temperature fall. Knowing these values, the AURATON Auriga switches the heating device on and off in such cycles as to maintain the temperature as close to the setpoint value as possible.
- Page 15 After the heating device is switched off, the relay will be switched on again no sooner than after 90 seconds.. Notes AURATON Auriga can be switched on or off at any time by momentarily holding down the button. The first press of any function button always turns on the backlighting, and only the next press calls up the button function.
-
Page 16: Cleaning And Maintenance
Heating device, np. e.g. gas furnace Electric heating device (MAX 230 V AC, 16 A) Cleaning and maintenance Clean the outside of the device with a dry cloth. Do not use solvents (such as benzene, thinner... -
Page 17: Technical Specifications
or alcohol). Do not touch the device with wet hands. It may result in an electric shock or serious damage to the device. Do not expose the device to excessive smoke or dust. Do not touch the screen with a sharp object. Avoid contact of the device with liquids or moisture. - Page 18 Contact and address of the manufacturer LARS, ul. Świerkowa 14 64-320 Niepruszewo www.auraton.pl Download User manual Declaration of conformity...
