Pro-Form 700 User Manual page 9

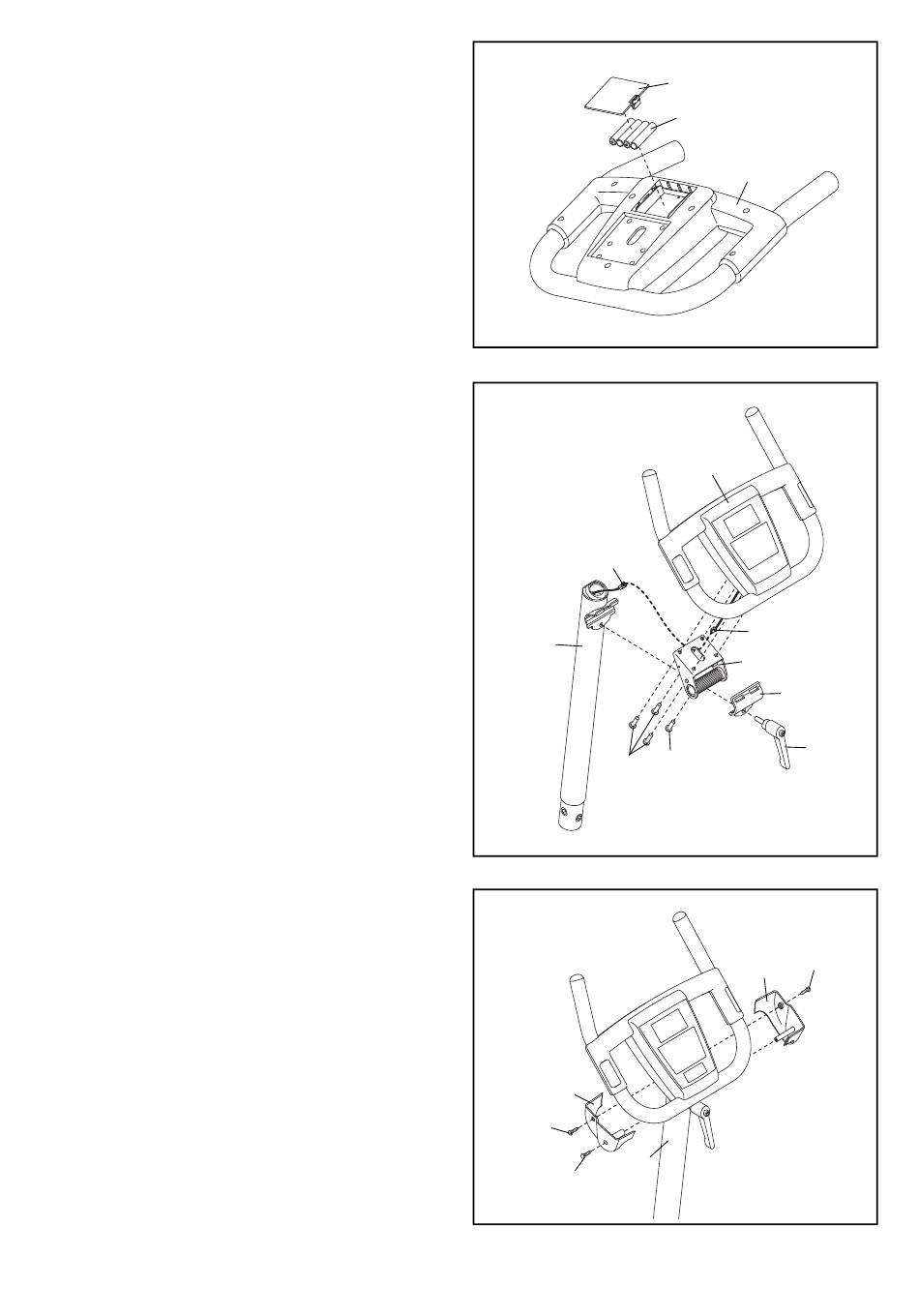

7. The Console (16) can use four AA batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the battery cover, insert the bat-
teries into the battery compartment, and reat-
tach the battery cover. Make sure to orient the
batteries as shown by the diagram inside
the battery compartment.
8. Attach the Pivot Bracket (53) to the Upright (13)
with the Pivot Clamp (54) and the Pivot Handle
(55).
Note: The Pivot Handle (55) functions like a
ratchet. Turn the Pivot Handle clockwise, pull it
away from the Upright (13), turn it counterclock-
wise, push it toward the Upright, and then turn it
clockwise again. Repeat this process until the
Pivot Handle is tight.
While a second person holds the Console (16)
near the Upright (13), insert the console wire
through the Pivot Bracket (53) and connect it to
the Extension Wire (23). Then, insert the
excess wire downward into the Upright.
Tip: Avoid pinching the wires. Attach the
Console (16) to the Pivot Bracket (53) with four
M6 x 15mm Button Screws (46).
9. Attach the Left and Right Pivot Covers (50, 51)
around the Upright (13) with an M4 x 15mm
Round Head Screw (58) and two M5 x 15mm
Round Head Screws (59).
