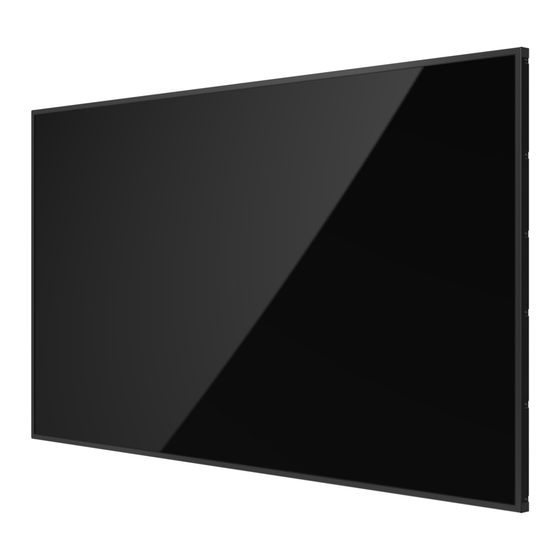

- Page 1 PO-5502 LCD Display User Manual www.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION ................1 CE Declaration of Conformity ........................1 Polish Center for Testing and Certification Notice ..................1 Electric, Magnetic and Electromagnetic Fields (“EMF”) ................2 Information for U.K. only ........................... 2 North Europe (Nordic Countries) Information ................... 4 End-of-Life Disposal .......................... - Page 3 TABLE OF CONTENTS CHAPTER 3: USING THE LCD DISPLAY ............ 22 3.1 Turning on the Power ......................... 22 3.2 Selecting the Input Source Signal ...................... 22 3.3 Adjusting the Volume .......................... 23 CHAPTER 4: ON SCREEN DISPLAY MENU ..........24 4.1 Using the OSD Menu .........................
-
Page 4: Safety Information
SAFETY INFORMATION CE Declaration of Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/ EU), RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment, these harmonized standards published under Directives of Official Journal of the European Union. -
Page 5: Electric, Magnetic And Electromagnetic Fields ("Emf")
SAFETY INFORMATION Electric, Magnetic and Electromagnetic Fields (“EMF”) • We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. • One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products. - Page 6 SAFETY INFORMATION If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.
-
Page 7: North Europe (Nordic Countries) Information
SAFETY INFORMATION North Europe (Nordic Countries) Information Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. - Page 8 SAFETY INFORMATION the following: • The crossed-out dustbin on the device or outer packaging indicates the product is compliant with European WEEE (Waste Electrical and Electronic Equipment) Directive • Always dispose of the old devices separately from household waste • Batteries should be removed beforehand and disposed separately to the right collection system •...
-
Page 9: Turkey Rohs
SAFETY INFORMATION According to EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service. Turkey RoHS Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur. Ukraine RoHS Обладнання відповідає вимогам Технічного регламенту щодо обмеження використання деяких небезпечних... -
Page 10: Precautions
PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 11: Cautions When Using
PRECAUTIONS Cautions When Using • Use only the power cord supplied with the LCD display. • The power outlet should be installed near the LCD display and Warning: be easily accessible. • If an extension cord is used with the LCD display, ensure that the Unplug the power cord from the power outlet and total current consumption plugged into the power outlet does not... -
Page 12: Notice For The Lcd Display
PRECAUTIONS Notice for the LCD Display • In order to maintain the stable luminous performance, it is recommended to use low brightness setting. • Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 13: Chapter 1: Product Description
CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Display Note: Quick Start Guide Remote Control ♦ Remote control is shipped with POWER MUTE the supplied AAA batteries. -
Page 14: Moving The Display
PRODUCT DESCRIPTION 1.2 Moving the Display 1.2.1 Carrying the Display Warning: When carrying the display, always hold it with two people using both ♦ Do not press too hard on the hands and the screen facing forward. LCD panel or edge of the frame, as this may cause the device to malfunction. -
Page 15: Wall Mounting Installation
For wall or ceiling installation, we recommend installing the display with metal brackets which are commercially available. ♦ AG Neovo also provides a great variety of wall mounts for different installation uses. For more information, please visit: www.agneovo. com/accessories ♦... -
Page 16: Mounting In Portrait Position
PRODUCT DESCRIPTION 40 mm 40 mm 40 mm 40 mm 1.4 Mounting in Portrait Position This display can be installed in portrait position. Rotate 90 degrees counter-clockwise such that one of the arrows on the rear of the LCD display is pointing up and the other to the left side (as illustrated below). -
Page 17: Lcd Display Overview
PRODUCT DESCRIPTION 1.5 LCD Display Overview 1.5.1 Input/Output Terminals Audio Audio D-SUB HDMI 1 HDMI 2 RS232 IN RS232 OUT AUDIO OUT Connects with external speakers or It can only connect with the accessory “IR audio amplifier to output the audio that and ambient light sensor ass’y.”... -
Page 18: Ir And Ambient Light Sensor Ass'y
PRODUCT DESCRIPTION 1.5.2 IR and Ambient Light Sensor Ass’y Light Sensor IR Sensor Indicator Receives ambient light and enable Displays the status of the IR sensor. automatic backlight adjustment. • Green: The display’s power is on. • Red: The display is in power saving Note: mode. -
Page 19: Remote Control
PRODUCT DESCRIPTION 1.6 Remote Control 1.6.1 General Functions POWER POWER MUTE Turns the display on or off. Note: MENU ♦ If the power indicator is not lit then the controls will not function. ] MUTE Press the MUTE button to mute the audio. ENTER MENU Displays the OSD menu. -
Page 20: Inserting The Batteries In The Remote Control
PRODUCT DESCRIPTION 1.6.2 Inserting the Batteries in the Remote Control Caution: The remote control is powered by two 1.5V AAA batteries. The incorrect use of batteries can To install or replace batteries: result in leaks or bursting. Be sure to follow these instructions: Open the remote control battery compartment cover. -
Page 21: Chapter 2: Making Connections
CHAPTER 2: MAKING CONNECTIONS 2.1 Connecting the Power Connect one end of the power cord to the AC IN connector at the side of the LCD display. Connect the other end of the power cord to a power outlet or a power supply. Set the Main Power switch to ON. -
Page 22: Connecting A Computer
MAKING CONNECTIONS 2.2 Connecting a Computer 2.2.1 Using D-SUB Input Connect one end of a D-SUB cable to the D-SUB connector of the LCD display and the other end of a D-SUB cable to the VGA OUT (D-SUB) connector of the computer. For audio input, connect one end of an audio cable to the AUDIO IN connector of the LCD display and the other end of an audio cable to the AUDIO OUT connector of the computer. -
Page 23: Using Rs232 Input
MAKING CONNECTIONS 2.2.3 Using RS232 Cables Connect one end of a RS232 cable to the RS232 IN connector of the LCD display and the other end to the RS232 connector of the computer. To create a daisy-chain configuration for applications, connect one end of a RS232 cable to the RS232 OUT connector of the Display 1 and the other end to the RS232 IN connector of the Display 2 Display 1 Display 2... -
Page 24: Connecting External Equipment (Video Player)
MAKING CONNECTIONS 2.3 Connecting External Equipment (Video Player) Connect one end of an HDMI cable to the HDMI connector of the LCD display and the other end of an HDMI cable to the HDMI OUT connector of the video player. HDMI 1 HDMI HDMI 2... -
Page 25: Chapter 3: Using The Lcd Display
CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power POWER button Plug the power cord to a power POWER MUTE Note: outlet or power supply. ♦ The LCD display still consumes Set the Main Power switch to MENU power as long as the power cord is connected to the power outlet. -
Page 26: Adjusting The Volume
POWER MUTE MENU USING THE LCD DISPLAY 3.3 Adjusting the Volume ENTER Note: SLIDE SHOW SOURCE EXIT ♦ After pressing the button, the volume adjustment bar is displayed on the screen PHOTO MUSIC MOVIE automatically. 16:9/4:3 ROTATE VOLUME ZOOM BACKMUSIC VOLUME buttons ♦... -
Page 27: Chapter 4: On Screen Display Menu
CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Menu Navigation Remote Control Display the main menu screen. Press the MENU button. Luminance Brightness Contrast Anti-Burn-in Auto Dimming Enter the submenu. 1 Press the button to select the main menu item. -
Page 28: Osd Menu Tree
ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree Main Menu Submenu Range Function desciption Brightness 0-100 Adjusts the brightness of the display Contrast 0-100 Adjusts the contrast of the display Triggers the screen saver function (Off/ Anti-Burn-in On). This process will then be activated each time the display is powered on. - Page 29 ON SCREEN DISPLAY MENU Main Menu Submenu Range Function desciption English Français Deutsch Language Español Chooses the OSD Menu language 繁體中文 简体中文 日本語 D-SUB HDMI1 Input Selects the signal input for the display HDMI2 Setup Full Screen Display Size Auto Adjusts the aspect ratio of the display Resets the display to its factory default Reset...
-
Page 30: Chapter 5: Appendix
CHAPTER 5: APPENDIX 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the ATTENTION the graphics card of the computer refresh rate of the graphics is set too high. card. CANNOT DISPLAY THIS VIDEO The LCD display cannot detect the •... - Page 31 APPENDIX DP Resolution: Resolution Refresh Rate (Hz) 640x480 800x600 PC Timing 1024x768 1280x768 1920x1080 640x480 1280x720 Video Timing 1920x1080 720x480 (4:3) 720x480 (16:9)
-
Page 32: Cleaning
APPENDIX 6.3 Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. -
Page 33: Troubleshooting
APPENDIX 6.4 Troubleshooting Symptom Possible Cause Remedy No picture is displayed • The main power switch on the 1 Plug in the power cord. side of the display is not switched 2 Make sure the Main Power switch is switched on. •... -
Page 34: Transporting The Lcd Display
APPENDIX 6.5 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging carton. 1 Place the LCD display inside the supplied protective bag (a). 2 Place the LCD display down in the lower box (b). 3 Place the foam cushions (c) of the LCD display for protection. -
Page 35: Chapter 6: Specifications
CHAPTER 6: SPECIFICATIONS 6.1 Display Specifications PO-5502 Panel Panel Type LED-Backlit TFT LCD (VA Technology) Panel Size 55” Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.630 mm Brightness 2500 cd/m Contrast Ratio 4000:1 Viewing Angle (H/V) 178°/178° Display Colour 16.7M... -
Page 36: Display Dimensions
1235.6 (OUTLINE DIMENSLON) 48.1 1216 (OPENING DIMENSLON) 1209.6 (ACTIVE AREA) M6 USER HOLE(X4) DEPTH MAX=19mm (318) (600) (318) AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2022 AG Neovo. All rights reserved. PO5520_UM_V010...
