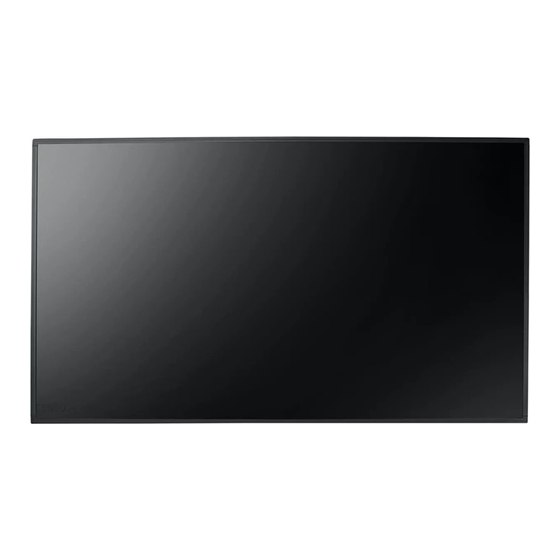

- Page 1 PO-55F & PO-55H LED-Backlit Display User Manual displays.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION ................1 CE Declaration of Conformity ........................1 Polish Center for Testing and Certification Notice ..................1 Electric, Magnetic and Electromagnetic Fields (“EMF”) ................2 Information for U.K. only ........................... 2 North Europe (Nordic Countries) Information ................... 4 End-of-Life Disposal .......................... - Page 3 6.3 Cleaning ............................. 37 6.4 Troubleshooting ..........................38 6.5 Transporting the LCD Display ......................39 CHAPTER 7: SPECIFICATIONS ..............40 7.1 Display Specifications ........................40 7.2 Display Dimensions ..........................41 7.2.1 PO-55F Dimensions ........................ 41 7.2.2 PO-55H Dimensions ........................ 41...
-
Page 4: Safety Information
SAFETY INFORMATION CE Declaration of Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/ EU), RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment these harmoni ed standards published under Directives of Official ournal of the European Union. -
Page 5: Electric, Magnetic And Electromagnetic Fields ("Emf")
SAFETY INFORMATION Electric, Magnetic and Electromagnetic Fields (“EMF”) • We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. • One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products. - Page 6 SAFETY INFORMATION If the fitted plug is not suitable for your socket outlets it should be cut off and an appropriate 3-pin plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.
-
Page 7: North Europe (Nordic Countries) Information
SAFETY INFORMATION No t ope No ic o nt ies n o mation Placering/Ventilation A N NG: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation AD A S : SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. -
Page 8: Turkey Rohs
SAFETY INFORMATION End of Life Directives-Recycling Your new Public Information Display contains several materials that can be recycled for new users. Please dispose of according to all Local, State, and Federal laws. Restriction on Hazardous Substances statement (India) This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule. -
Page 9: Precautions
PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 10: Cautions When Using
PRECAUTIONS Cautions When Using • Use only the power cord supplied with the LCD display. • The power outlet should be installed near the LCD display and Warning: be easily accessible. Unplug the power cord • If an extension cord is used with the LCD display, ensure that the from the power outlet and total current consumption plugged into the power outlet does not refer to qualified service... -
Page 11: Notice For The Lcd Display
PRECAUTIONS Notice for the LCD Display • In order to maintain the stable luminous performance, it is recommended to use low brightness setting. • Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 12: Chapter 1: Product Description
MENU PO-55F & PO-55H ENTER ♦ For all other regions, apply a Quick Start Guide SLIDE SHOW SOURCE EXIT PO-55F & PO-55H LED-Backlit Display Quick Start Guide PHOTO MUSIC MOVIE power cord that conforms to PO-55F/PO-55H_Quick Guide_V010 16:9/4:3 ROTATE displays.agneovo.com... -
Page 13: Preparing For The Installation
PRODUCT DESCRIPTION 1.2 Preparing for the Installation • Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is Warning: required, please consult your service agent. • The product should be installed on a at surface to avoid tipping. ♦... -
Page 14: Carrying The Display
PRODUCT DESCRIPTION 1.3.2 Carrying the Display When carrying the display, always hold it with two people using both hands and the screen facing forward. Caution: ♦ Avoid applying force or using sharp objects on the LCD panel at all times. 1.3.3 Setting Down the Display When setting the display down place the screen face down on a at... -
Page 15: Wall Mounting Installation
♦ Unit weight= 29.2 kg/ 64.2 lbs PO-55H (PO-55F) or 36.7 kg/ 80.7 lbs (PO-55H). The equipment and its associated mounting means still 1.4.1 VESA Grid remain secure during the test. -
Page 16: Ventilation Requirements For Enclosure Locating
PRODUCT DESCRIPTION Caution: To prevent the display from falling: ♦ For wall or ceiling installation, we recommend installing the display with metal brackets which are commercially available. For detailed installation instructions, refer to the guide received with the respective bracket. ♦... -
Page 17: Lcd Display Overview
PRODUCT DESCRIPTION 1.6 LCD Display Overview 1.6.1 Control Panel PO-55F PO-55H... - Page 18 PRODUCT DESCRIPTION IR sensor indicator MENU Displays the status of the IR sensor. • Displays the On Screen Display • Green: The display’s power is on. (OSD) menu. • Red: The display is in Stand-by mode. • Selects items or accepts the settings •...
-
Page 19: Input/Output Terminals
PRODUCT DESCRIPTION 1.6.2 Input/Output Terminals RS232 AUDIO AUDIO D-SUB HDMI PO-55F RS232 AUDIO AUDIO D-SUB HDMI PO-55H... - Page 20 PRODUCT DESCRIPTION AC-IN Audio in Connects with the supplied power cord. Connects with the audio out connector of a video source such as a computer, video Main Power switch player when the display is connected to the Switches the main power on or off. source via the VGA or DVI connector.
-
Page 21: Remote Control
PRODUCT DESCRIPTION 1.7 Remote Control 1.7.1 General Functions POWER POWER MUTE Turns the display on or off. Note: MENU ♦ If the power indicator is not lit then the controls will not function. MENU Displays the OSD menu. Please refer to page 28. ENTER ] NAVIGATION buttons Navigates through menus, selects items, and... -
Page 22: Inserting The Batteries In The Remote Control
PRODUCT DESCRIPTION 1.7.2 Inserting the Batteries in the Remote Control Caution: The remote control is powered by two 1.5V AAA batteries. The incorrect use of batteries can To install or replace batteries: result in leaks or bursting. Be sure to follow these instructions: Open the remote control battery compartment cover. -
Page 23: Chapter 2: Making Connections
CHAPTER 2: MAKING CONNECTIONS 2.1 Connecting the Power Connect one end of the power cord to the AC IN connector at the side of the LCD display. Connect the other end of the power cord to a power outlet or a power supply. Set the Main Power switch to ON. -
Page 24: Connecting A Computer
MAKING CONNECTIONS 2.2 Connecting a Computer 2.2.1 Using D-SUB Input Connect one end of a D-SUB cable to the D-SUB connector of the LCD display and the other end of a D-SUB cable to the VGA OUT (D-SUB) connector of the computer. For audio input, connect one end of an audio cable to the AUDIO IN connector of the LCD display and the other end of an audio cable to the AUDIO OUT connector of the computer. -
Page 25: Using Dvi Input
MAKING CONNECTIONS 2.2.3 Using DVI Input Connect one end of a DVI cable to the DVI connector of the LCD display and the other end of a DVI cable to the DVI OUT connector of the computer. For audio input, connect one end of an audio cable to the AUDIO IN connector of the LCD display and the other end of an audio cable to the AUDIO OUT connector of the computer. -
Page 26: Using Dp Input
MAKING CONNECTIONS 2.2.5 Using DP Input Connect one end of a DisplayPort cable to the DP connector of the LCD display and the other end of a DisplayPort cable to the DisplayPort connector of the computer. Press the SOURCE button on the remote control to select the video input source (DP). Computer DisplayPort 2.3 Connecting External Equipment (Video Player) -
Page 27: Connecting Audio Equipment
MAKING CONNECTIONS 2.3.2 Using DP Video Input Connect one end of a DisplayPort cable to the DP connector of the LCD display and the other end of a DisplayPort cable to the DisplayPort connector of the video player. Video Player DisplayPort 2.4 Connecting Audio Equipment 2.4.1... -
Page 28: Chapter 3: Using The Lcd Display
CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power POWER button Plug the power cord to a power POWER MUTE Note: outlet or power supply. ♦ The LCD display still consumes Set the Main Power switch to MENU power as long as the power cord is connected to the power outlet. -
Page 29: Adjusting The Volume
POWER MUTE MENU USING THE LCD DISPLAY 3.3 Adjusting the Volume ENTER Note: SLIDE SHOW SOURCE EXIT ♦ After pressing the button, the volume adjustment bar is displayed on the screen PHOTO MUSIC MOVIE automatically. 16:9/4:3 ROTATE VOLUME ZOOM BACKMUSIC VOLUME buttons ♦... -
Page 30: Setting Up The Ir Sensor
USING THE LCD DISPLAY 3.4 Setting Up the IR Sensor Before using the remote control, the IR sensor must be positioned correctly. The IR sensor is located on the right side of the rear of the display as illustrated below. To set up the IR sensor, do the following: Remove the two screws securing the IR sensor to the LCD display and loosen the IR sensor. -
Page 31: Chapter 4: On Screen Display Menu
CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Menu Navigation Control Panel Remote Control Display the main menu screen. Press the MENU button. Luminance Brightness Contrast Anti-Burn-in Auto Dimming 720x480@59.9Hz Ambient 38 Thermal 34 Enter the submenu. 1 Press the PLUS 1 Press the or MINUS button... -
Page 32: Osd Menu Tree
ON SCREEN DISPLAY MENU Note: ♦ Availability of some menu items depend on the input source signal. 4.2 OSD Menu Tree Luminance Brightness Contrast Anti-Burn-in Auto Dimming 720x480@59.9Hz Ambient 38 Thermal 34 Main Menu Submenu Remarks 1. Luminance • Brightness See page 30. -
Page 33: Chapter 5: Adjusting The Lcd Display
CHAPTER 5: ADJUSTING THE LCD DISPLAY 5.1 Luminance Adjusts the LCD display’s luminance settings. 1 Press the MENU button on the control panel or the remote control to call out the OSD window. Luminance 2 Select Luminance, then press the MENU button on the control panel Brightness or the ENTER button on the remote... -
Page 34: Picture
ADJUSTING THE LCD DISPLAY Item Function Operation Range Triggers the screen saver function (Off/On). If set to On then a white Anti-Burn-in rectangle will automatically go across the screen, and will be Press the MENU button on the followed by a black rectangle. control panel or the ENTER button Adjusts the backlight of the LCD on the remote control to select the... -
Page 35: Color
ADJUSTING THE LCD DISPLAY 5.3 Color Adjusts the LCD display’s color settings. 1 Press the MENU button on the control panel or the remote control to call out the OSD window. Color 2 Select Color, then press the MENU button on the control panel or the ENTER button on the remote control. -
Page 36: Osd Settings
ADJUSTING THE LCD DISPLAY 5.4 OSD Settings Adjusts the OSD settings. 1 Press the MENU button on the control panel or the remote control to call out the OSD window. OSD Settings 2 Select OSD Settings, then press the MENU button on the control panel or the ENTER button on the remote Horizontal Vertical... -
Page 37: Setup
ADJUSTING THE LCD DISPLAY 5.5 Setup Configure the setup settings. 1 Press the MENU button on the control panel or the remote control to call out the OSD window. Setup 2 Select Setup, then press the MENU button on the control panel or the ENTER button on the remote control. -
Page 38: Chapter 6: Appendix
CHAPTER 6: APPENDIX 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the ATTENTION the graphics card of the computer refresh rate of the graphics is set too high. card. CANNOT DISPLAY THIS VIDEO The LCD display cannot detect the •... - Page 39 APPENDIX DVI Resolution: Horizontal Pixel Frequency Resolution Refresh Rate (Hz) Standard Type Frequency (KHz) (MHz) 31.5 25.175 Industrial Standard 640x480 37.5 31.5 1280x1024 1920x1080 67.5 148.5 HDMI Resolution: Horizontal Pixel Frequency Resolution Refresh Rate (Hz) Standard Type Frequency (KHz) (MHz) 1920x1080 67.5 148.5...
-
Page 40: Cleaning
APPENDIX 6.3 Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. -
Page 41: Troubleshooting
APPENDIX 6.4 Troubleshooting Symptom Possible Cause Remedy No picture is displayed • The main power switch on the 1 Plug in the power cord. side of the display is not switched 2 Make sure the Main Power switch is switched on. •... -
Page 42: Transporting The Lcd Display
APPENDIX 6.5 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging carton. 1 Place the LCD monitor inside the supplied protective bag (a). 2 Place the LCD display down in the lower box (b). 3 Place the upper box (c) on the LCD display. -
Page 43: Chapter 7: Specifications
CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications PO-55F PO-55H Panel Panel Type LED-Backlit TFT LCD (VA Technology) LED-Backlit TFT LCD (VA Technology) Panel Size 54.6” 54.6” Max. Resolution FHD 1920 x 1080 FHD 1920 x 1080 Pixel Pitch 0.630 mm 0.630 mm... -
Page 44: Display Dimensions
1242.2(outline dimension) (M8xL18)x4 117.8 1215.6(opening dimension) 50.6 421.1 421.1 13.3 13.3 339.3 564.8 338.1 7.2.2 PO-55H Dimensions AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2020 AG Neovo. All rights reserved. PO5H00/PO5F00_UM_V011...
