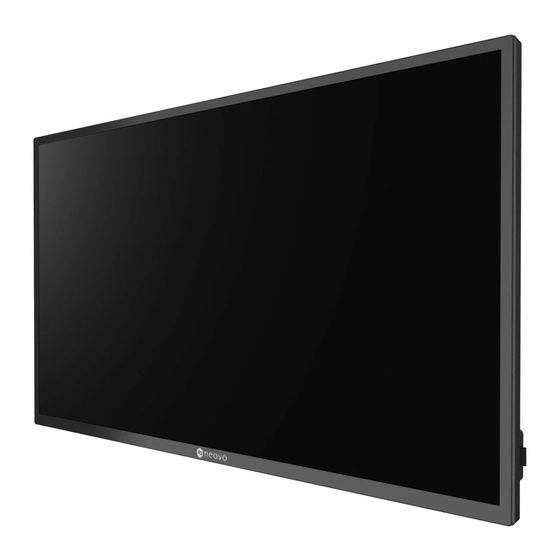

- Page 1 PM-3202 LCD Display User Manual www.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION ................1 Federal Communications Commission (FCC) Notice (U.S. Only) ............1 Ukraine RoHS ............................2 PRECAUTIONS ..................3 Cautions When Setting Up ........................3 Cautions When Using ..........................4 Cleaning and Maintenance ........................4 Notice for the LCD Display ........................5 CHAPTER 1: PRODUCT DESCRIPTION .......... - Page 3 TABLE OF CONTENTS CHAPTER 6: APPENDIX ................30 6.1 Warning Messages ..........................30 6.2 Input Mode ............................31 6.3 Cleaning ............................. 33 6.4 Troubleshooting ..........................34 CHAPTER 7: SPECIFICATIONS .............. 35 7.1 Display Specifications ........................35 7.2 Display Dimensions ..........................36...
-
Page 4: Safety Information
SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 5: Ukraine Rohs
SAFETY INFORMATION Waste Electrical and Electronie Equipment-WEEE This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 6: Precautions
PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 7: Cautions When Using
PRECAUTIONS Cautions When Using • Use only the power cord supplied with the LCD display. • The power outlet should be installed near the LCD display and Warning: be easily accessible. • If an extension cord is used with the LCD display, ensure that the Unplug the power cord from the power outlet and total current consumption plugged into the power outlet does not... -
Page 8: Notice For The Lcd Display
PRECAUTIONS Notice for the LCD Display • In order to maintain the stable luminous performance, it is recommended to use low brightness setting. • Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 9: Chapter 1: Product Description
AAA batteries. PM-3202 ♦ For all other regions, apply a Quick Start Guide power cord that conforms to PM-3202 LCD Monitor the AC voltage of the power PM-3202_Quick Guide_V010 www.agneovo.com socket and has been approved by and complies with the safety... -
Page 10: Preparing For The Installation
To wall-mount the LCD display, screw the mounting bracket to the block the ventilation holes on VESA holes at the rear of the LCD display. the back of the display. PM-3202 ♦ Secure the LCD display on a solid wall strong enough to bear (263.2) -
Page 11: Ventilation Requirements For Enclosure Locating
PRODUCT DESCRIPTION 1.4.1 VESA Grid VESA Grid 100(W) x 100(H)mm & 200(W) x 200(H)mm Caution: Note: To prevent the display from falling: ♦ For the wall-mounting kit, use M4 mounting screws (having ♦ For wall or ceiling installation, we recommend installing the a length 10 mm longer than display with metal brackets which are commercially available. -
Page 12: Lcd Display Overview
PRODUCT DESCRIPTION 1.5 LCD Display Overview 1.5.1 Control Panel [ ] Power PM-3202 Turn the display on or put the display to standby. MUTE • Switch the audio mute ON/OFF. • Return to the main menu screen while OSD menu is on. -
Page 13: Using The Remote Sensor And Power Status Indicator
PRODUCT DESCRIPTION 1.5.2 Using the Remote Sensor and Power Status Indicator • If you want to obtain a better reception of remote control function, please adjust the indicator location to easily check the power status indicator. • If you want to mount the display to the wall, please push the indicator switch inward before installation. •... -
Page 14: Remote Control
PRODUCT DESCRIPTION 1.6 Remote Control POWER Turn the display on or to put the display into standby mode. 1.6.1 General Functions PLAY Control playback in multimedia mode. ] SOURCE Select the input source. ] HOME Access/Exit the OSD menu. ] LIST No function. -
Page 15: Id Remote Control
PRODUCT DESCRIPTION 1.6.2 ID Remote Control To set the remote control ID: Press the ID button. The red LED blinks You can set the remote control ID when you want to twice. use this remote control on one of several different Press the ID SET button for more than displays. -
Page 16: Inserting The Batteries In The Remote Control
PRODUCT DESCRIPTION 1.6.3 Inserting the Batteries in the Remote Control Caution: The remote control is powered by two 1.5V AAA batteries. The incorrect use of batteries can To install or replace batteries: result in leaks or bursting. Be sure Press and then slide the cover to open it. to follow these instructions: Align the batteries according to the (+) and (-) indications ♦... -
Page 17: Chapter 2: Making Connections
CHAPTER 2: MAKING CONNECTIONS AUDIO MEMORY AUDIO D-sub RS-232C IN IR OUT HDMI 3 HDMI 2 HDMI 1... -
Page 18: Chapter 3: On Screen Display Menu
CHAPTER 3: ON SCREEN DISPLAY MENU 3.1 Using the OSD Menu Operation Menu Navigation Control Panel Remote Control 1 Press the MENU Display the main menu screen. 1 Press the button. button. 2 Press the 2 Press the PICTURE button to select button to select COLOR MODE HIGH ILLUMINANCE... - Page 19 ON SCREEN DISPLAY MENU Operation Menu Navigation Control Panel Remote Control Adjust the settings. Press the Press the For example: button to select/ button to select/ adjust the setting. adjust the setting. PICTURE COLOR MODE HIGH ILLUMINANCE ADVANCED BRIGHT BLACK LEVEL CONTRAST COLORS TINT...
-
Page 20: Osd Menu Tree
ON SCREEN DISPLAY MENU 3.2 OSD Menu Tree PICTURE COLOR MODE HIGH ILLUMINANCE ADVANCED BRIGHT BLACK LEVEL CONTRAST COLORS TINT SHARPNESS Main Menu Submenu Remarks 1. PICTURE • COLOR MODE See page 18. • ADVANCED • BRIGHT • BLACK LEVEL •... -
Page 21: Chapter 4: Adjusting The Lcd Display
CHAPTER 4: ADJUSTING THE LCD DISPLAY 4.1 Picture Settings PICTURE COLOR MODE HIGH ILLUMINANCE ADVANCED BRIGHT BLACK LEVEL CONTRAST COLORS TINT SHARPNESS Item Function Range COLOR MODE Change the color mode on the screen. VIVID sRGB HIGH ILLUMINANCE ADVANCED ADVANCED SIZE NORMAL WHITE BALANCE... - Page 22 ADJUSTING THE LCD DISPLAY Item Function Range ADVANCED NR: Adjust the noise reduction to help remove noise from images. (continue) This helps produce clearer and crisper images. Note: Support YCbCr color space for HDMI input. MIDDLE HIGH ACTIVE CONTRAST: Enable/Disable the Active Contrast function. Note: This menu item is not available if the COLOR MODE is set to sRGB and the input source is D-SUB.
-
Page 23: Audio Settings
ADJUSTING THE LCD DISPLAY 4.2 Audio Settings AUDIO TREBLE BASS BALANCE SPEAKER AUDIO OUTPUT VARIABLE Item Function Range TREBLE Adjust to increase or decrease the higher-pitched sounds. 0 to 31 BASS Adjust to increase or decrease the lower-pitched sounds. 0 to 31 BALANCE Adjust to emphasize the left or right audio output balance. -
Page 24: Setup Settings
ADJUSTING THE LCD DISPLAY 4.3 Setup Settings SETUP LANGUAGE ENGLISH DATE/TIME SETTING SCHEDULE ALINK HDMI MODES COMMUNICATION SETTING SCREEN OPERATION MODE MODE1 POWER SAVE MODE OFF IF NO OPERATION Item Function Range LANGUAGE Set the OSD language. ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL РУССКИЙ... - Page 25 ADJUSTING THE LCD DISPLAY Item Function Range SCHEDULE This function allows you to program up to 7 different scheduled time intervals for this display to activate. You can set: • Which input source the display will use for each scheduled activation period. •...
- Page 26 ADJUSTING THE LCD DISPLAY Item Function Range SCHEDULE INPUT: Set the input source. HDMI1 (continue) HDMI2 HDMI3 D-SUB AUTO PLAY1 AUTO PLAY2 ALINK Enable or disable HDMI Consumer Electronics Control control. AUTO • OFF: Disable the function. • AUTO: The system will automatically control the connected HDMI-CEC compatible device on the same power on or power off status.
- Page 27 ADJUSTING THE LCD DISPLAY Item Function Range OPERATION Select the operation mode setting. MODE1 MODE MODE2 • MODE1: » In case there is no operation for more than 4 hours, the display will automatically go into standby mode. » In case there is no signal for 5 minutes, the display will automatically go into standby mode.
- Page 28 ADJUSTING THE LCD DISPLAY Item Function Range REMOTE Enable or disable some or all remote control buttons. UNLOCKED CONTROL LOCK LOCK ALL • UNLOCKED: Unlock all remote control buttons. LOCK EXCEPT • LOCK ALL: Lock all remote control buttons. VOLUME •...
-
Page 29: Chapter 5: Multimedia
CHAPTER 5: MULTIMEDIA 5.1 Overview • Play photo files, audio files and movie files equipped in USB flash. • There are 2 play modes as ManualPlay and AutoPlay. • With ManualPlay, it implements BGM function that select audio file playing photo files. •... -
Page 30: Play Mode
MULTIMEDIA 5.3 Supported USB Flash File system FAT16/32, NTFS Max capacity 32GB(FAT32), 2TB(NTFS) Mac file size 4GB(FAT32) Not Supported Encrypted flash drive Not support memory device with multi partition. 5.4 Play Mode There are Manual play mode and Auto play mode as a way to play files. Supported File Mode How to Start... -
Page 31: Detail Of Each Screen
MULTIMEDIA 5.6 Detail of Each Screen Select Media type screen USB 2.0 PHOTO MUSIC MOVIE • Select media type to play. Item Function PHOTO Enter photo file browser MUSIC Enter audio file browser MOVIE Enter movie file browser • Function Icons are different with media type. Function Option Photo... -
Page 32: Autoplay
MULTIMEDIA 5.7 AutoPlay • There are 3 type AutoPlay by turning on the monitor, inserting a media and schedule. 1. AutoPlay by turning on the monitor Start to play automatically with matching the condition of AutoPlay as turning on the monitor ... -
Page 33: Chapter 6: Appendix
CHAPTER 6: APPENDIX 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh • Change the resolution or the INPUT SIGNAL rate of the graphics card of the refresh rate of the graphics OUT OF RANGE computer is set too high. card. -
Page 34: Input Mode
APPENDIX 6.2 Input Mode PC Signal Horizontal Vertical Resolution HDMI Frequency (kHz) Frequency (Hz) Frequency (MHz) 640×480 31.5 25.175 800×600 37.9 848x480 33.75 1024×768 48.4 1289x800 49.7 83.5 1280x960 VESA ... - Page 35 APPENDIX AV Signal Standard Resolution Frequency HDMI 24Hz 25Hz 30Hz 3840 × 2160p 50Hz 59.94Hz 60Hz 24Hz 50Hz 1920 × 1080p 59.94Hz 60Hz 50Hz 1920 × 1080i 59.94Hz 60Hz 720 × 576p 50Hz 59.94Hz 720 × 480p 60Hz 59.94Hz 640 × 480p(VGA) 60Hz 720(1440) ×...
-
Page 36: Cleaning
APPENDIX 6.3 Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. -
Page 37: Troubleshooting
APPENDIX 6.4 Troubleshooting Symptom Possible Cause Remedy No picture is displayed • The power cord has been 1 Plug in the power cord. disconnected. 2 Make sure the power switch is • The main power switch on switched on. the back of the display is not 3 Connect a signal connection to switched on. -
Page 38: Chapter 7: Specifications
CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications PM-3202 Panel Panel Type LED-Backlit TFT LCD (VA Technology) Panel Size 31.5” Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.364 mm Brightness 350 cd/m Contrast Ratio 4000:1 (DCR) Viewing Angle (H/V) 178°/178° Display Colour 16.7M... -
Page 39: Display Dimensions
PM-3202 726.5 (Outline dimension) 65.1 (263.2) (263.2) 200.0 11.9 (T/L/R) M4xL10 100.0 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2022 AG Neovo. All rights reserved. PM-3202 Eprel Registration Number: 1090654 PM3220_UM_V010...
