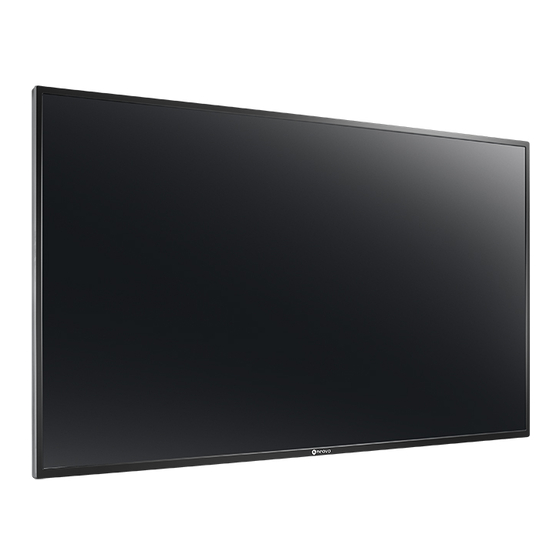

- Page 1 PM-48 LED-Backlit Display User Manual displays.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION ................1 Federal Communications Commission (FCC) Notice (U.S. Only) ............1 CE ................................1 Polish Center for Testing and Certification Notice ..................2 Electric, Magnetic and Electromagnetic Fields (“EMF”) ................2 Information for U.K. only ........................... 3 North Europe (Nordic Countries) Information ................... - Page 3 6.1 Warning Messages ..........................54 6.2 USB Device Compatibility ........................55 6.3 Supported Resolution ......................... 58 6.4 Cleaning ............................. 59 6.5 Troubleshooting ..........................60 CHAPTER 7: SPECIFICATIONS ..............61 7.1 Display Specifications ........................61 7.2 Display Dimensions ..........................62 7.2.1 PM-48 Dimensions ........................62...
-
Page 4: Safety Information
SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 5: Polish Center For Testing And Certification Notice
SAFETY INFORMATION Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. -
Page 6: Information For U.k. Only
SAFETY INFORMATION Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows: Remove fuse cover and fuse. Fit new fuse which should be a BS 1362 5A,A.S.T.A. -
Page 7: North Europe (Nordic Countries) Information
SAFETY INFORMATION How to connect a plug The wires in the mains lead are coloured in accordance with the following code: BLUE - “NEUTRAL” (“N”) BROWN - “LIVE” (“L”) GREEN & YELLOW - “EARTH” (“E”) • The GREEN & YELLOW wire must be connected to the terminal in the plug which is marked with the letter “E”... -
Page 8: End-Of-Life Disposal
SAFETY INFORMATION End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. -
Page 9: Turkey Rohs
SAFETY INFORMATION E-Waste Declaration for India This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment . -
Page 10: Precautions
PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 11: Cautions When Using
PRECAUTIONS Cautions When Using • Use only the power cord supplied with the LCD display. • The power outlet should be installed near the LCD display and Warning: be easily accessible. • If an extension cord is used with the LCD display, ensure that the Unplug the power cord from the power outlet and total current consumption plugged into the power outlet does not... -
Page 12: Notice For The Lcd Display
PRECAUTIONS Notice for the LCD Display • In order to maintain the stable luminous performance, it is recommended to use low brightness setting. • Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 13: Chapter 1: Product Description
CHAPTER 1: PRODUCT DESCRIPTION 1.1 Unpacking • This product is packed in a packaging box which contains standard accessories. • Any other optional accessories will be packed separately. • Considering the size and weight of the display, it is recommended that this product is carried out by two persons. -
Page 14: Preparing For The Installation
PRODUCT DESCRIPTION 1.3 Preparing for the Installation • Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is required, please consult your service agent. Warning: • The product should be installed on a flat surface to avoid tipping. ♦... -
Page 15: Vesa Grid
PRODUCT DESCRIPTION 1.4.1 VESA Grid Model Name VESA Grid Note: PM-48 200(W) x 200(H)mm / ♦ For the wall-mounting kit, use 400(W) x 400(H)mm M6 mounting screws (having a length 10 mm longer than Caution: the thickness of the mounting... -
Page 16: Using The Remote Sensor And Power Status Indicator
PRODUCT DESCRIPTION 1.5 Using the Remote Sensor and Power Status Indicator • If you want to obtain a better reception of remote control function, please adjust the indicator location to easily check the power status indicator. • If the display is mounting on the wall, please push the indicator switch inward before installation. •... -
Page 17: Lcd Display Overview
PRODUCT DESCRIPTION 1.6 LCD Display Overview 1.6.1 Control Panel MUTE INPUT MENU [ ] Power [ ] Up Confirm a selection and enter its submenu Turn the display on or put the display while OSD menu is on. to standby. MUTE [ ] Down Return to the previous menu while OSD... -
Page 18: Input/Output Terminals
PRODUCT DESCRIPTION 1.6.2 Input/Output Terminals AC IN AUDIO IN AC power input from the wall outlet. Audio input from external AV device (RCA). Main power switch AUDIO OUT Switch the main power on/off. Audio output to external AV device. PC LINE IN IR IN/ IR OUT Audio input for PC source (3.5mm &... -
Page 19: Remote Control
PRODUCT DESCRIPTION 1.7 Remote Control POWER Turn the display on or to put the display into standby mode. 1.7.1 General Functions PLAY Control playback in multimedia mode. ] SOURCE Choose input source. Press the button to choose from USB, Network, HDMI, DVI, YPbPr, AV, or VGA. -
Page 20: Inserting The Batteries In The Remote Control
PRODUCT DESCRIPTION 1.7.2 Inserting the Batteries in the Remote Control Caution: The remote control is powered by two 1.5V AAA batteries. The incorrect use of batteries can To install or replace batteries: result in leaks or bursting. Be sure to follow these instructions: Press and then slide the cover to open it. -
Page 21: Chapter 2: Making Connections
CHAPTER 2: MAKING CONNECTIONS 2.1 Connecting the Power Connect one end of the power cord to the AC IN connector at the rear of the LCD display. Connect the other end of the power cord to a power outlet or a power supply. Set the Main Power switch to ON. -
Page 22: Connecting A Computer
MAKING CONNECTIONS 2.2 Connecting a Computer 2.2.1 Using VGA Input Connect one end of a D-sub cable to the VGA IN connector of the LCD display and the other end of a D-sub cable to the VGA OUT (D-Sub) connector of the computer. For audio input, connect one end of an audio cable to the AUDIO IN connector of the LCD display and the other end of an audio cable to the AUDIO OUT connector of the computer. -
Page 23: Using Hdmi Input
MAKING CONNECTIONS 2.2.3 Using HDMI Input Connect one end of an HDMI cable to the HDMI IN connector of the LCD display and the other end of an HDMI cable to the HDMI OUT connector of the computer. Computer PC LINE IN HDMI IN DVI-D IN VGA IN... -
Page 24: Connecting External Equipment (Dvd/Vcr/Vcd)
MAKING CONNECTIONS 2.3 Connecting External Equipment (DVD/VCR/VCD) 2.3.1 Using COMPONENT Video Input Connect one end of a component cable to the COMPONENT IN connector of the LCD display and the other end of a component cable to the COMPONENT OUT connectors of the video player (DVR/VCR/VCD). For audio input, connect one end of an audio cable to the AUDIO IN connectors of the LCD display and the other end of an audio cable to the AUDIO OUT connectors of the video player (DVR/VCR/VCD). -
Page 25: Using Hdmi Video Input
MAKING CONNECTIONS 2.3.3 Using HDMI Video Input Connect one end of an HDMI cable to the HDMI IN connector of the LCD display and the other end of an HDMI cable to the HDMI OUT connector of the video player (DVR/VCR/VCD). PC LINE IN HDMI IN DVI-D IN... -
Page 26: Connecting Multiple Displays In A Daisy-Chain Configuration
MAKING CONNECTIONS 2.5 Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. Caution: To avoid unnecessary strain on the bezel, it is highly recommended to keep a minimum space of 0.5mm in which a business card is able to slip between all displays on all sides. -
Page 27: Ir Connection
MAKING CONNECTIONS 2.6 IR Connection Connect the IR sensor cable to the IR IN connector of the LCD display. External IR Receiver [IR IN] Note: ♦ This display’s remote control sensor will stop working if the [IR IN] is connected. 2.7 IR Pass-Through Connection Connect one end of an IR extender cable to the IR OUT connector of the LCD display and the other end of an IR extender cable to the IR IN connector of the video player (DVR/VCR/VCD). -
Page 28: Connecting To Wired Network
MAKING CONNECTIONS 2.8 Connecting to Wired Network If you connect this LCD display to a home network, you can play photos, music, and videos from your computer. INTERNET ROUTER [RJ45] [RJ45] To setup the network: Switch on the router and switch on its DHCP setting. Connect the router to the LCD display with an Ethernet cable. -
Page 29: Chapter 3: Using The Lcd Display
CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power POWER button Plug the power cord to a power Note: outlet or power supply. ♦ The LCD display still consumes Press the button to turn the power as long as the power cord is connected to the power LCD display on. -
Page 30: Adjusting The Volume
USING THE LCD DISPLAY 3.3 Adjusting the Volume Note: ♦ After pressing the button, the volume icon is displayed on the screen automatically. VOLUME buttons ♦ Press the button to mute the Press the button to adjust the volume. audio. 3.4 Changing the Picture Format Note: The available picture formats... -
Page 31: Choosing Your Preferred Picture Settings
USING THE LCD DISPLAY 3.5 Choosing Your Preferred Picture Settings Note: The available picture styles include: ♦ Personal: Apply your personalised picture settings. ♦ Vivid: Rich and dynamic settings, ideal for daytime viewing. ♦ Natural: Natural picture settings. ADJUST button ♦... -
Page 32: Playing Multimedia Files Via Local Area Network
USING THE LCD DISPLAY 3.7 Playing Multimedia Files via Local Area Network To play files via Local Area Network, you will need: • A wired home network, connected with a Universal Plug and Play (uPnP) router. • Optional: A LAN cable that connects your display to your home network. •... -
Page 33: How To Use Dlna-Dmp
USING THE LCD DISPLAY Set Up Media Sharing Install a media server on your computer to share media files. These are some media servers: • For PC: Windows Media Player 11 (or higher) or TVersity • For Mac: Twonky Switch on media sharing on your computer using the media server. For more information on how to set up the media server, refer to the website of the media server. -
Page 34: How To Use Dlna-Dmr From Pc
Sound Network configuration General settings Static IP configuration Network settings Digital Media Render... Wake on lan Network name PM-48 Cancel Done Done Clear Press the button, choose Network and press the button. On your PC, go to Network and Sharing Center, and click Choose homegroup and sharing options. -
Page 35: Playing Multimedia Files From Usb Device
USING THE LCD DISPLAY Now, go to the directory of your media files. Choose the media file by right click. On the submenu from Play To, You can find all displays connected to your network. Choose the display, and click the media file to play. - Page 36 USING THE LCD DISPLAY Press the button to enter the USB mode. USB device 1 By default, it displays the files in Folder view. Movie Video_001.mp4 Music Video_002.mp4 Photo Video_003.mp4 System Volume Information USB device Options Press the button to go up the top layer in the screen. Then press the button to select the desired file type: Music,...
-
Page 37: Play Options
USING THE LCD DISPLAY 3.9 Play Options 3.9.1 Playing Music Files Choose Music in the top bar. Music Choose one music track, and press the button. Blackout (Promo) 1. Song_001 03:09 2. Song_002 03:32 3. Song_003 04:15 4. Song_004 03:15 Music >... -
Page 38: Playing Movie Files
USING THE LCD DISPLAY 3.9.2 Playing Movie Files Choose Movie in the top bar. Movie Choose a video, and press the button. Others Video_001.mp4 Video_002.mp4 Video_003.mp4 01:10:03 01:50:03 00:30:15 1020.51MB 1785.41MB 458.20MB 2017-03-28 2017-03-28 2017-03-28 Movie > Video_001.mp4 Info Play All Sort USB device Options... -
Page 39: Playing Photo Files
USING THE LCD DISPLAY Note: ♦ To view information about a video (for example, play position, duration, title or date), choose the video, then press the button. To hide the information, press the button again. 3.9.3 Playing Photo Files Choose Photo in the top bar. -
Page 40: Chapter 4: On Screen Display Menu
CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Operation Menu Navigation Control Panel Remote Control Press the MENU Display the main menu screen. Press the button. button. Enter the submenu. 1 Press the or 1 Press the button to select button to select the menu item. - Page 41 ON SCREEN DISPLAY MENU Operation Menu Navigation Control Panel Remote Control Exit the submenu. Press the Press the button button to return to to return to the the previous menu. previous menu. Close the OSD window. Press the MENU Press the button button again.
-
Page 42: Osd Menu Tree
ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree Main Menu Submenu Remarks 1. Picture • Picture style See page 41. • Restore style • Backlight • Contrast • Brightness • Hue • Colour • Sharpness • Advanced • Video or PC •... - Page 43 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 3. General settings • Menu language See page 46. • Monitor id • Eco mode • Auto search • Clock • Scheduling • Sleep timer • Auto switch off • Auto adjust •...
-
Page 44: Chapter 5: Adjusting The Lcd Display
CHAPTER 5: ADJUSTING THE LCD DISPLAY 5.1 Picture Settings 1 Press the MENU button on the control Picture Picture style panel or the button on the remote Sound Restore style control to call out the OSD window. General settings Backlight Network settings Contrast 2 Select Picture, then press the... - Page 45 ADJUSTING THE LCD DISPLAY Item Function Operation Range Adjust the luminance of the screen Press the button on the image. 0 to 100 control panel or the / button on the remote control to adjust the value. Note: The default value is 50. Original Setting High Setting Low Setting...
- Page 46 ADJUSTING THE LCD DISPLAY Item Function Operation Range • Colour temp.: Change the colour balance. » Cool: Applies a bluish tint for cooler colours. » Normal: commonly used for normal lighting conditions. Cool » Press the button on the Warm: Applies a reddish tint Normal control panel or the / button on the for warmer colours.
- Page 47 ADJUSTING THE LCD DISPLAY Item Function Operation Range • Video: Choose when viewing content from a connected game console. • PC: Choose when a computer is Press the button on the connected through HDMI. Video or PC Video control panel or the / button on the Make sure that Format and remote control to select the setting.
-
Page 48: Sound Settings
ADJUSTING THE LCD DISPLAY 5.2 Sound Settings 1 Press the MENU button on the control Picture Sound style panel or the button on the remote Sound Restore style control to call out the OSD window. General settings Bass Network settings Treble 2 Select Sound, then press the Audio out... -
Page 49: General Settings
ADJUSTING THE LCD DISPLAY 5.3 General Settings 1 Press the MENU button on the control Picture Menu language panel or the button on the remote Sound Monitor id control to call out the OSD window. General settings Eco mode Network settings Auto search 2 Select General settings, then press Clock... - Page 50 ADJUSTING THE LCD DISPLAY Item Function Operation Range Set the current date and time for the display’s internal clock. • Daylight saving: Choose the Press the button on the Daylight daylight saving time. saving time control panel or the / button on the Note: The default value is Standard Standard time remote control to select the setting.
- Page 51 ADJUSTING THE LCD DISPLAY Item Function Operation Range • Status: Enable or disable the Press the button on the schedule. control panel or the / button on the remote control to select the setting. Note: The default value is Off. HDMI Press the button on the...
- Page 52 ADJUSTING THE LCD DISPLAY Item Function Operation Range • Playlist setting: Choose the file to be included in the playlist. Note: ♦ Each playlist supports up to 30 files. ♦ Playlist will not be cleared after Factory settings. You have to manually remove the files or delete usb_schedulinglist.txt on the USB disk drive.
- Page 53 ADJUSTING THE LCD DISPLAY Item Function Operation Range Set the countdown timer interval to let the display to automatically power off when no signal is 30 mins Press the button on the detected. Press any key on the Auto switch off 60 mins control panel or the / button on the remote control to disable this...
- Page 54 1 9 9 8 on the remote control. ♦ The default value is Unlock. When enabled, the AG Neovo Press the button on the logo will be shown on the startup Display logo control panel or the / button on the screen.
-
Page 55: Network Settings
ADJUSTING THE LCD DISPLAY 5.4 Network Settings 1 Press the MENU button on the control Picture View network settings panel or the button on the remote Sound Network configuration control to call out the OSD window. General settings Static IP configuration Network settings Digital Media Render... - Page 56 ADJUSTING THE LCD DISPLAY Item Function Operation Range Enable this feature to allow the Press the button on the control display to be switched on over the Wake on lan panel or the / button on the network. remote control to select the setting. Note: The default value is Off.
-
Page 57: Chapter 6: Appendix
CHAPTER 6: APPENDIX 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the the graphics card of the computer refresh rate of the graphics Cannot display this video mode is set too high. card. -
Page 58: Usb Device Compatibility
APPENDIX 6.2 USB Device Compatibility USB Video Subtitle Formats (for language subtitles, etc.). Max. Bit File Video Maximum Max. Frame Rate Container Rate Audio Codec Extensions Codec Resolution (fps) (Mbps) MPEG-1 1920x1080 25p,30p,50i,60i MPEG- 1(L1&L2), .mpg MPEG-2 1920x1080 25p,30p,50i,60i MPEG-1,2,2.5 MPEG-4 mpeg 1920x1080... - Page 59 APPENDIX Max. Bit File Video Maximum Max. Frame Rate Container Rate Audio Codec Extensions Codec Resolution (fps) (Mbps) .m4v H.264 1920x1080 25p,30p,50p,60p,60i H.264 1920x1080 25p,30p,50p,60p,60i 1,920x1,080i, field rate=50, 60Hz AAC/HE-AAC .ism/ 1,920x1,080p, (v1&v2), AC3, Manifest frag MP4 frame rate=24, EAC3, WMA, .mpd 25,30Hz WMA-PRO...
- Page 60 APPENDIX USB Multimedia Formats File Video Maximum Frequency Max. Bit Rate Container Audio Codec Extensions Codec Resolution (kHz) (Mbps) .mp3 MPEG-1,2,2.5 L3 .wma .asf (V2 up to V9.2) .wma WMA Pro WMA, WMA Pro .wav(PC) LPCM LPCM .aif(mac) LPCM LPCM .aiff(mac) .aac AAC,...
-
Page 61: Supported Resolution
APPENDIX 6.3 Supported Resolution VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Horizontal Vertical Resolution Pixels Lines 60 Hz 25.175 MHz 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz WVGA 70 Hz 33.75 MHz 16:9 Wide Video Graphic Array... -
Page 62: Cleaning
APPENDIX • Check your PC instruction book for information about connecting your PC to a display. • If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5KHz (horizontal). In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is disconnected). -
Page 63: Troubleshooting
APPENDIX 6.5 Troubleshooting Symptom Possible Cause Remedy No picture is displayed • The power cord has been 1 Plug in the power cord. disconnected. 2 Make sure the power switch is • The main power switch on switched on. the back of the display is not 3 Connect a signal connection to switched on. -
Page 64: Chapter 7: Specifications
CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications PM-48 Panel Panel Type LED-Backlit TFT LCD (VA Technology) Panel Size 47.6” Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.549 mm Brightness 350 cd/m Contrast Ratio 20,000,000:1 (DCR) Viewing Angle (H/V) 178°/178° Display Colour 1.07B... -
Page 65: Display Dimensions
1081.8outline dimension) 340.9 340.9 59.9 1058(opening dimension) (M6x10 ) X8 46.2 11.9 11.9 540.9 540.9 178.9 861.9 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2019 AG Neovo. All rights reserved. PM48A0_UM_V013...
