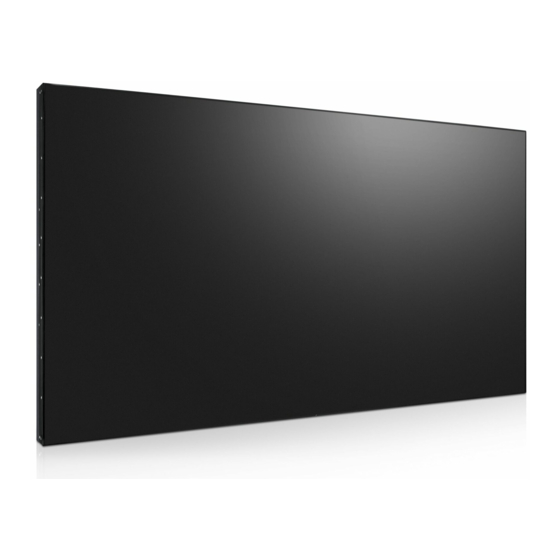

PN-55D & PN-55H LED-Backlit Display
User Manual
displays.agneovo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PN-55D and is the answer not in the manual?

Questions and answers

Summary of Contents for AG Neovo PN-55D

  • Page 1 PN-55D & PN-55H LED-Backlit Display User Manual displays.agneovo.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION ................1 Federal Communications Commission (FCC) Notice (U.S. Only) ............1 Polish Center for Testing and Certification Notice ..................2 Electric, Magnetic and Electromagnetic Fields (“EMF”) ................3 Information for U.K. only ........................... 4 North Europe (Nordic Countries) Information ................... 5 End-of-Life Disposal ..........................
  • Page 3 TABLE OF CONTENTS 2.3 Connecting External Equipment (DVD/VCR/VCD) ................24 2.3.1 Using COMPONENT Video Input ................... 24 2.3.2 Using Video Source Input ......................24 2.3.3 Using HDMI Video Input ......................25 2.4 Connecting Audio Equipment ......................25 2.4.1 Connecting External Speakers ....................25 2.4.2 Connecting an External Audio Device ..................
  • Page 4 6.3 Supported Resolution ......................... 66 6.4 Cleaning ............................. 67 6.5 Troubleshooting ..........................68 6.6 Transporting the LCD Display ......................69 CHAPTER 7: SPECIFICATIONS ..............70 7.1 Display Specifications ........................70 7.2 Display Dimensions ..........................71 7.2.1 PN-55D / PN-55H Dimensions ....................71...
  • Page 5: Safety Information

    SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 6: Polish Center For Testing And Certification Notice

    SAFETY INFORMATION Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source.
  • Page 7: Electric, Magnetic And Electromagnetic Fields ("Emf")

    SAFETY INFORMATION Electric, Magnetic and Electromagnetic Fields (“EMF”) • We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. • One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.
  • Page 8: Information For U.k. Only

    SAFETY INFORMATION Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows: Remove fuse cover and fuse. Fit new fuse which should be a BS 1362 5A,A.S.T.A.
  • Page 9: North Europe (Nordic Countries) Information

    SAFETY INFORMATION How to connect a plug The wires in the mains lead are coloured in accordance with the following code: BLUE - “NEUTRAL” (“N”) BROWN - “LIVE” (“L”) GREEN & YELLOW - “EARTH” (“E”) • The GREEN & YELLOW wire must be connected to the terminal in the plug which is marked with the letter “E”...
  • Page 10: End-Of-Life Disposal

    SAFETY INFORMATION End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
  • Page 11: Turkey Rohs

    SAFETY INFORMATION Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.
  • Page 12: Precautions

    PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •...
  • Page 13: Cautions When Using

    PRECAUTIONS Cautions When Using • Use only the power cord supplied with the LCD display. • The power outlet should be installed near the LCD display and Warning: be easily accessible. • If an extension cord is used with the LCD display, ensure that the Unplug the power cord from the power outlet and total current consumption plugged into the power outlet does not...
  • Page 14: Notice For The Lcd Display

    PRECAUTIONS Notice for the LCD Display • In order to maintain the stable luminous performance, it is recommended to use low brightness setting. • Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time.
  • Page 15: Chapter 1: Product Description

    CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Display Note: User Manual Remote control ♦ Remote control is shipped with the supplied AAA batteries.
  • Page 16: Preparing For The Installation

    PRODUCT DESCRIPTION 1.2 Preparing for the Installation • Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is required, please consult your service agent. Warning: • The product should be installed on a flat surface to avoid tipping. ♦...
  • Page 17: Wall Mounting Installation

    The equipment and its sure to consult the bracket manufacturer for installation location. associated mounting means still remain secure during the test. For use only with UL Listed Wall Mount Bracket with minimum weight/load: PN-55D=35.4 kg / PN-55H=32.9 kg.
  • Page 18: Ventilation Requirements For Enclosure Locating

    PRODUCT DESCRIPTION 1.4.2 Ventilation Requirements for Enclosure Locating To allow heat to disperse, leave space between surrounding objects as shown in the diagram below. 100 mm 100 mm 100 mm 100 mm 1.5 Mounting in Portrait Position This display can be installed in portrait position. Remove the table stand, if attached.
  • Page 19: Lcd Display Overview

    PRODUCT DESCRIPTION 1.6 LCD Display Overview 1.6.1 Control Panel MUTE INPUT MENU [ ] Down [ ] Power Move the highlight bar down to adjust the Turn the display on or put the display to selected item while OSD menu is on. standby.
  • Page 20: Input/Output Terminals

    PRODUCT DESCRIPTION 1.6.2 Input/Output Terminals 13 14 15 16 AC IN HDMI1 IN/ HDMI2 IN AC power input from the wall outlet. HDMI video/audio input. DVI IN Main power switch DVI-D video input. Switch the main power on/off. IR IN/ IR OUT DVI OUT / VGA OUT IR signal input / output for the loop-through DVI or VGA video output.
  • Page 21 PRODUCT DESCRIPTION AUDIO IN Audio input from external AV device (RCA). AUDIO OUT Audio output to external AV device. USB PORT Connect your USB storage device. EXT. SPEAKER TERMINAL Audio output to external speakers. OPS SLOT Slot for installing the optional OPS module.
  • Page 22: Remote Control

    PRODUCT DESCRIPTION 1.7 Remote Control POWER Turn the display on or to put the display into standby mode. 1.7.1 General Functions PLAY Control playback in multimedia mode. ] SOURCE Choose input source. Press the button to choose from USB, Network, HDMI 1, HDMI 2, DisplayPort, Card OPS, DVI-D, YPbPr, AV, or VGA.
  • Page 23: Id Remote Control

    PRODUCT DESCRIPTION 1.7.2 ID Remote Control To set the remote control ID: Press the ID button. The red LED blinks You can set the remote control ID when you twice. want to use this remote control on one of several Press the ID SET button for 3 seconds different displays.
  • Page 24: Inserting The Batteries In The Remote Control

    PRODUCT DESCRIPTION 1.7.3 Inserting the Batteries in the Remote Control Caution: The remote control is powered by two 1.5V AAA batteries. The incorrect use of batteries can To install or replace batteries: result in leaks or bursting. Be sure to follow these instructions: Press and then slide the cover to open it.
  • Page 25: Chapter 2: Making Connections

    CHAPTER 2: MAKING CONNECTIONS 2.1 Connecting the Power Connect one end of the power cord to the AC IN connector at the rear of the LCD display. Connect the other end of the power cord to a power outlet or a power supply. Set the Main Power switch to ON.
  • Page 26: Connecting A Computer

    MAKING CONNECTIONS 2.2 Connecting a Computer 2.2.1 Using VGA Input Connect one end of a D-sub cable to the VGA IN connector of the LCD display and the other end of a D-sub cable to the VGA OUT (D-Sub) connector of the computer. For audio input, connect one end of an audio cable to the AUDIO IN connector of the LCD display and the other end of an audio cable to the AUDIO OUT connector of the computer.
  • Page 27: Using Hdmi Input

    MAKING CONNECTIONS 2.2.3 Using HDMI Input Connect one end of an HDMI cable to the HDMI1 IN/ HDMI2 IN connector of the LCD display and the other end of an HDMI cable to the HDMI OUT connector of the computer. Computer RJ-45 HDMI1 IN...
  • Page 28: Connecting External Equipment (Dvd/Vcr/Vcd)

    MAKING CONNECTIONS 2.3 Connecting External Equipment (DVD/VCR/VCD) 2.3.1 Using COMPONENT Video Input Connect one end of a component cable to the COMPONENT IN connector of the LCD display and the other end of a component cable to the COMPONENT OUT connectors of the video player (DVR/VCR/VCD). For audio input, connect one end of an audio cable to the AUDIO IN connectors of the LCD display and the other end of an audio cable to the AUDIO OUT connectors of the video player (DVR/VCR/VCD).
  • Page 29: Using Hdmi Video Input

    MAKING CONNECTIONS 2.3.3 Using HDMI Video Input Connect one end of an HDMI cable to the HDMI1 IN/ HDMI2 IN connector of the LCD display and the other end of an HDMI cable to the HDMI out connector of the video player (DVR/VCR/VCD). RJ-45 HDMI1 IN HDMI2 IN...
  • Page 30: Connecting An External Audio Device

    MAKING CONNECTIONS 2.4.2 Connecting an External Audio Device Connect one end of an audio cable to the AUDIO OUT connector of the LCD display and the other end of an audio cable to the AUDIO IN connector of the audio device. AUDIO OUT AUDIO IN Audio Device...
  • Page 31: Connecting Multiple Displays In A Daisy-Chain Configuration

    MAKING CONNECTIONS 2.5 Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. Caution: To avoid unnecessary strain on the bezel, it is highly recommended to keep a minimum space of 0.5mm in which a business card is able to slip between all displays on all sides.
  • Page 32: Analog Video Connection

    MAKING CONNECTIONS Connect the DisplayPort OUT connector of DISPLAY 1 to the DisplayPort IN connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [DP] [DP IN] [DP OUT] [DP IN] Note: ♦ Before selecting the DisplayPort 1.1a (DP 1.1a) version, make sure the Tiling > Enable setting is set to Off.
  • Page 33: Ir Connection

    MAKING CONNECTIONS 2.6 IR Connection Connect the IR sensor cable to the IR IN connector of the LCD display. External IR Receiver [IR IN] Note: ♦ This display’s remote control sensor will stop working if the [IR IN] is connected. 2.7 IR Pass-Through Connection Connect one end of an IR extender cable to the IR OUT connector of the LCD display and the other end of an IR extender cable to the IR IN connector of the video player (DVR/VCR/VCD).
  • Page 34: Connecting To Wired Network

    MAKING CONNECTIONS 2.8 Connecting to Wired Network If you connect this LCD display to a home network, you can play photos, music, and videos from your computer. INTERNET ROUTER [RJ-45] [RJ-45] Computer To setup the network: Switch on the router and switch on its DHCP setting. Connect the router to the LCD display with an Ethernet cable.
  • Page 35: Chapter 3: Using The Lcd Display

    CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power POWER button Plug the power cord to a power Note: outlet or power supply. ♦ The LCD display still consumes Press the button to turn the power as long as the power cord is connected to the power LCD display on.
  • Page 36: Adjusting The Volume

    USING THE LCD DISPLAY 3.3 Adjusting the Volume Note: ♦ After pressing the button, the volume icon is displayed on the screen VOLUME buttons automatically. ♦ Press the button to mute the Press the button to adjust the volume. audio. 3.4 Changing the Picture Format Note: The available picture formats...
  • Page 37: Choosing Your Preferred Picture Settings

    USING THE LCD DISPLAY 3.5 Choosing Your Preferred Picture Settings Note: The available picture styles include: ♦ Personal: Apply your personalised picture settings. ♦ Vivid: Rich and dynamic settings, ideal for daytime viewing. ♦ Natural: Natural picture settings. ADJUST button ♦...
  • Page 38: Playing Multimedia Files Via Local Area Network

    USING THE LCD DISPLAY 3.7 Playing Multimedia Files via Local Area Network To play files via Local Area Network, you will need: • A wired home network, connected with a Universal Plug and Play (uPnP) router. • Optional: A LAN cable that connects your display to your home network. •...
  • Page 39: How To Use Dlna-Dmp

    USING THE LCD DISPLAY Set Up Media Sharing Install a media server on your computer to share media files. These are some media servers: • For PC: Windows Media Player 11 (or higher) or TVersity • For Mac: Twonky Switch on media sharing on your computer using the media server. For more information on how to set up the media server, refer to the website of the media server.
  • Page 40: How To Use Dlna-Dmr From Pc

    Sound Network configuration Tiling Static IP configuration General settings Digital Media Render... Network settings Network name PN-55D Cancel Done Done Clear Press the button, choose Network and press the button. On your PC, go to Network and Sharing Center, and click Choose homegroup and sharing options.
  • Page 41: Playing Multimedia Files From Usb Device

    USING THE LCD DISPLAY Now, go to the directory of your media files. Choose the media file by right click. On the submenu from Play To, You can find all displays connected to your network. Choose the display, and click the media file to play.
  • Page 42: Play Options

    USING THE LCD DISPLAY Choose the file you want. Press the button to start playing. Follow the on-screen instructions to control the play option. Press the PLAY buttons ( ) on the remote control to control the media playback. 3.9 Play Options 3.9.1 Playing Music Files Choose...
  • Page 43: Playing Movie Files

    USING THE LCD DISPLAY 3.9.2 Playing Movie Files Choose Movie in the top bar. Movie Choose a video, and press the button. • To play all the videos in a folder, choose one video file. Then, press the button to Play All. •...
  • Page 44: Playing Photo Files

    USING THE LCD DISPLAY 3.9.3 Playing Photo Files Choose Photo in the top bar. Photo Choose a photo thumbnail, then press the button. Start a Slideshow button to Play All. If there are multiple photos in a folder, choose a photo. Then, press the •...
  • Page 45: Chapter 4: On Screen Display Menu

    CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Operation Menu Navigation Control Panel Remote Control Press the MENU Display the main menu screen. Press the button. button. Picture Picture style Sound Restore style Tiling Backlight General settings Colour Network settings Sharpness...
  • Page 46 ON SCREEN DISPLAY MENU Operation Menu Navigation Control Panel Remote Control Exit the submenu. Press the button Press the button to return to to return to the the previous menu. previous menu. Close the OSD window. Press the MENU Press the button button again.
  • Page 47: Osd Menu Tree

    ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree Picture Picture style Sound Restore style Tiling Backlight General settings Colour Network settings Sharpness Noise reduction MPEG artifact reducti... Digital Crystal Clear Advanced Game or computer Format and edges Main Menu Submenu Remarks 1.
  • Page 48 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 3. Tiling • Enable See page 50. • H monitors • V monitors • Position • Frame comp. 4. General settings • Menu language See page 52. • Monitor ID • Eco mode •...
  • Page 49: Chapter 5: Adjusting The Lcd Display

    CHAPTER 5: ADJUSTING THE LCD DISPLAY 5.1 Picture Settings 1 Press the MENU button on the control Picture Picture style panel or the button on the remote Sound Restore style control to call out the OSD window. Tiling Backlight General settings Colour 2 Select Picture, then press the INPUT Network settings...
  • Page 50 ADJUSTING THE LCD DISPLAY Item Function Operation Range Noise Reduction Off Noise Reduction On Smoothen transitions and haziness Press the button on the MPEG artifact in the digital picture. control panel or the / button on the reduction remote control to select the setting. Note: The default value is Off.
  • Page 51 ADJUSTING THE LCD DISPLAY Item Function Operation Range • Color temp.: Change the colour balance. - Cool: Applies a bluish tint for cooler colours. - Normal: commonly used for normal Cool lighting conditions. Press the button on the Normal control panel or the / button on the - Warm: Applies a reddish tint for Warm warmer colours.
  • Page 52: Sound Settings

    ADJUSTING THE LCD DISPLAY Item Function Operation Range • Game: Choose when viewing content from a connected game console. • Computer: Choose when a Press the button on the computer is connected through Game or Game control panel or the / button on the HDMI.
  • Page 53 ADJUSTING THE LCD DISPLAY Item Function Operation Range Adjust to increase or decrease Press the button on the lower-pitched sounds. Bass -8 to +8 control panel or the / button on the Note: The default value is 0. remote control to adjust the value. Adjust to increase or decrease Press the button on the...
  • Page 54: Tiling Settings

    ADJUSTING THE LCD DISPLAY 5.3 Tiling Settings 1 Press the MENU button on the control Picture Enable panel or the button on the remote Sound H monitors control to call out the OSD window. Tiling V monitors General settings Position 2 Select Tiling, then press the INPUT Network settings Frame comp.
  • Page 55 ADJUSTING THE LCD DISPLAY Item Function Operation Range Adjust the position of this display in the screen matrix. Please see Press the button on the the Example1 and Example2 for 0 to 10 control panel or the / button on the reference.
  • Page 56: General Settings

    ADJUSTING THE LCD DISPLAY 5.4 General Settings 1 Press the MENU button on the control Picture Menu language panel or the button on the remote Sound Monitor ID control to call out the OSD window. Tiling Eco mode General settings Auto search 2 Select General settings, then press Network settings...
  • Page 57 ADJUSTING THE LCD DISPLAY Item Function Operation Range Choose to let this display detect Press the button on the and display available signal Auto search control panel or the / button on the sources automatically. Failover remote control to select the setting. Note: The default value is Off.
  • Page 58 ADJUSTING THE LCD DISPLAY Item Function Operation Range • Status: Enable or disable the Press the button on the schedule. control panel or the / button on the remote control to select the setting. Note: The default value is Off. HDMI 1 HDMI 2 •...
  • Page 59 ADJUSTING THE LCD DISPLAY Item Function Operation Range • Play setting: Choose the file to be included in the playlist. Note: ♦ Each playlist supports up to 30 files. ♦ Playlist will not be cleared after Factory settings. You have to manually remove the files or delete usb_schedulinglist.txt on the USB disk drive.
  • Page 60 ADJUSTING THE LCD DISPLAY Item Function Operation Range Use this function to automatically Press the button on the optimize the display of VGA input Cancel control panel or the button image. Auto adjust Start on the remote control to select the Note: This option is available only if setting.
  • Page 61 ADJUSTING THE LCD DISPLAY Item Function Operation Range Choose to enable or disable the button function of the remote control. • Unlock: Enable the button function of the remote control. • Lock all: Lock all button functions of the remote control. •...
  • Page 62 / button on the their ID number when multiple remote control to adjust the value. displays are connected. Note: The default value is 0. When enabled, the AG Neovo Press the button on the logo will be shown on the startup Logo control panel or the / button on the screen.
  • Page 63 ADJUSTING THE LCD DISPLAY Item Function Operation Range Set the cooling fan operation. • Off: Cooling fan is turned off. • On: Cooling fan is turned on all the time during the LCD display is in operation. • Auto: Cooling fan turns on when the LCD display temperature reaches 60°C (140°F).
  • Page 64: Network Settings

    ADJUSTING THE LCD DISPLAY 5.5 Network Settings 1 Press the MENU button on the control Picture View network settings panel or the button on the remote Sound Network configuration control to call out the OSD window. Tiling Static IP configuration General settings Digital Media Render...
  • Page 65 ADJUSTING THE LCD DISPLAY Item Function Operation Range • Press the INPUT button on the control panel or the button on the remote control on the network name field to open the on-screen keyboard. • Use the on-screen keyboard to enter the name.
  • Page 66: Chapter 6: Appendix

    CHAPTER 6: APPENDIX 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the the graphics card of the computer refresh rate of the graphics Cannot display this video mode is set too high. card.
  • Page 67: Usb Device Compatibility

    APPENDIX 6.2 USB Device Compatibility USB Video Subtitle Formats (for language subtitles, etc.). Max. Bit File Video Maximum Max. Frame Rate Rate Container Audio codec Extensions codec resolution (fps) (Mbps) MPEG-1 1920x1080 25p,30p,50i,60i MPEG- 1(L1&L2), MPEG-2 1920x1080 25p,30p,50i,60i .mpg MPEG-4 MPEG-1,2,2.5 1920x1080 25p,30p,50i,60i...
  • Page 68 APPENDIX Max. Bit File Video Maximum Max. Frame Rate Rate Container Audio codec Extensions codec resolution (fps) (Mbps) MPEG- 1(L1&L2), 1920x1080i@field MPEG-1,2,2.5 rate=50, 60Hz 1920x1080p@frame .m2ts AVCHD AAC/HE-AAC rate=24, 25,30Hz .mts (v1&v2), 1280x720p @ frame AC3,E-AC3, rate=50, 60Hz Dolby Pulse .m4v H.264 1920x1080...
  • Page 69 APPENDIX USB Multimedia Formats Frequency Max. Bit Rate File Maximum Container Video codec Audio codec Extensions resolution (kHz) (Mbps) MPEG-1,2,2.5 .mp3 .wma (V2 up to .asf V9.2) WMA,WMA .wma WMA Pro .wav(PC) LPCM LPCM .aif(mac) LPCM LPCM .aiff(mac) .aac AAC,HE- .mp4 1024 AAC(v1&v2)
  • Page 70: Supported Resolution

    APPENDIX 6.3 Supported Resolution VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz Wide Video Graphic WVGA 70 Hz 33.75 MHz...
  • Page 71: Cleaning

    APPENDIX • If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5KHz (horizontal). In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is disconnected). If so, press the [INPUT] button to enter the video mode. Also, make sure that the PC is connected.
  • Page 72: Troubleshooting

    APPENDIX 6.5 Troubleshooting Symptom Possible Cause Remedy No picture is displayed • The main power switch on 1 Plug in the power cord. the back of the display is not 2 Make sure the power switch is switched on. switched on. •...
  • Page 73: Transporting The Lcd Display

    APPENDIX 6.6 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging carton. 1 Put all the accessories in the box (if necessary). 2 Place the lower foam cushion inside the lower box (a). 3 Place the LCD display down in the lower box (a).
  • Page 74: Chapter 7: Specifications

    CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications PN-55D PN-55H Panel Panel Type LED-Backlit TFT LCD (IPS Technology) LED-Backlit TFT LCD (IPS Technology) Panel Size 54.6” 54.6” Max. Resolution FHD 1920 x 1080 FHD 1920 x 1080 Pixel Pitch 0.630 mm 0.630 mm...
  • Page 75: Display Dimensions

    607.25 606.15 (Outline dimension) 1213.40 (Opening dimension) 99.25 1209.90 M6xL10x4pcs 1.2(BEZEL) 38.85 406.70 400.00 406.70 56.65 2.3(BEZEL) AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2019 AG Neovo. All rights reserved. PN5HC0/PN5DB0_UM_V012...
