Summary of Contents for AG Neovo PM-48

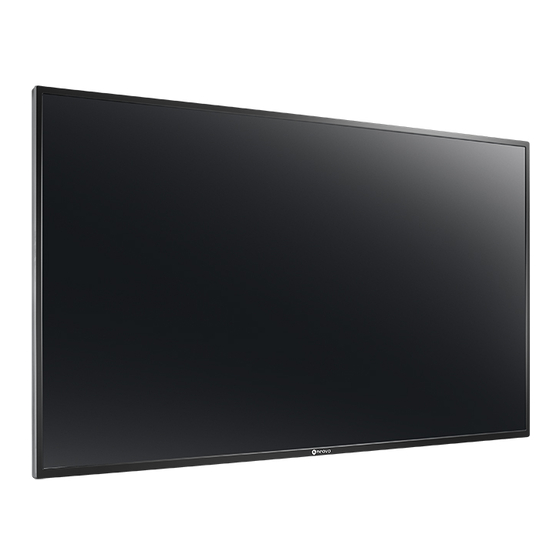

- Page 1 PM-48 LED-Backlit Display User Manual...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions ......................1 Legal Information ....................... 4 Chapter 1: Unpacking and Installation ................8 1.1. Unpacking ........................8 1.2. Package Contents ......................8 1.3. Preparing for the Installation ..................... 8 1.4. Wall Mounting Installation ....................9 1.4.1. - Page 3 Black Dot Defects ......................35 Adjacent Pixel Defects ....................35 Defective Pixel Tolerances ....................35 MURA ..........................36 Chapter 9: Cleaning and Troubleshooting ..............37 Cleaning .......................... 37 Troubleshooting ......................38 Chapter 10: Technical Specifications ................39 10.1 PM-48..........................39...
-
Page 4: Safety Instructions
Safety Instructions Safety Instructions Warnings and preventive measures Please carefully read the meanings of those safety signs. 注意 触电危险 勿開啟 注意：为防触电危险，勿 拆除机壳 (或背盖)。本产品内部无自助维修 零件。维修限由合格维修人员执行。 Notes: In order to avoid the risk of electric shock, do not remove the housing (or back cover). - Page 5 W Kg Model name W (kg) PM-48 11.52 For CB applications: Weight of the device without base: Wkg. The device and the associated components thereof keep safe during the testing (the wall-hanging components used can be seen in the table below).
- Page 6 Safety Instructions Electric field, magnetic field and electromagnetic field ("EMF") 1. Various consumptive products manufactured and sold by the company, like other electronic devices, generate and receive electromagnetic signals in general situations. 2. The most important enterprise principle of the company is to adopt various necessary health and safety measures during production of its products such that the products comply with all applicable regulatory requirements and applicable EMF standards.
-
Page 7: Legal Information
Legal Information Legal Information China RoHS 中国电子信息产品污染控制标识要求 (中国RoHS法规标示要求) 产品中有害物质的名称及含量。 有害物质 零部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 塑料外框 后壳 CCFL panel 电路板组件* 底座 电源线 其他线材 遥控器 *：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。 本表格依据SJ/T 11364的规定编制。 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下. 表示该有害物质至少在该部件的某一均质材料中的含量超出... - Page 8 Legal Information 仅适用于非热带气候条件下安全使用: 汉 文 仅适用于非热带气候条件下安全使用。 蒙 古 文 藏 文 维 文 文 Dan hab yungh youq gij dienheiq diuzgen mbouj dwg diegndat haenx ancienz sawjyungh. 壮 ≤2000m 仅适用于海拔2000m以下地区安全使用: 汉 文 仅适用于海拔2000m以下地区安全使用。 蒙 古 文 藏 文 维 文 文...
- Page 9 Legal Information North Europe (Nordic Countries) Information Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.
- Page 10 Legal Information Electronic wastes statement applicable to India If you see this sign on the product or the packing, this means that this product cannot be disposed together with other household wastes. You should be responsible for sending the waste devices to be disposed to the designated recycling points to recycle the waste appliances and electronic devices.
-
Page 11: Chapter 1: Unpacking And Installation
Chapter 1: Unpacking and Installation Chapter 1: Unpacking and Installation 1.1. Unpacking • This product is packed in a packaging box which contains standard accessories. • Other optional components are individually packed. • Considering the size and weight of the display, it is recommended that this product is carried out by two persons. -
Page 12: Wall Mounting Installation
Unpacking and Installation 1.4. Wall Mounting Installation To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America. Protective Sheet 保护性发泡垫... -
Page 13: Using The Remote Sensor And Power Status Indicator
Unpacking and Installation Ventilation Requirements for Enclosure Locating To allow heat to disperse, leave space between surrounding objects as shown in the diagram below. 100 mm 100 mm 100 mm 100 mm 1.5. Using the Remote Sensor and Power Status Indicator 1. -
Page 14: Chapter 2: Parts And Functions
Chapter 2: Parts and Functions Chapter 2: Parts and Functions 2.1. Control panel MUTE INPUT MENU ] Power button Turn the display on or put the display to standby. [Mute] button Enable/disables the mute function. [Enter] button Selects the input source. Used as the [ ] button while OSD menu is on. -
Page 15: Input/Output Terminals
Parts and Functions 2.2. Input/Output Terminals Main power button Notes: • This display’s remote control sensor Switch the main power on/off. will stop working if the [IR IN] jack is AC input connected. AC power input from the wall outlet. •... -
Page 16: Remote Control
Parts and Functions 2.3 Remote Control ] Power button Turn the display on or to put the display into 2.3.1 General Functions standby mode. [Play] button Control playback in multimedia mode. ] Input source button Press the button to select the input source. ] button to select USB, Press the [ ] or [... -
Page 17: Inserting The Batteries In The Remote Control
Parts and Functions 2.3.2 Inserting the Batteries in the Remote Control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open 2. Align the batteries according to the (+) and (-) indications inside the battery compartment. -
Page 18: Chapter 3: Connecting External Devices
Chapter 3: Connecting External Devices Chapter 3: Connecting External Devices 3.1 Connecting External Equipment (DVD/VCR/VCD) 3.1.1 Using COMPONENT Video Input Audio output 音讯输出 Component video COMPONENT 输出 output (YPbPr) (YPbPr) DVD / VCR / VCD [Audio input] [AUDIO IN] Component input [COMPONENT IN] (YPbPr) (YPbPr) -
Page 19: Using Hdmi Video Input
Connecting External Devices 3.1.3 Using HDMI Video Input DVD / VCR / VCD HDMI output HDMI Out [HDMI input] [HDMI IN] AC Input PC Input HDMI Input DVI Input VGA Input COMPONENT Input 3.2 Connecting a Computer 3.2.1 Using VGA Input VGA output VGA OUT D-Sub 15 pin... -
Page 20: Using Dvi Input
Connecting External Devices 3.2.2 Using DVI Input DVI output DVI OUT Audio output AUDIO OUT DVI input] [VGA Audio input] [DVI IN] [VGA AUDIO IN] AC Input PC Input HDMI Output DVI Input VGA Output COMPONENT Input 3.2.3 Using HDMI Input HDMI output HDMI OUT AC Input... -
Page 21: Connecting Audio Equipment
Connecting External Devices 3.3 Connecting Audio Equipment 3.3.1 Connecting External Audio Devices Stereo amplifier (YPbPr) STEREO AMPLIFIER COMPONENT OUT (YPbPr) DVD / VCR / VCD AUDIO OUT AUDIO IN AC IN PC Line IN HDMI IN DVI IN VGA IN COMPONENT IN 3.4 Connect Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such... -
Page 22: Ir Pass-Through Connection
Connecting External Devices 3.5 IR Pass-Through Connection [IR OUT] DVD / VCR / VCD [IR IN] (DVD / VCR / VCD) Remote control Remote Control 3.6 Connecting to Wired Network If you connect this display to a home network, you can play photos, music, and videos from the computer. -
Page 23: Chapter 4: Operation
Chapter 4: Operation Chapter 4: Operation Note: Unless particularly specified, the control buttons introduced in this section mainly refer to the buttons on the remote control. 4.1 Change the image format You can change the image format according to the video source. The input sources have respective available image formats. -
Page 24: Playing Multimedia Files From The Usb Device
Operation 2. Switch on media sharing on your computer using the media server. For more information on how to set up the media server, please visit the website of the media server. Play files 1. Press the button. 2. Select [Browse network], and then press the button. -
Page 25: Play Options
Operation Supported file systems: • FAT32 Supported file formats: • Music: MP3, WMA, M4A, AAC, AC3 • Movies: AVI, MP4, MOV, MPG/MPEG • Photos: JPEG, BMP , GIF Caution: • The manufacturer is not responsible for unsupported USB devices or data damage or losses in the device. -
Page 26: Playing Movie Files
Operation • {Shuffle On} / {Shuffle Off}: Enable or disable random play of tracks. To check the details of a song (for example, title, artist or duration), please select the song, and then press the button. To hide the details, please press the button again. -
Page 27: Playing Photo Files
Operation 4.3.3 Playing Photo Files 1. Select in the top bar. 2. Select a photo thumbnail, and then press the button. Date Info Play All Sort USB device Options Start a Slideshow If there are multiple photos in a folder, please select one photo and press {Play All}. •... -
Page 28: Chapter 5: Configuring The Settings
Chapter 5: Configuring the Settings Chapter 5: Configuring the Settings Using the Remote Control: 1. Press the button, and then the OSD menu appears. 2. Press the , , button to select the menu item or adjust its value. Press the button to confirm a selection. -
Page 29: Settings
Configuring the Settings 5.1 Settings 5.1.1 Picture Menu Picture Picture style Sound Restore style General Settings Backlight Network Settings Contrast Brightness Tint Color Sharpness Advanced Game or computer Format and edges Picture style Choose a predefined picture setting. Restore style Restore the last-selected predefined picture setting. -
Page 30: Sound Menu
Configuring the Settings Game or computer TWhen viewing content from a connected game console, choose {Game} to apply game settings. When a computer is connected through HDMI, choose {Computer}. Make sure that {Format and edges} {Picture format} and {Unscaled} is selected so as to view maximum detail. -
Page 31: General Settings
Configuring the Settings 5.1.3 General Settings Picture Menu language Sound Monitor ID General Settings ECO mode Network Settings Auto search Clock Schedule Sleep timer Auto shutdown ANTI-BURN-IN Control settings Startup logo Factory settings Menu language Choose language used for OSD menus. Monitor ID Adjust the ID number for controlling the display via the RS232C connection. -
Page 32: Network Settings
Configuring the Settings Control settings • {Local KB lock}: Choose to enable or disable the keyboard (control panel buttons) function of the display. • {Unlock}: Enable the keyboard function. • {Lock all}: Lock all keyboard function. • {Lock but volume}: Disable all the keyboard function except the buttons. -
Page 33: Chapter 6: Usb Device Compatibility
Chapter 6: USB Device Compatibility Chapter 6: USB Device Compatibility 6.1 USB Device Compatibility USB Video Subtitle Formats (for language subtitle, etc.) Maximum Filename Video Maximum frame rate Container Maximum resolution bit rate Audio codec extensions codec (fps) (Mbps) MPEG-1 1920x1080 25p,30p,50i,60i MPEG-1(L1&L2),... - Page 34 USB Device Compatibility Maximum Filename Video Maximum frame rate Container Maximum resolution bit rate Audio codec extensions codec (fps) (Mbps) H.264 1920x1080 25p,30p,50p,60p,60i AAC/HE-AAC 1,920x1,080i, field (v1&v2), .ism/ rate=50, 60Hz Manifest frag MP4 AC3,E- 1,920x1,080p, frame .mpd AC3,WMA, rate=24, 25,30Hz WMA-PRO 1,280x720p @ frame rate=50, 60Hz...
- Page 35 USB Device Compatibility USB Photo Formats Filename Container Video Maximum resolution Frequency Maximum Audio extension codecr bit rate codec jpg/jpeg JPEG Base line: Color mode = 444, Size <=32768x16128 Color mode = 422v, Size <= 16384x16128 Color mode = Others, not sup- ported 4096x3072_4bit, 2730x2500_8bit,...
-
Page 36: Chapter 7: Input Mode
Chapter 7: Input Mode Chapter 7: Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Horizontal Vertical Resolution pixels lines 60Hz 25.175 MHz 72 Hz 31.5 MHz Video graphic array 75 Hz 31.5 MHz WVGA 70 Hz 33.75 MHz... -
Page 37: Chapter 8: Defective Pixel Policy
Chapter 8: Defective Pixel Policy Chapter 8: Defective Pixel Policy We employ some most advanced manufacturing processes in the industry, insist on strict quality control, and provide the best products. However, pixel or sub-pixel defects appearing on the PDP/ TFT panels used as the plasma display or liquid crystal display are sometimes inevitable. No manufacturer can ensure that all panels have no pixel defects, but we guarantees to repair the plasma displays and the liquid crystal displays with any defects of which the number exceeds the acceptable level within the warranty period according to the local guarantee terms. -
Page 38: Black Dot Defects
Defective Pixel Policy A lit red, green or blue sub- Two adjacent lit sub-pixels Three adjacent lit sub-pixels pixel (one white pixel) Red + Blue = Purple Red + Green= Yellow Green + Blue = Green (Light blue) 8.4 Black Dot Defects Black dot defect refers to there is (are) a pixel(s) or a sub-pixel(s) which is (are) always black or "off". -
Page 39: Mura
Defective Pixel Policy 8.7 MURA The panels of some liquid crystal displays (LCD) sometimes have black points or spots. The Mura phenomenon known in the industry is a Japanese expression of "non-uniformity". It is used to describe an irregular pattern or area. In the area, the phenomenon of non-uniform brightness appears on the screen under specific conditions. -
Page 40: Chapter 9: Cleaning And Troubleshooting
Chapter 9: Cleaning and Troubleshooting Chapter 9: Cleaning and Troubleshooting 9.1 Cleaning Caution When Using the Display • Keep your hands or face or other objects away from the vent hole of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. -
Page 41: Troubleshooting
Cleaning and Troubleshooting 9.2 Troubleshooting Trouble Possible causes Solutions No picture is displayed 1. The power cord has been 1. Plug the power cord. disconnected. 2. Ensure that the power switch is 2. The main power switch on the back switched on. -
Page 42: Chapter 10: Technical Specifications
Chapter 10: Technical Specifications Chapter 10: Technical Specifications 10.1 PM-48 Display PM-48 1054.08 (H) x 592.92 (V) Screen Size (Active Area) 16:9 Aspect Ratio 1920 (H) x 1080 (V) Number of Pixels 0.549 (H) x 0.549 (V) Pixel Pitch Displayable Colors... - Page 43 Output Sound Pressure 160 Hz - 13 KHz Frequency Response Note: All specifications are subject to change without prior notice. Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. PM-48_UM_V010 Copyright © 2017 AG Neovo. All Rights Reserved.
