WPE-57VJZ-A
4K-HDR HDMI Wall Plate Extender over Single Cat.X
with HDBaseT-Lite, RS-232, Bi-directional IR, PoC &
ARC
User Manual

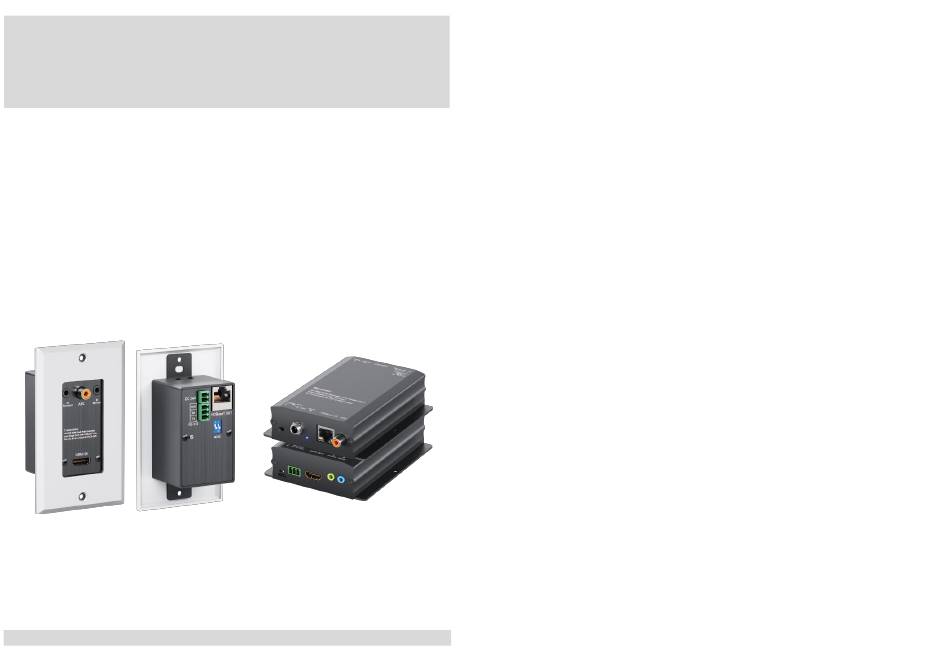

Transmitter
Receiver
rev: 200803
Made in Taiwan
TABLE OF CONTENTS
INTRODUCTION .................................................................................................................1
FEATURES .........................................................................................................................1
PACKAGE CONTENTS ......................................................................................................2
SPECIFICATIONS...............................................................................................................3
CONNECTION DIAGRAM ...................................................................................................4
PANEL DESCRIPTIONS .....................................................................................................5
IR PASS-THROUGH ...........................................................................................................6
HDMI PIN DEFINITION .......................................................................................................7
HARDWARE INSTALLATION .............................................................................................7
NOTICE ...............................................................................................................................8
WARRANTY ........................................................................................................................9
Advertisement
Table of Contents
Related Manuals for GoMax Electronics WPE-57VJZ-A
Summary of Contents for GoMax Electronics WPE-57VJZ-A
- Page 1 TABLE OF CONTENTS WPE-57VJZ-A INTRODUCTION .........................1 FEATURES .........................1 PACKAGE CONTENTS ......................2 SPECIFICATIONS.......................3 4K-HDR HDMI Wall Plate Extender over Single Cat.X CONNECTION DIAGRAM ....................4 with HDBaseT-Lite, RS-232, Bi-directional IR, PoC & PANEL DESCRIPTIONS .....................5 IR PASS-THROUGH ......................6 HDMI PIN DEFINITION .......................7 HARDWARE INSTALLATION .....................7...
- Page 2 Bi-directional IR, PoC & ARC boosts up your video/audio transmission distance up to 70m (230ft) in HDTV 1080p with 36-bit color depth and 40m (131ft) at 4K-HDR. WPE-57VJZ-A has new generation technology which makes sure the HDBaseT extender can support HDMI2.0a and HDCP2.2. WPE-57VJZ-A also The length depends on the characteristics and quality of the cables.
- Page 3 SPECIFICATIONS CONNECTION DIAGRAM Model Name WPE-57VJZ-A Technical WPE-57VJZ-A[Tx] WPE-57VJZ-A[Rx] Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 & 1.4 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
- Page 4 Incorrect placement of IR Blaster and Receiver may result in the failure of the 6. RJ45: Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit WPE-57VJZ-A-RX IR extenders. Please check carefully before plugging in the IR extender to the CAUTION! respective IR sockets.
- Page 5 1. Connect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting unit WPE-57VJZ-A-TX. 2. Connect a HDMI or DVI display (such as a LCD TV) to the receiving unit WPE-57VJZ-A-RX. 3. Connect IR Blaster/Receiver to both TX and RX units.
- Page 6 WARRANTY The SELLER warrants the WPE-57VJZ-A 4K-HDR HDMI Wall Plate Extender over Single Cat.X with HDBaseT-Lite, RS-232, Bi-directional IR, PoC & ARC free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail...
