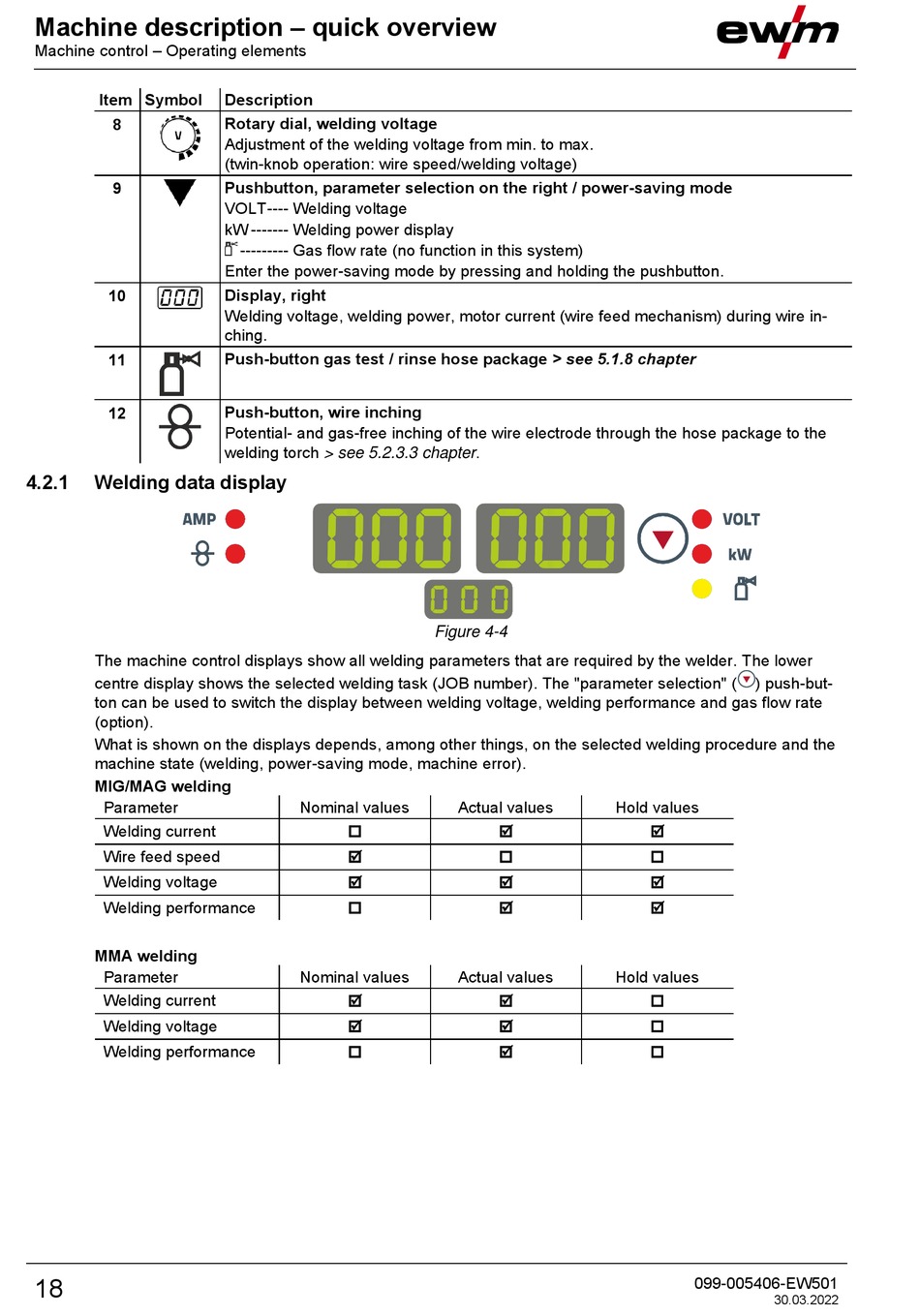

Machine description – quick overview
Machine control – Operating elements
Item Symbol
8
9
10
11
12
4.2.1

Welding data display

The machine control displays show all welding parameters that are required by the welder. The lower
centre display shows the selected welding task (JOB number). The "parameter selection" (
ton can be used to switch the display between welding voltage, welding performance and gas flow rate
(option).
What is shown on the displays depends, among other things, on the selected welding procedure and the
machine state (welding, power-saving mode, machine error).
MIG/MAG welding
Parameter
Welding current
Wire feed speed
Welding voltage
Welding performance
MMA welding
Parameter
Welding current
Welding voltage
Welding performance
18
Description 0
Rotary dial, welding voltage
Adjustment of the welding voltage from min. to max.
(twin-knob operation: wire speed/welding voltage)
Pushbutton, parameter selection on the right / power-saving mode
VOLT ---- Welding voltage
kW ------- Welding power display
--------- Gas flow rate (no function in this system)
Enter the power-saving mode by pressing and holding the pushbutton.
Display, right
Welding voltage, welding power, motor current (wire feed mechanism) during wire in-
ching.
Push-button gas test / rinse hose package > see 5.1.8 chapter
Push-button, wire inching
Potential- and gas-free inching of the wire electrode through the hose package to the
welding torch > see 5.2.3.3 chapter.
Nominal values




Nominal values



Figure 4-4
Actual values




Actual values



) push-but-
Hold values




Hold values



