Design and function

MIG/MAG welding

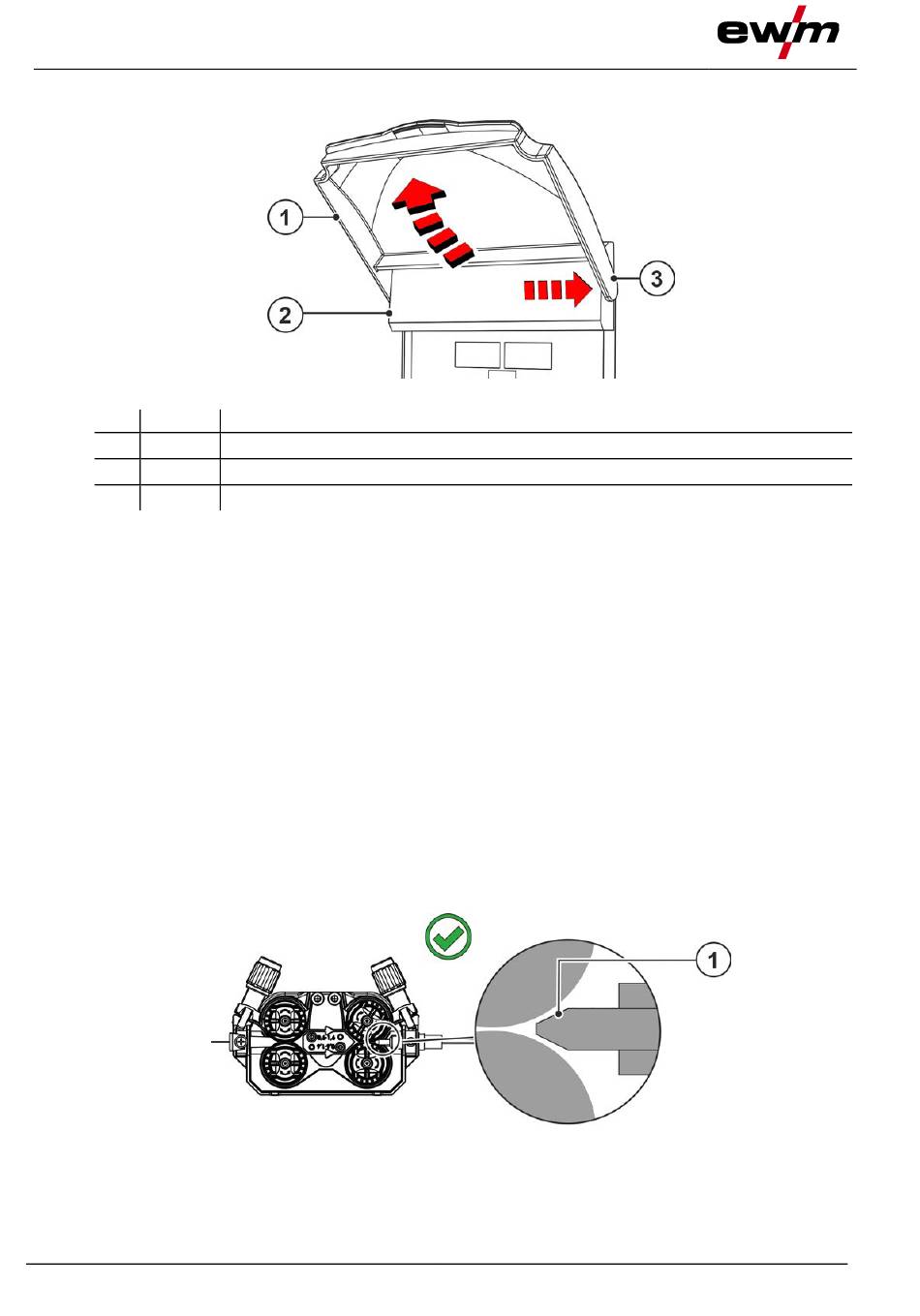

5.1.10 Protective flap, welding machine control

Item Symbol
1
2
3
• Push the right-hand bracket of the protective cap to the right and remove the protective cap.
5.2 MIG/MAG welding
5.2.1

Assemble the wire guide

The Euro torch connector is factory-fitted with a guide tube for welding torches with steel liner. Conver-
sion is necessary if a welding torch with a steel liner is used!
• Operate welding torches with a liner > with a guide tube!
• Operate welding torches with a steel liner > with a capillary tube!
Depending on the wire electrode diameter or type, either a steel liner or liner with the correct inner
diameter must be inserted in the torch!
Recommendation:
• Use a steel liner when welding hard, unalloyed wire electrodes (steel).
• Use a chrome nickel liner when welding hard, high-alloy wire electrodes (CrNi).
• Use a plastic or teflon liner when welding or brazing soft wire electrodes, high-alloy wire electrodes or
aluminium materials.
Preparation for connecting welding torches with a spiral guide:
• Check that the capillary tube is correctly positioned in relation to the central connector!
28
Description 0
Protective cap
Lid
Bracket, protective cap
Figure 5-12
Figure 5-13
