OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Instructions to be followed in the event user smells
gas. This information shall be obtained by consulting your local gas
supplier. As a minimum, turn off the gas and call your gas company and
your authorized service agent. Evacuate all personnel from the area.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION

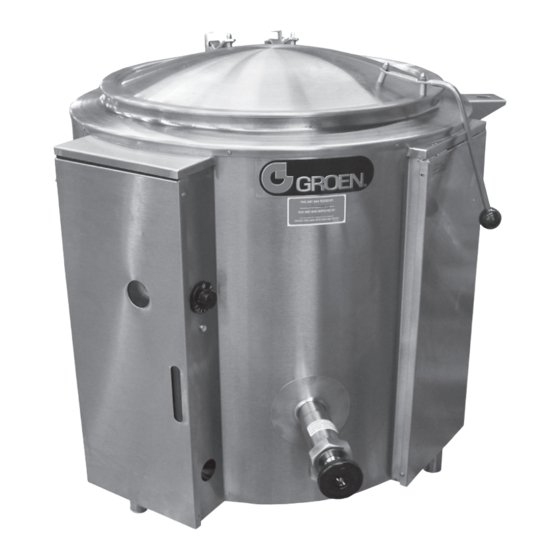

Groen Model EE are floor-mounted, tilting, steam-jacketed kettles which have
thermostatically controlled, self-contained, electrically-heated steam supplies
and appropriate controls, mounted on a sturdy base. Heat produced by electric
heating elements boils water in a reservoir below the jacket to produce steam
under pressure.
The kettle is surrounded by air-insulated stainless steel sheathing. Stainless
steel panels enclose all of the controls. Three stainless steel, tubular legs
support the unit.
EE kettles are available in 20, 40, 60, 80 and 100 gallon capacities. Kettle bodies
are welded into one piece. Models are all equipped with a sanitary tangent
draw-off (product faucet) valve and a stainless steel strainer. This standard
draw-off is two inches in diameter, and uses a compression disc valve. The unit
is controlled with a thermostat, which turns electric power on or off, and sets
the cooking temperature.
Instruments are provided to show what is happening inside the unit:
• Water gauge glass: shows the level of water within the steam jacket
• Pressure/vacuum gauge: shows the steam pressure and if there is air in the
jacket
• Indicator lamp: Lights when the kettle is being heated
This manual provides information for:
STEAM JACKETED KETTLE
MODELS EE DOMESTIC
REFERENCES
KLENZADE SALES CENTER ECOLAB, Inc.
370 Wabasha
St. Paul, Minnesota 55102
800/352-5326 or 612/293-2233
NFPA/70 The National Electrical Code
NATIONAL FIRE PROTECTION ASSOCIATION
60 Battery March Park
Quincy, Massachusetts 02269
ECONOMICS LABORATORY, INC.
St. Paul, Minnesota 55102
Automatic controls within the unit:
• Contactor: Controlled by the thermostat, turns heating element power on or off
• Low-water cutoff: Turns off power to keep heating elements from overheating
if water loss exposes them above the water level.
• Safety valve: Releases steam if jacket pressure gets too high
The jacket is filled at the factory with water that contains rust inhibitors. When
air is removed from the jacket, the kettle efficiently provides a uniform heating
temperature range of 150oF to approximately 270oF (65 to 132oC). This range
allows the kettle to be used for warming, simmering, boiling or braising.
The interior of the kettle is polished to a 180 emery grit finish and the exterior is
given a uniform Number 4 finish. The unit is ASME shop inspected and registered
with the National Board for working pressures up to 30 PSI.
Optional equipment for the EE and AE kettles includes:
• Three inch draw-off valve
• 1/4" perforated or solid disc strainer
• Basket inserts (TRI-BC)
The information in this document is Confidential and shall not be disclosed to any third party without the express written
consent of Unified Brands. Information contained in this document is known to be current and accurate at the time of printing/
creation. Unified Brands recommends referencing our product line websites, unifiedbrands.net, for the most updated product
information and specifications. © 2022 Unified Brands. All Rights Reserved.
PART NUMBER 147399, REV. G (02/21)
NSF INTERNATIONAL
798 N. Dixboro Rd.
P.O. Box 130140
Ann Arbor, Michigan 48113-0140
UNDERWRITERS LABORATORIES, INC.
333 Pfingsten Road
Northbrook, Illinois 60062
ZEP MANUFACTURING CO.
1310-T Seaboard Industrial Blvd.
Atlanta, Georgia 30318
• Water fill faucets
• Automatic water filler
• Kettle brush kit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EE DOMESTIC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Groen EE DOMESTIC

  • Page 1 Manufacture Service/Questions 888-994-7636. St. Paul, Minnesota 55102 EQUIPMENT DESCRIPTION Groen Model EE are floor-mounted, tilting, steam-jacketed kettles which have Automatic controls within the unit: thermostatically controlled, self-contained, electrically-heated steam supplies • Contactor: Controlled by the thermostat, turns heating element power on or off and appropriate controls, mounted on a sturdy base.
  • Page 2: Inspection And Unpacking

    CLEANER TO BE USED. DIRECT CONTACT COULD RESULT IN SEVERE BURNS. CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN CAUTION: DO NOT OVER FILL THE KETTLE WHEN COOKING, HOLDING OR CLEANING. OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE OPERATOR INJURY AND KEEP LIQUIDS A MINIMUM OF 2-3”...
  • Page 3: Initial Start-Up

    INITIAL START-UP The Groen cooker/mixer is provided with complete internal wiring. It is ready for immediate connection. The completed unit was operated at the factory to check IMPORTANT: BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE the controls, mixer and jacket heater.
  • Page 4 CLEANING TO START KETTLE 1. EVERY DAY make sure the jacket water level is between the marks on the WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS AND ELECTRICAL gauge glass. If the level is too low, see “Jacket Filling and Water Treatment”. EQUIPMENT.
  • Page 5: Maintenance

    WATER TREATMENT PROCEDURE LABEL OF THE WATER TREATMENT COMPOUND. 1. Obtain water treatment compound and a pH test kit from your Groen distributor. 2. Fill a mixing container with the measured amount of water required. (See table). Distilled water is recommended.
  • Page 6: Sequence Of Operation

    Service Rep ground short or open element. If element is If steam pressure greater than 30 PSI is generated in the jacket, the safety valve Only defective, call Groen. will open and relieve the excess pressure. User a. Thermostat dial setting.
  • Page 7: Warranty

    RESULTING FROM OR ARISING OUT OF THE USE OF HANDLING OF THIS PRODUCT, SHALL BE THE RETURN OF THE PURCHASE PRICE OR AN AMOUNT NOT TO EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT OR, AT THE ELECTION OF UNIFIED BRANDS OR THE SELLER, THE REPLACEMENT OF THE PRODUCT. https://unifiedbrands.net/ Groen-Warranty-Information OM-EE...
  • Page 8 Parts List OM-EE...
  • Page 9 Parts List Description Part # Description Part # WATER FILL ASSEMBLY 097007 WATER LEVEL PROBE 20, 40, 60 074665 SAFETY VALVE 097009 WATER LEVEL PROBE 80, 100 150104 CHECK VALVE 004187 ELEMENT, 208V 3KW 008852 PRESSURE GAUGE 084208 ELEMENT, 240V 4KW 008851 KBA 2”...
  • Page 10 EE-20, 40 Wiring Diagram 888-994-7636 OM-EE...
  • Page 11 EE-60, 80, 100 Wiring Diagram 888-994-7636 OM-EE...
  • Page 12 Service Log Model No: Purchased From: Serial No: Location: Date Purchased: Date Installed: Purchase Order No: For Service Call: Date Maintenance Performed Performed By OM-EE...
