OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Instructions to be followed in the event user smells
gas. This information shall be obtained by consulting your local gas
supplier. As a minimum, turn off the gas and call your gas company and
your authorized service agent. Evacuate all personnel from the area.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION

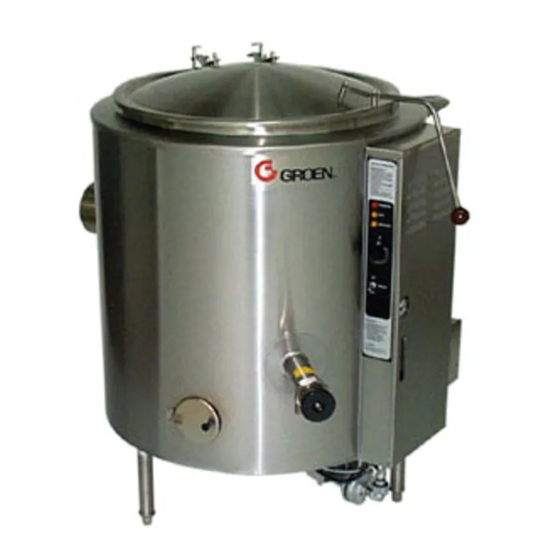

AH/1 steam kettles are stainless steel, floor mounted kettles with a self-
contained steam source heated by gas. A closed steam jacket covers the lower
portion of the kettle. Heat from the gas burner boils water in the jacket to
produce steam under pressure. To ignite the burners, the kettle uses electronic
spark ignition.
The kettles are stationary (non-tilting). Liquids can be removed through the
tangent draw-off valve.
Exposed surfaces are stainless steel. Insulated sheathing protects the kettle
body, and a housing encloses the controls. Three tubular legs support the unit.
Bullet feet adjust to level the kettle.
A one piece dome cover is hinged to the kettle on the 20-gallon model. Covers
for 40, 60, 80, and 100-gallon kettles are supplied with counterbalancing spring
actuators to hold the covers in the fully open or closed position.
Controls provided include the ON/OFF switch, to control electric power for the
unit, and the thermostat, to set the cooking temperature. The automatic controls
and a brief description of each are as follows.
1. Gas pressure regulator: Protects the unit from high pressure in the gas
supply line.
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands recommends
referencing our product line websites, unifiedbrands.net, for the most updated product information and specifications. © 2018 Unified
Brands. All Rights Reserved. Unified Brands is a wholly-owned subsidiary of Dover Corporation.
This manual provides information for:
AH/1E DOMESTIC
STEAM JACKETED KETTLE WITH
STANDARD ELECTRONIC IGNITION
REFERENCES
CSA AMERICA INC
8501 East Pleasant Valley Road
Cleveland, Ohio 44131
NSF INTERNATIONAL
798 N. Dixboro Rd. / P.O. Box 130140
Ann Arbor, Michigan 48113-0140
NSF/ANSI 4
ANSI Z83.11
NATIONAL FIRE PROTECTION ASSOCIATION
60 Battery March Park
Quincy, Massachusetts 02269
2. Automatic gas valves: Allow gas into the burners as needed.
3. Pressure limit switch: Turns off the burner when jacket pressure reaches 27
PSI. Lights the burner when pressure drops to 22 PSI.
4. Safety valve: Lets steam out of the jacket if the steam pressure exceeds 30
PSI.
5. Low-water cutoff: Turns off the burner if the water level in the jacket gets
too low for safe operation.
Instruments also are provided to show what is happening inside the unit. These are:
1. Water level sight glass: Indicates whether there is enough water in the
steam jacket.
2. Pressure/vacuum gauge: Shows steam pressure, and whether too much air
has entered the jacket.
3. Heating indicator light: Indicates that the kettle is being heated.
4. Power on indicator light: Glows when the unit is turned on.
5. Low water indicator light: Lights to show that jacket water needs to be
replenished.
PART NUMBER 121051, REV. M (12/18)
· Self Contained
· Gas Heated
· Floor Mounted
· Stationary
NFPA/70 The National Electrical Code
NFPA/54 Installation Gas Appliances &
Piping
AMERICAN NATIONAL STANDARDS INST., INC
1430 Broadway
New York, New York 10018
Z223.1-1984 National Fuel Gas Code
Z21.30 Installation of Gas Appliances &
Piping
