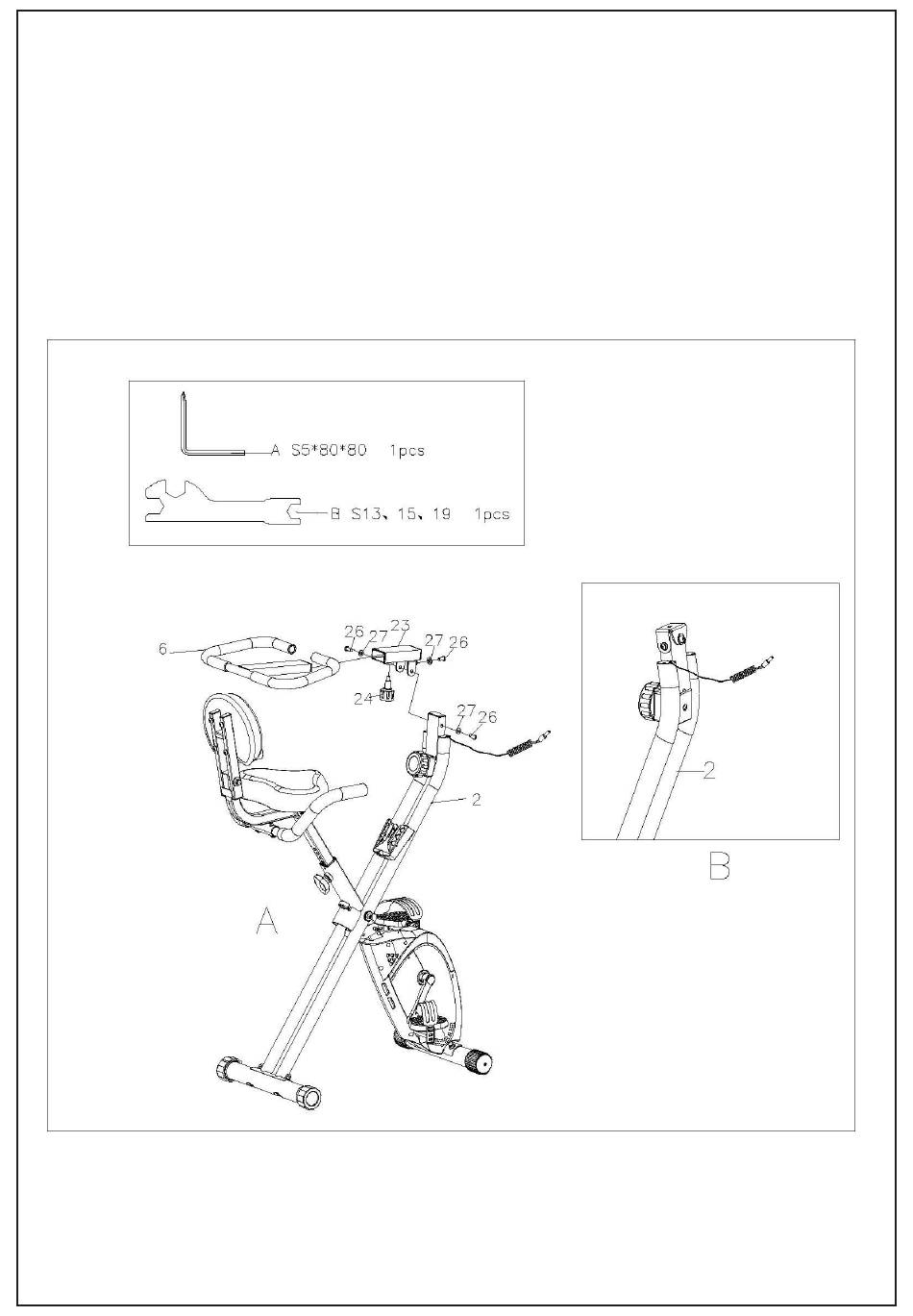

Step 6:
6.1
Pull out Inner Hexagon Pan Bolt (26) Flat Washer（27）from Front Support Tube（2).
6.2
Fix Adjustable Tube Shroud (23) to Front Support Tube (2), then keeping the holes aligned,
lock the Adjustable Tube Shroud (23) well into Front Support Tube (2) by using Inner Hexagon
Pan Bolt (26) and Washer (27).
6.3
Insert the adjustable tube of the Handlebar (6) through the Adjustable Tube Shroud (23), align
the holes and lock adjustable tube of Handlebar (6) and Adjustable Tube Shroud (23) together
using the Small Knob (24).
Page 12 of 16
