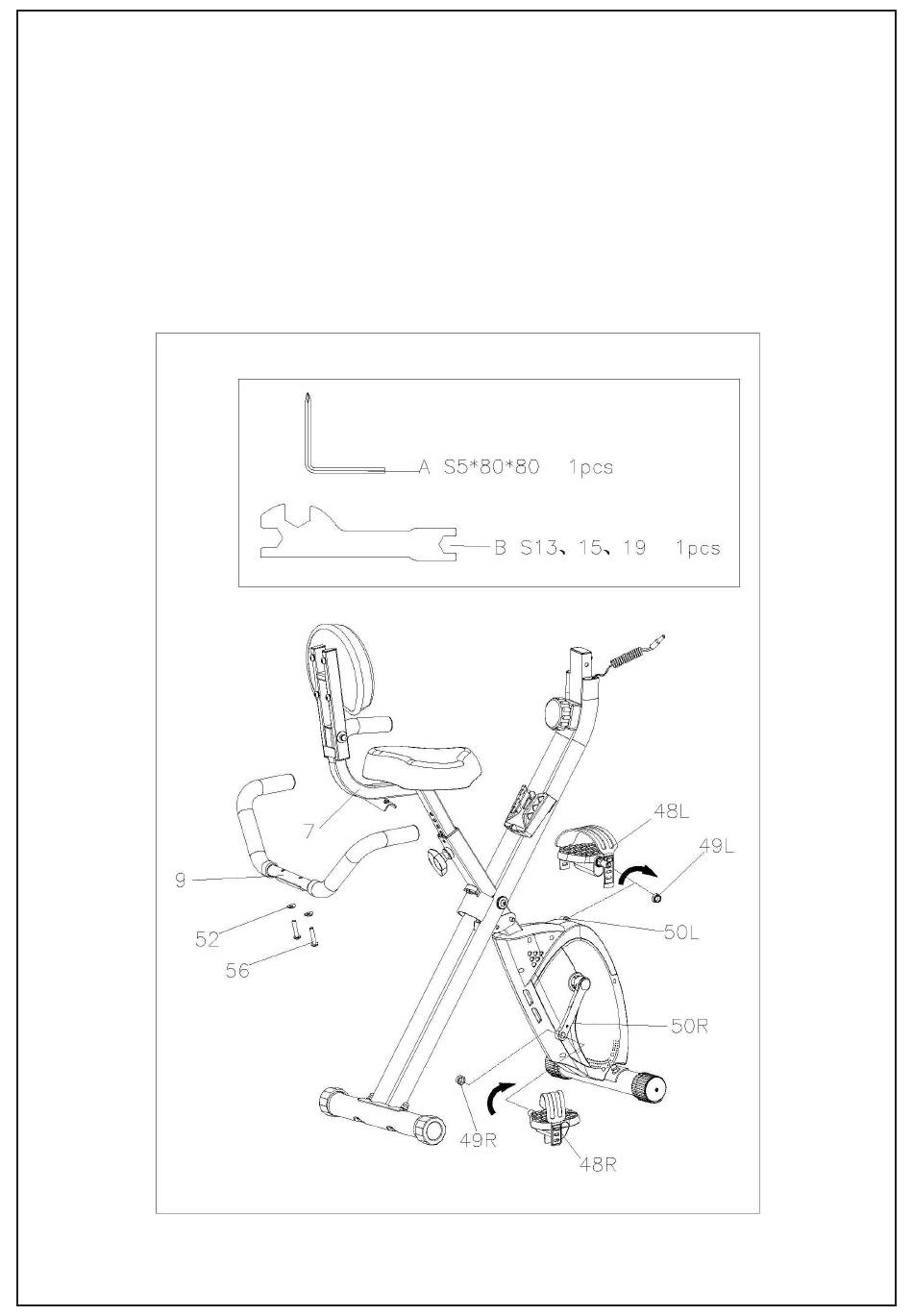

Step 5:
5.1
Pull out Arced Washer (52) Inner Hexagon Pan Screw (56) from Rear Handlebar (9) then lock Rear
Handlebar (9) into Seat Bracket (7) by using Arced Washer (52) Inner Hexagon Pan Screw（56).
5.2
Lock Pedal (48L) and Pedal (48R) into Crank (50L) and Crank (50R) respectively.
5.3
Lock Nylon Nut (49L) and Nylon Nut (49R) well.
Note: The right pedal (48R) should be turned clockwise when lock Pedal, and the left pedal (48L)
should be turned anti-clockwise into the respective cranks. Ensure both pedals are locked securely
otherwise it will cause the teeth of Pedals to break.
Page 11 of 16
