IP PBXs USER MANUAL
IP PBXs User Manual
IP PBXs
User Manual
Models:
PBX-C301, PBX-C302, PBX-C503
www.fs.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBX-C301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FS PBX-C301

Summary of Contents for FS PBX-C301

  • Page 1 IP PBXs USER MANUAL IP PBXs User Manual IP PBXs User Manual Models: PBX-C301, PBX-C302, PBX-C503 www.fs.com...

  • Page 2: Table Of Contents

    1 Safety Notice ................................1 2 Overview ................................... 2 2.1 Brief Introduction ....................................... 2 2.2 Modules ........................................2 2.3 Mechanical Design ......................................5 2.3.1 PBX-C301 ................................................5 2.3.2 PBX-C302 and PBX-C503 ..........................................6 2.4 Key Features ........................................ 8 2.5 Environmental Requirements ................................... 8 3 Getting Started .................................9 3.1 Quick Setup Wizard .....................................9...
  • Page 3 11.2.2 Conference Recordings ..................................69 11.2.3 One Touch Recordings ..................................70 11.3 System Logs ......................................70 11.3.1 Fax Logs ................................................ 70 11.3.2 Web Access Logs ............................................70 11.3.3 Advanced Logs ............................................71 12 System ...................................72 12.1 Storage................................................72 12.1.1 USB Storage..............................................72 www.fs.com...
  • Page 4 13.3.2 Traceroute..............................................103 13.3.3 Ethernet Capture ............................................. 104 13.3.4 Channel Monitor............................................104 13.3.5 Remote Management ..........................................105 13.4 Backup ........................................105 13.5 Reboot and Reset ....................................105 13.5.1 Reboot .................................................105 13.5.2 Reset................................................106 14 Addons ................................107 14.1 Proxy ........................................107 www.fs.com...

  • Page 5: Safety Notice

    12. Ensure the unit is installed in a well-ventilated room to avoid overheating. 13. Before you work on any equipment, be aware of any hazards involved in electrical circuitry and be familiar with standard practices for preventing accidents if you are in a situation that could cause physical injury. www.fs.com...

  • Page 6: Overview

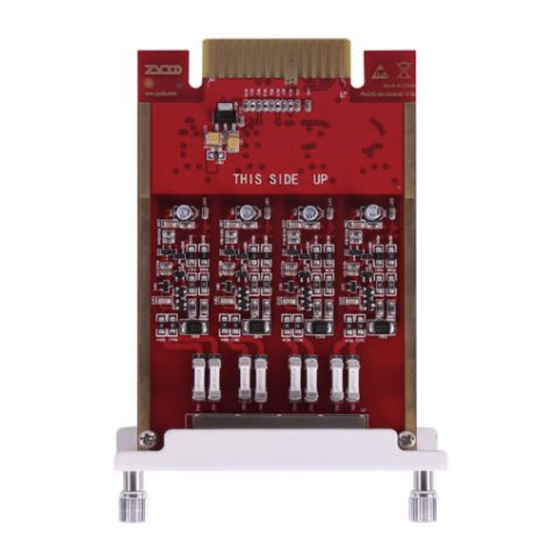

    Modules  4FXO Module 4FXO module provides 4 FXO interfaces for connecting PSTN lines provided by the telecom. It can be installed on two slots of PBX-C301, PBX-C302 and PBX-C503 and provides maximal 8 FXO interfaces.  4FXS Module 4FXS module provides 4 FXS interfaces for connecting fax machines or analog phones.
  • Page 7 IP PBXs USER MANUAL 2FXOS module provides 2 FXO and 2 FXS interfaces, it can be installed on two slots of the PBX-C301, PBX-C302 and PBX-C503. With 2FXOS module installed it enables to IPPBX system with FXO to FXS lifeline feature, when there’s power failure, you may still use the analog phone to make and receive phone calls.
  • Page 8 IP PBXs USER MANUAL 2WCDMA/4WCDMA module provides 2/4 GSM/3G voice channels, it can be installed on PBX-C301, PBX-C302 and PBX-C503 for making and receiving phone calls from GSM/3G network. It is designed with SIM5320 series module for global market, SIM5320 is Dual-Band WCDMA and Quadband GSM engine that works on frequencies UMTS 850MHz, UMTS 900MHz, UMTS 1900MHz, UMTS 2100MHz, GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz.

  • Page 9: Mechanical Design

    You can install 2 E1/T1 modules on both PBX-C302 and PBX-C503. If it’s going to be installed with other modules (4FXO, 4FXS, 2FXOS, 2/4GSM, 2/4WCDMA) it should be installed on SLOT2. And E1/T1 module cannot be installed with BRI module on the same PBX-C302 or PBX-C503. Mechanical Design 2.3.1 PBX-C301  Hardware configurations PBX-C301 1 * Reset Button...

  • Page 10: Pbx-C302 And Pbx-C503

    Channel available Channel failure SLOT (SLOT1/2) Status Channel available Channel failure WCDMA Channel available Channel failure 2.3.2 PBX-C302 and PBX-C503  Hardware Configurations  PBX-C503 Front View Name Specification LED Indicators Indicate the system activaty and interface connection status. www.fs.com...
  • Page 11 Module Loading Succeed Slot1 and Slot2 Module Loading Failure States L2/L3 Red/Off CPE Signaling E1/T1 Green/Off NET Signaling (PRI/R2) Off/Red SS7 Signaling Off/Green R2 Signaling Green Connected (No Alarm) Disconnected (Alarm) TE Mode Green NT Mode Module Loading Failure www.fs.com...

  • Page 12: Key Features

    VPN Client (PPTP/OpenVPN)  DDNS(Dyndns.org/No-ip.com/zoneedit.com/ freedns.afraid.org/www.oray.com/ 3322.org)  IP Phone Provisioning ( Akuvox, Cisco, Escene, Fanvil, Flying Voice, Grandstream, Htek, MOCET, Snom, Yealink) Environmental Requirements Operating Temperature: 0 °C ~40 °C Storage Tempreture: -20 °C ~ 55 °C Humidity: 5~95% Non-Condensing www.fs.com...

  • Page 13: Getting Started

    You may skip the wizard here by clicking on button. Or choose your native language to begin with the wizard, if it’s not in the list then choose one that you familiar with. Once done, please click on button to continue.  Step 2: Network Settings www.fs.com...
  • Page 14 Select the country/region you live in, the location you selected will also tell the IPPBX system which time zone and tone zone you want the IPPBX to use. And some other regional settings will be defined as well.  Step 4: Module Settings www.fs.com...
  • Page 15 This step is only for PBX-C302 and PBX-C503. If you have installed FXS/FXO/GSM/WCDMA modules on both Slots then just simply click button to continue. If you have installed E1/T1/BRI modules, please select the module type accordingly. For more configurations please refer to Module Settings.  Step 5: Create Departments and Extensions www.fs.com...
  • Page 16  Step 7: Create Admin Account Admin account can be customized that you can use any user name you prefer. For security reasons, please do not use weak administrator credentials.  Step 8: Create Operator Account www.fs.com...
  • Page 17 Mail server will be used to send out email notifications from the IPPBX system. Please select a mail service provider from the list. Supported mail service providers’ default settings will be filled in automatically. If the mail service provider of yours is not in the list www.fs.com...
  • Page 18 Once done, please click on button, now system will reboot for new settings to take effect. If PBX-C301, you’ ll have to wait around 4 minutes then refresh the page. If PBX-C302 or PBX-C503, it will take around 2 minutes to reboot, after this please refresh the page. Now you should see the login page like the screenshot shown below.

  • Page 19: Extensions

    If you wish to create a new department, please click on the Add button. Specify the department name and select member extensions then submit. If you wish to modify department settings, please click on the button, or click on the button to remove a department. www.fs.com...

  • Page 20: Ip Extensions

    IP extensions are user extensions that can be registered on various SIP/IAX2 endpoints, including desktop IP phones, softphone for Windows/Android/iPhone/Linux and some other endpoints that support SIP/IAX2 protocol. The extensions are created through the quick setup wizard, to check or modify the extension properties please click the button. www.fs.com...
  • Page 21 Mobile Number: The mobile phone number of the extension user.  Dial Permission: Defines which type of numbers the extension can dial.  Language: If the extension user is not a native speaker of the system default language, you may set a different language for this user. www.fs.com...
  • Page 22 Pickup Group: Setting for extension pickup group, default value is 1 (1-64), please use ‘ , ‘ to separate each group for multiple groups use.  Whitelist: Incoming call whitelist, only the numbers on the whitelist are allowed to call into this extension. www.fs.com...
  • Page 23 Selected Codec: Audio codecs you chose will be added here. The sequence of the audio codecs listed here is the sequence of the audio codecs to be used for negotiating the media of a phone call to be established. www.fs.com...

  • Page 24: Analog Extensions

    Analog extensions are generated automatically by the IPPBX system if FXS interfaces are detected. All you have to do is attaching analog phones or fax machine to the FXS interface, the analog extensions can be used directly for phone calls, no more additional settings required. www.fs.com...
  • Page 25 Dial Permission controls which dial rules the user can use to make phone calls.  Input Volume could be used to adjust the input gain of this analog extension.  Output Volume could be used to adjust the output gain of this analog extension. www.fs.com...

  • Page 26: Inbound Control

    Dial Extension switch could be enabled for callers to dial specific numbers upon this IVR menu if they already knew which number should be dialed, so the callers don’t have to listen to all the options of this IVR. www.fs.com...

  • Page 27: Call Queue

    In Queue Number field a default number is given. The number could be changed within the Paging Group Extension Number Range listed on Telephony -> Preferences -> Global PBX Options page, Extension Ranges section.  Ring Strategy sets the method how you wish the queue agent extensions to ring when there’s incoming call to this queue. www.fs.com...
  • Page 28  Auto Fill if it’s set to be Yes, and multiple agents are available, the PBX will send one call to each waiting agent (depending on the www.fs.com...
  • Page 29 Periodic Announcements can be used to periodically playback a voice prompts to the callers waiting in the queue.  Repeat Frequency(Sec): The time interval to repeat this periodic announcements.  Announcements Prompts: To select a voice prompts to be periodically played to the waiting callers. www.fs.com...

  • Page 30: Time Conditions

    2 pm to 6 pm. Any other time duration unspecified will be considered as non-business hours. In order to exclude holidays from the weekdays, you’ll also have to set up holidays. Please ensure you add all upcoming holidays to the holiday list. Now you have all prerequisites to set up a time rule. www.fs.com...
  • Page 31 In Weekdays field please select noon-break, and in Business Hours field please select a noon-break IVR or some other destination. In Non-business Hours field select the main time rule you have configured. And you should select None in the Holidays field. Then finally apply the noon-break time rule for inbound route settings. www.fs.com...

  • Page 32: Inbound Routes

    It requires the phone support distinctive ringtone feature. This is how you configure inbound routes for a trunk, you may configure the same inbound routes for other trunks or use different inbound route settings per your requirements. www.fs.com...

  • Page 33: Direct Routing

    To add a Direct Routing rule base on the caller’s number, please click “Add” button as shown below. In the popup window, specify the caller’s number, and assign a call destination for inbound calls from this external phone number. www.fs.com...

  • Page 34: Inbound Fax

    If your IPPBX system has been equipped with FXS ports, you may set the Fax Destination to Fax Machine. In the dropdown list, select the analog (FXS port) extension number which has the fax machine attached. When inbound fax detected, it will be directed to the fax machine. www.fs.com...

  • Page 35: Blacklist

    MS Excel, once done upload it from this page, the numbers you added in the template file will be added to the system blacklist. If you want to share the blacklist numbers on other IPPBX systems, you may download it by clicking the button to download all blacklist numbers in a file and upload on other IPPBX systems. www.fs.com...

  • Page 36: Outbound Control

    Call recording: To enable or disable call recording on the trunk/trunks. To enable recording you have options to record inbound calls only, outbound calls only or both inbound and outbound calls.  Output Volume: Sets the volume of the outgoing calls from the FXO channels. www.fs.com...

  • Page 37: E1 Trunks

    Path: Telephony -> Outbound Control -> Trunks If your PBX-C302 or PBX-C503 IPPBX system has E1 module installed, you’ll have an E1 trunk available for inbound and outbound phone calls. Click on the button to configure the E1 (PRI) trunk when needed. www.fs.com...

  • Page 38: Bri Trunks

    6.1.3 BRI Trunks Path: Telephony -> Outbound Control -> Trunks If your PBX-C302 or PBX-C503 IPPBX system has 4BRI module installed, you’ll have 4 BRI trunks available for inbound and outbound phone calls. www.fs.com...

  • Page 39: Sip Trunks

    Asterisk PBX can be registered as a SIP user agent to a SIP proxy (provider). If you have subscribed to a VoIP service from an ITSP (Internet Telephony Service Provider), then with the account details provided by them you can configure a SIP trunk on your IPPBX system for the user extensions to share and make outbound phone calls. www.fs.com...
  • Page 40 SIP trunking between IPPBXs.  Registration Expiration: Expiration time of registration in seconds.  Max Retry: Defines how many times the IPPBX system will attempt to register to the server before permanently giving up. More advanced settings. www.fs.com...
  • Page 41 NAT Support: With this option enabled, Asterisk may override the address/port information specified in the SIP/SDP messages, and use the information (sender address) supplied by the network stack instead. This feature is often required when there is a firewall located between the PBX and the service provider. www.fs.com...

  • Page 42: Dial Rules

    For example, users dial the numbers with a prefix 9 to call out through the CO lines (land lines). Or dial the numbers with a prefix 00 to call out through the VoIP lines (SIP trunks). Click on button to create a dial rule, below is an example dial rule. www.fs.com...

  • Page 43: Dial Permissions

    You may create several different dial permissions. By assigning the extension numbers with different dial permissions you may limit the extension users to dial certain outbound phone calls and use certain local phone system features. Click on button to create a new dial permission or you may use the default dial permission. www.fs.com...
  • Page 44 By default all extensions use the default dial permission “DialPlan1”, if you have created new dial permissions, please don’t forget to assign them to the extensions from Telephony -> Extensions -> IP Extensions and Telephony -> Extensions -> Analog Extensions (if there are analog extensions) page. www.fs.com...

  • Page 45: Outbound Fax

    PIN set is implemented on a dial rule or DISA, the IPPBX system will ask them to enter one of those PIN codes before they can call out. The PIN codes also can be used to query call logs and recordings, so even if the extension user dialed a number from another extension if PIN code is used you’ll know who actually made that call. www.fs.com...

  • Page 46: Audio Library

    Always be sure that the recorded IVR prompts will match the options to be set up in the IVR. If you change your IVR options, don't forget to change your recording! The IVR prompts are pre-recorded and then uploaded to the IPPBX system. The pre-recorded audio could be MP3 or WAV (16bit, 8KHz, Mono) format. www.fs.com...

  • Page 47: Custom Prompts

    You could record the voice prompts in MP3 or WAV (16bit, 8000Hz, mono) format and upload here. Then when you setup call queue periodic announcements you could select the customized voice prompts, or when you setup call forward notify message you could set the IPPBX system to notify callers before forwarding their calls. www.fs.com...

  • Page 48: Advanced Features

    The Follow Me feature allows you to set a list of numbers for an extension number that the extension user may possibly be contacted on. Therefore, if someone calls the extension and the user is not available then Follow Me will work through the list calling each of the www.fs.com...

  • Page 49: Wake Up Call

    To schedule a wakeup call from admin user Web interface, please click on button, in the popup window set the time of the wakeup call and select the extension/extensions to be called at the scheduled time point. www.fs.com...

  • Page 50: Conference

    The Paging and Intercom feature allows you to define an extension number that by calling the number will simultaneously page/intercom a group of phones. To create a Paging & Intercom group, please click on the button, a popup window will show up as below. www.fs.com...

  • Page 51: Smart Did

    In Time of Validation dropdown list choose how long the system to save these outbound call records. When the records expired, the inbound calls will be routed according to you inbound routes settings. In Apply to Trunk/Trunks field, you have to select the trunk/trunks Smart DID feature will be applied to. www.fs.com...

  • Page 52: Phonebook

    Callback is to allow a company employee who needs to make a call from their personal phone to call the IPPBX, the IPPBX calls them back and the cost of any future outbound calls are at the companies expense. www.fs.com...

  • Page 53: Whitelist

    An extension user can set up a whitelist, only the numbers in the whitelist can dial that extension number, otherwise the call will be rejected. After establishing the whitelist, user can select the association in the ‘IP Extension’ . Add: add a new whitelist www.fs.com...
  • Page 54 IP PBXs USER MANUAL Name: the name of the whitelist。 Number List: the system would check whether the incoming call number match with any one number on the number list. Please use ‘ , ‘ to separate multiple numbers. www.fs.com...

  • Page 55: Preferences

    Early Media: Early media is the ability of two user agents to communicate before a call is actually established.  Music On Ringback: If enabled, callers will hear music instead of ringback tone when calling extensions.  Music On Hold Folder: To select the music folder. www.fs.com...

  • Page 56: Voip Advanced

    Number range need to be modified from the Feature Codes screen. VoIP Advanced Path: Telephony -> Preferences -> VoIP Advanced Global SIP settings allow you to configure some general and advanced options for the IPPBX system global SIP preferences. www.fs.com...
  • Page 57 Local Net (IP/Netmask Length): Your local network address/addresses. Notice If you are going to map your IPPBX system to the Internet, the following configurations should be done. SIP port mapping on your router (one of the following: UDP: 5060; TCP: 5061; TLS: 5062). www.fs.com...

  • Page 58: Analog Settings

    (TOS) byte can be set on outgoing IP packets for various protocols. The TOS byte is used by the network to provide some level of Quality of Service (QoS) even if the network is congested with other traffic. Analog Settings Global Analog Settings are used for configuring the IPPBX system to seamlessly work with the telephone lines from your telecommunications providers. www.fs.com...
  • Page 59 FXO Ring Timeout: This value can be tweaked to shorten how long it takes before the analog port (FXO) consider a non-ringing line to have hungup.  Relax DTMF: If you are having trouble receiving DTMF key presses, enabling this option will make the DTMF interpreter much more permissive. www.fs.com...

  • Page 60: Voicemail Settings

    PBX-C302 and PBX-C503 IPPBX systems need proper module settings to load correct drivers and configure files to drive the E1 and BRI telephony modules. Default module settings are with module types FXS/FXO/GSM on both telephony module slots. So if you don’t have E1 and BRI modules www.fs.com...

  • Page 61: E1 Pri Signaling

    If in the deployment you got some else connection status you should check with the telephony provider to confirm the configuration parameters. Or check with them if the line had been activated by them and ready for phone calls. www.fs.com...

  • Page 62: T1 Pri Signaling

    LED indication with L1 red, L2 red, L3 off, L4 green to indication PRI CPE signaling. For more details of the LED indications please check PBX-C302 and PBX-C503 chapter in the LED Indication section. 9.5.3 MFC/R2 Signaling In the E1 settings section and Signaling field by selecting R2 you are able to configure E1 R2 signaling. www.fs.com...

  • Page 63: Ss7 Signaling

    Signaling System No.7 (SS7) is a set of telephony protocols can be delivered via E1 and T1. In the E1 settings section and Signaling field by selecting SS7, you are able to configure E1 SS7 signaling. In the Signaling dropdown list you should select SS7, Framing and Coding should use default value. Below in the SS7 Settings section set the detailed SS7 parameters. www.fs.com...

  • Page 64: Bri Settings

    “V2” position by default, please refer to following picture to check the jumpers before installing. The jumpers shown in the picture below are for crossover cables and straight cables to connect a BRI connection. www.fs.com...
  • Page 65 NT_PTMP: BRI PTMP Point to Multi-Point signaling (Network side) For other parameters please configure them according to the instructions of the service provider or ask for advice from our support team. Otherwise please do not change these settings without professional guidance. www.fs.com...

  • Page 66: Feature Codes

    Just dial ** following by the extension number (end with #) you’ll be able to pick up the incoming call on that specific extension. 10.3 Call Parking feature codes Call parking feature allows anyone who has received a call to park the call on an extension, allowing any other user to access the parked call. www.fs.com...

  • Page 67: Call Transfer Feature Codes

    You may also dial *75 (end with #) and follow the voice prompts to specify the number you wish to blacklist to add numbers to the IPPBX system blacklist. To remove numbers from black list (whitelist a number), you can dial *075 (end with #) and follow the voice prompts to specify the number you wish to whitelist. www.fs.com...

  • Page 68: Call Spy Feature Codes

    *95 to suspend their extensions temporarily, new calls will not be distributed to their extensions, until they dial *095 to resum 10.8 Conference feature codes Conference feature codes are used by conference admin for inviting participants to join in a conference or for creating a conference during a normal phone call. www.fs.com...

  • Page 69: Wakeup Call Feature Codes

    Call Forward feature codes Call forward could be configured from admin and operator web user interface. With the following feature codes, extension users can activate or deactivate call forward directly from their phones without configuration on the Web GUI. www.fs.com...

  • Page 70: Dnd Feature Codes

    By dialing the Office Closed On feature code you may disable all inbound control settings, all inbound calls will be forwarded to a specific destination. By dialing the Office Closed Off feature code to resume all inbound control settings. www.fs.com...

  • Page 71: Other Feature Codes

    Switch Phone: When the extension is registered on several different endpoints, you may dial *3 from an idle endpoint to switch the call to the idle endpoint.  Audio Console: By dialing *911 to make live announcements to the speakers connected to the Audio Out interface. www.fs.com...

  • Page 72: Reports

    You may download the search results as a CSV file by clicking on the button, or you may download all the call logs by clicking on 11.2 Call Recordings 11.2.1 Call Recordings Path: Reports -> Call Recordings -> Call Recordings www.fs.com...

  • Page 73: Conference Recordings

    The searched recordings will be listed with detailed information of when the conference calls were started, the conference number and the call/record duration. There are also the same options to playback, download and delete the recording files. www.fs.com...

  • Page 74: One Touch Recordings

    In the From and To fields set the start and end date, in User dropdown list select the user role if you want to search per the type of users, optionally if you want to search according to the user’s IP address you may also specify the IP address in the IP Address field then finally click on button. The searching results are as below. www.fs.com...

  • Page 75: Advanced Logs

    The OS Logging can be used to analyze the IPPBX system OS level issues. Enable the desired type of logging if you are qualified to analyze such kind of logs or if our support team asked for these kinds of logs for troubleshooting, otherwise please keep them disabled. www.fs.com...

  • Page 76: System

    The whole process will take a few seconds to few minutes depending on the amount and size of the files. You may click on the button to check the backup status, when done the USB Backup Status will change to Backup End. www.fs.com...

  • Page 77: Ftp Storage

    FTP storage should not be configured to work at the same time with USB data storage. Otherwise the data on the USB will all be migrated to your FTP server. To configure FTP storage, enable it and configure the FTP server credentials and the file uploading options. www.fs.com...

  • Page 78: System Storage

    System Storage Path: System -> Storage -> System Storage Storage management of recording files and voice data in the system. When the system storage is full, you can clear the recording files and voice data files in the system storage. www.fs.com...

  • Page 79: Region And Time

    Network Profiles Path: System -> Network Settings -> Network Profiles Network profiles could be configured through the quick setup wizard at the initial setup of the IPPBX system. When modification of the network profiles required, it could be done here. www.fs.com...

  • Page 80: Ipv6

    IPv6 for their products and services. Many organizations, institutions and universities have deployed their own networks on IPv6. To be able to deliver VoIP calls over IPv6(SIP over IPv6), you can configure IPPBX system with IPv6 addresses to be able to deploy it in your IPv6 network infrastructure. www.fs.com...

  • Page 81: Local Domain Name Service

    To set VLAN, navigate to web menu Network Settings->Network->VLAN. As you can see here on this page, you are able to configure 4 VLANs, 2 each for WAN or LAN port. www.fs.com...

  • Page 82: Vpn

    In other words, on a IPPBX system you cannot configure OpenVPN , PPTP VPN, IPsec and L2TP to work at the same time or to configure VPN server and client at the same time. OpenVPN Server OpenVPN is an open-source software application that implements virtual private network (VPN) techniques for creating secure www.fs.com...
  • Page 83 Configure the VPN server before turning it on. In the Certificate field click on button to create the OpenVPN certificate. Specify your customized information and click on button to continue. Click on button to setup the OpenVPN server. www.fs.com...
  • Page 84 Each certificate entry created here is for an OpenVPN client. Download the certificate and extract files inside the package, 3 files you’ll get and they should be uploaded on a client to be able to connect to this server. www.fs.com...
  • Page 85 Device Node could be set to TUN or TAP, a TAP device is a virtual Ethernet adapter, while a TUN device is a virtual point-to-point IP link.  Cipher (or Cypher) is an algorithm for performing encryption or decryption. www.fs.com...
  • Page 86 PPTP (The Point-to-Point Tunneling Protocol) uses a control channel over TCP and a GRE tunnel operating to encapsulate PPP packets. The intended use of this protocol is to provide security levels and remote access levels comparable with typical VPN products. Click on button to show the configurations. Configure the PPTP VPN server before enabling it. www.fs.com...
  • Page 87 Debug: Enable debug for PPTP VPN connection, debug information will be written into system logs. Once server configurations done, you may create PPTP client users, each user created is for a VPN client to connect. PPTP VPN server on IPPBX can connect up to 20 PPTP VPN clients. www.fs.com...
  • Page 88 Password: PPTP VPN user password given by the VPN server.  Default Gateway: If enabled, all network traffic will go through the PPTP VPN connection. Once done, click on button to continue, and now you may click on Enable switch to turn on PPTP VPN client. www.fs.com...
  • Page 89 Gateway for the hosts/IP phones behind it. The WAN ports will be used to connect both systems to establish IPSec VPN connection, now all PCs or IP phones on the LAN ports can communicate with each other on both sides via a secure IPSec tunnel. Click on button to show the configurations. Configure the IPSec Server before enabling it. www.fs.com...
  • Page 90 2. If the IPPBX is connected to the Internet via PPPoE, then IPSec Local IP needs to be the IP address assigned by PPPoE. 3. IPSec VPN server can connect 3 IPSec clients. IPSec Client (Tunnel mode) To configure IPSec VPN Client, please click on the button to show the configurations. Configure IPSec VPN client settings before enabling it. www.fs.com...
  • Page 91 IPSec Transport mode is used for end-to-end communications, NAT traversal is not supported with the transport mode. So if two IPPBX's are connected via IPSec transport mode, IPSec only encrypts the communication service ports, unlike Tunnel mode which encrypts the whole LAN subnet. Click on button to show the configurations. Configure the IPSec Server before enabling it. www.fs.com...
  • Page 92 Notice If a successful connection is established, then the system will display “Status: 2 tunnels have been established!!!”. Because the IPPBX system encrypts all service ports over UDP and TCP protocols, this means there will be 2 tunnels established. www.fs.com...
  • Page 93 Debug: Tick to enable debug for L2TP VPN connection, debug info will be written into system logs.  Enable IPSec: Enable IPSec encryption for L2TP VPN server.  IPSec Local IP: WAN IP which can access Internet.  IPSec Password: Define a password for IPSec VPN client to authenticate. www.fs.com...
  • Page 94 Finally click on the Enable switch to turn the L2TP server on. L2TP Client To configure L2TP client, please click on the button to show the configurations. Click on the button to configure the L2TP client to connect to the server. www.fs.com...

  • Page 95: Static Routing

    Static Routing is a form of routing that occurs when a router uses a manually-configured routing entry, rather than information from a dynamic routing protocol to forward traffic. When needed you may click on the button to add a manual static route. www.fs.com...

  • Page 96: Dhcp Server

    Set the DHCP server network parameters and turn it on. The DHCP clients which obtained IP addresses from the IPPBX system DHCP server will be listed on the right side of the page, in the DHCP Clients section. www.fs.com...

  • Page 97: Ddns

     http://www.3322.net  http://freedns.afraid.org/ Sign up to one of these DDNS service providers’ website and subscribe a dynamic domain name. Once you have your account details, register it here and you DDNS domain will work with the IPPBX system. www.fs.com...

  • Page 98: Snmp

    Drop Ping will cause the system to ignore ping request. If enabled, you cannot ping the IPPBX system.   Drop All will cause all packets sent to the IPPBX system being dropped, this will cause IPPBX system to block all communication www.fs.com...
  • Page 99 By now, Geo IP security policy should work. The private IP addresses from your local network and the public IP addresses from the countries/regions you’ve selected should be able to access your IPPBX system. Other IP addresses will all be blocked. www.fs.com...

  • Page 100: Intrusion Detection And Prevention

    ALL), otherwise misconfiguration of a deny rule might cause the IPPBX system total lockdown, only way would be using Console (PBX-C301) or HDMI (PBX-C302M and PBX-C503) to unlock the IPPBX from command lines. Auto Defense will help with the prevention of DDOS attacks.

  • Page 101: Ip Blacklist

    IP Whitelist allows you to add IP addresses and network addresses to the IPPBX system as a trusted. The IP addresses in the whitelist will always be treated as trusted IP and will not be regulated by the firewall rules. www.fs.com...

  • Page 102: Email Services

    We have built-in some popular Email service providers’ SMTP configuration templates for users to quickly deploy their mail server.  In the Mail Service Provider dropdown list select your Email service provider. If it’s not included here, please choose Other. www.fs.com...

  • Page 103: Voicemail To Email Settings

    Variables could be used in the mail body to indicate the extension users about their new voice message details.  With Deliver Message as Attachment option enabled the voice message will be attached to the notify Email, users may playback the voice messages when they got the notify Email. www.fs.com...

  • Page 104: Fax To Email Settings

    Firmware Upgrade can be used to notify the administrator before upgrading the IPPBX system firmware.  Language sets the email body language to be sent to the system administrator.  In the Email field you should specify the Email address of who’s responsible to respond to these system events. www.fs.com...

  • Page 105: Maintenance

    Please create API user only when third party integration is required. Admin user could change the API password here on this page when needed. 13.1.4 Conference Manager Path: Maintenance -> Users -> Conference Manager By default there’s no conference manager account, you have to create one. Click on Create User button to create a conference manager user account. www.fs.com...

  • Page 106: Root User

    After the file is located, click on button to upgrade. For PBX-C301, the whole process will take 4 to 5 minutes, for PBX-C302 and PBX-C503, the whole process will take 2 to 3 minutes, when done please refresh the web page to re-login.

  • Page 107: Diagnostic

    In the IP Address/Domain Name field specify the IP or domain name that you want to lookup and click on button to begin tracing. During the whole process each step will output in the Results field, you can view which routes the packets have taken before reaching their final destination. www.fs.com...

  • Page 108: Ethernet Capture

    If you have knowledge of how to analyze the files you may open them with some sound editors like Wavepad, or you may send the file to support team for help. www.fs.com...

  • Page 109: Remote Management

    13.5 Reboot and Reset 13.5.1 Reboot Path: Maintenance -> Reboot and Reset By clicking on the button you may restart your IPPBX from the web UI. Restart the IPPBX system will terminate all active phone www.fs.com...

  • Page 110: Reset

    To reset the PBX-C301 IPPBX system at system booting stage, you need to first cut off the power supply. Press and hold the RST button then power it on. 4 to 5 seconds later when SYS LED goes on release the RST button.

  • Page 111: Addons

    3 work days. The downloaded source file is as shown below. The certificate file issued by us is as shown below. www.fs.com...
  • Page 112 Once uploaded, the SIP proxy server will be activated. The activated SIP proxy service status and the license expiration is as shown below. By now, SIP proxy services should be working, and the external domain name could be used to register remote SIP extensions. www.fs.com...
  • Page 113 S3910 SERIES SWITCHES DATASHEET www.fs.com...
