Ltech DX Series Quick Start Manual

warranty
5 years
1. Technical Specs:
Color Temperature Knob Panel
DX62
Input Voltage: 100~240Vac
Output Signal:
RF 2.4GHz, DMX512
Working Temp.:
-30℃~55℃

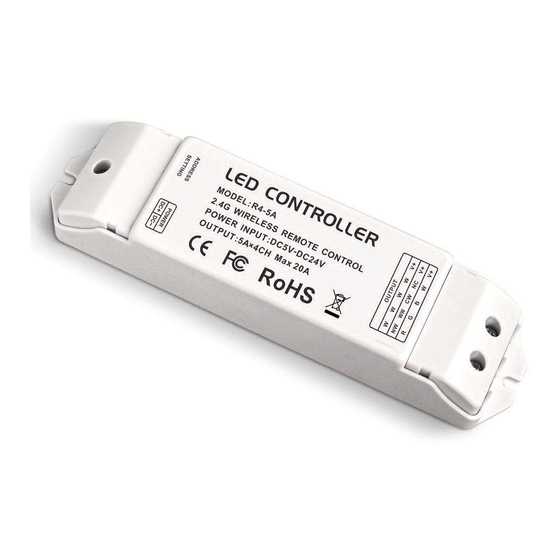

R4-5A CV Receiver (receiver is sold separately)
Input Voltage: 5~24Vdc
Current Load: 5A × 4CH Max. 20A
Output Power: Max.100W/240W/480W(5V/12V/24V)
Wireless Signal: 2.4GHz
R4-CC CC Receiver (receiver is sold separately)
Input Voltage:
12~48Vdc
Output Voltage:
3~46Vdc
Output Current:
CC 350/700/1050mA×4CH
Output Power:
1.05W~48.3W×4CH Max 193.2W
Wireless Signal:
2.4GHz
DX62
Color Temperature Knob Panel
Dimensions: L86×W86×H50(mm)
Package Size:
L106×W106×H60(mm)
235g
Weight(G.W.):
Working Temp.: -30℃~55℃
Dimensions: L175×W44×H30(mm)
Package Size: L178×W48×H33(mm)
Weight(G.W.): 150g
Working Temp.:
-30℃~55℃
Dimensions:
L175×W44×H30(mm)
Package Size:
L178×W48×H33(mm)
Weight(G.W.):
165g
