Ltech DX Series Manual

LTECH
X

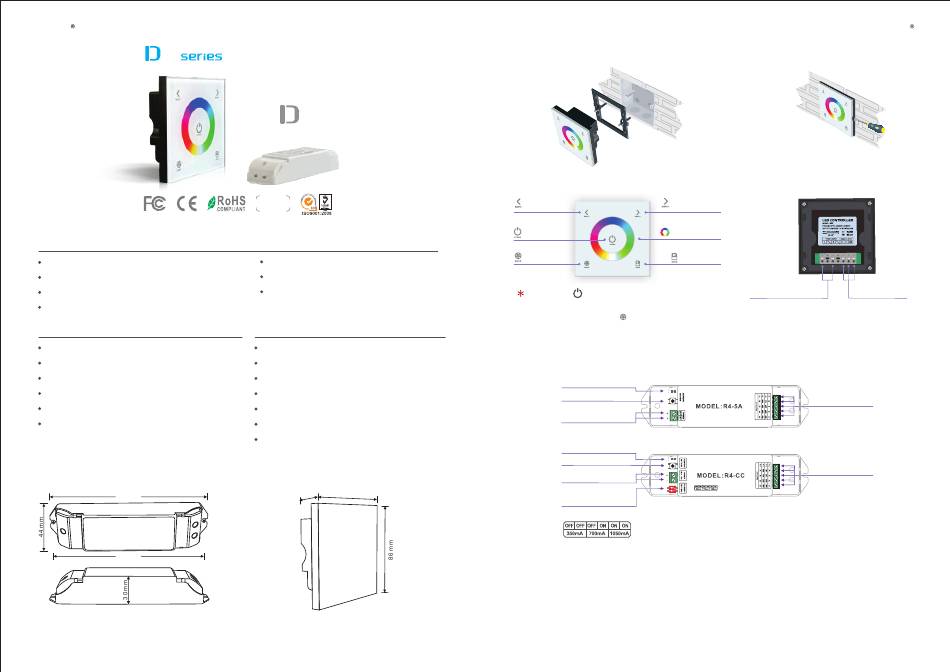

1. Technical Specs:

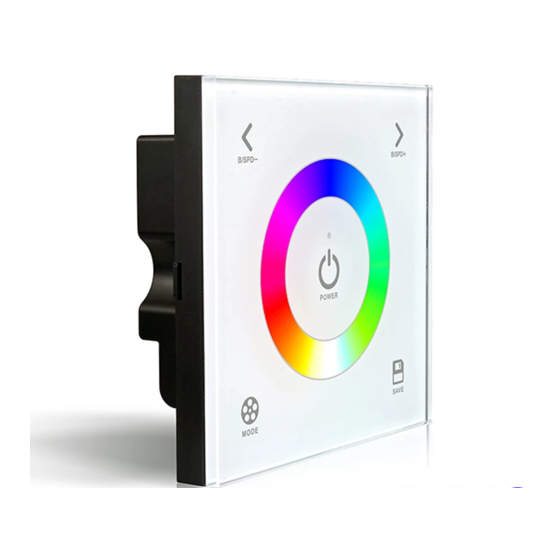

Dx3 RGB Touch Panel
Input Voltage: AC100~240V
Output Signal: RF 2.4G + DMX512
RF Remote Distance: 30m
Control Mode: Sync Control
R4-5A CV Receiver
Input Voltage: DC5V~DC24V
Max Current Load: 6A × 3CH Max. 18A
Max Output Power: 90W/216W/432W(5V/12V/24V)
Working Temperature: -30℃~55℃
Package Size: L178×W48×H33(mm)
Weight(G.W.): 150g
2. Product Size:
175mm
170mm
R4-5A/R4-CC Receiver
DX3 RGB Touch Panel Manual
t o u c h p a n e l
X3
warranty
5 years
Working Temperature: -20℃~60℃
Package Size: L113×W112×H50(mm)
Weight(N.W.): 225g
R4-CC CC Receiver
Input Voltage: DC12V~DC48V
Output Voltage: DC3V~DC46V
Output Current: CC 350/700/1050mA×3CH
Output Power: 1.05W~48.3W×3CH Max 144.9W
Working Temperature: -30℃~55℃
Package Size: L178×W48×H33(mm)
Weight(G.W.): 165g
3 6 m m 86mm
Touch Panel
— 1 —
DX3 RGB Touch Panel Manual
3. Installation Instruction:
Install
4. Key Functions:
Speed/
Speed/
Brightness- Brightness+
Touch Circle
On/Off
Mode Key Save Key
Long press to save
current static color or
changing effect.
Long press to turn on/off the tone.
The Changing Mode (Press
to Switch):
A. Static Red B. Static Green C. Static Blue
G. Static White H. RGB Skipping I. 7 Colors Skipping
6. Operating Instruction for Receiver:
The Running Light
ID learning Button
DC5V~24V
Power Input Socket
The Running Light
ID learning Button
DC12V~48V
Power Input Socket
Current Selection
Switch
（Operation Table）
7. The Learning ID Method :
Learning ID: Short press "ID learning button" on the R4-5A/R4-CC receiver, the running light keeps
on. Then press any key or touch cycle on the DX3 touch panel, the running light
flickers several times, activated.
Long press "ID learning button" on the R4-5A/R4-CC receiver for 5s, the running
Canceling ID:
light flickers several times, canceled.
Tel: +86 756 620 8811 Fax: +86 756 620 8833
LTECH
Uninstall
5. Terminals:
DMX Signal
AC100-240V
Output Socket
Power Input Socket
D. Static Yellow E. Static Purple F. Static Cyan
J . RGB Smooth K. 7 Colors Smooth
LED Lamp
Connection Socket
LED Lamp
Connection Socket
— 2 —
