Enttec MK2 Manual

Specifications
Item
Input Voltage 110 – 240V AC
Input Frequency 50/60Hz
Max total
250 Watts
Output Power
Max. Current
5 Amps
Per channel
Output Channels 6
Control Input DMX512 & RDM E1.20
3 DMX distributions: 6, 9 and 12
Personalities
channels
14 bit internal dimming mapped to
Smart Dimming
8 bit S curve
Forced air (temperature-regulated
Cooling Method
for low noise)
Ambient Working
5° to 35° C
Temperature
1x 5-Pin Male XLR for DMX input
1x 5-Pin Female XLR for DMX
output
Connectors 2x 4-Pin Female XLR for channels
output
1x 3-Pin IEC C14 Male Socket
10Amps for mains
Pin1: Ground
DMX Pinout Pin2: Data –
Pin3: Data +
Protection Rating IP20
Net Weight 2.4 Kg
Shipping Weight 2.8 Kg
1

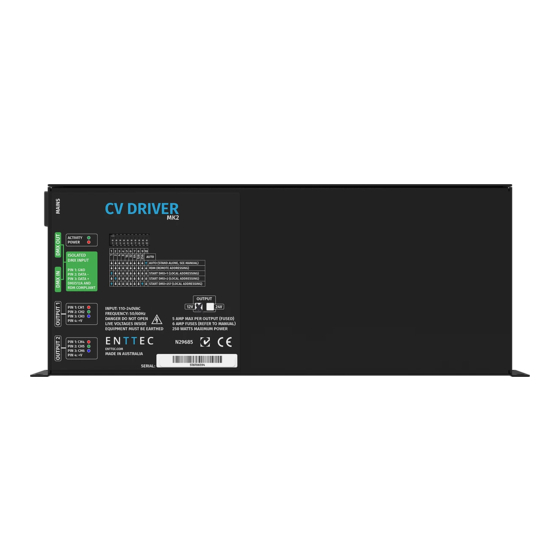

CV Driver MK2
Features
Value
Safety
•
DMX512 Controllable and RDM Configurable
•
Designed for driving LED strips through 6 high
power channels
•
12V and 24V DC output units available
•
Easy addressing interface (physical switches and
RDM)
•
Isolated DMX input
•
6 x 5 Amps constant voltage controllable outputs
•
250 watts total output power
•
Fused outputs with surge protection
•
Power, status and output LED indicators
•
Stand-alone output sequences (if configured, no
external controllers required)
•
Up to 8 units stackable using standard 19" modular
rack accessory (sold separately)
•
Ideal for white or RGB LED Tapes
•
Standard IEC mains input connector
•
Auto-selectable Multi voltage mains input
•
Make all the connections before you plug in the
main power
•
Do not expose the ALEPH CV DRIVER to rain or
moisture, doing this will void the warranty
•
Do not spill water or other liquids into or onto the
unit
•
Check that the local power outlet matches that of
the required voltage (110 → 240V AC)
•
Do not remove the cover whilst the unit is powered
•
Never plug this unit in to a dimmer pack
CV Driver MK2 Manual
