INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
INTRODUCTION
This remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas
heating appliances. The system is operated manually from the transmitter. The system operates on radio frequencies
(RF) within a 20-foot range using non-directional signals. The system operates on one of 255 security codes that are
programmed into the transmitter at the factory; the remote receiver must learn the transmitter code prior to initial use.

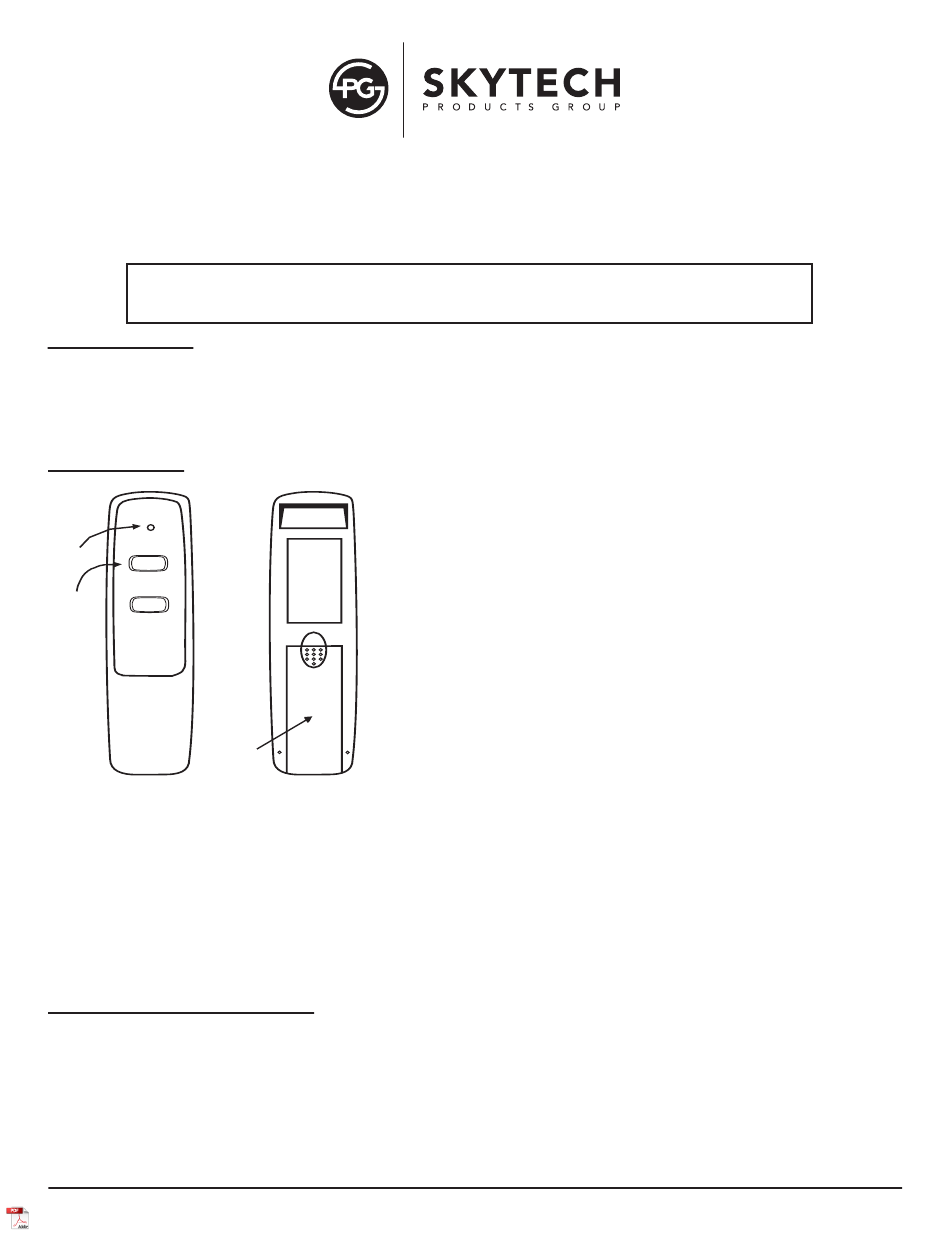

TRANSMITTER
SIGNAL
LIGHT
ON
ON/OFF
OFF
BUTTONS
BATTERY
COMPARTMENT
FRONT
POWER SETTING - CON 1001
The electronics in the remote control system have the capability of "powering" two different types of DC-powered
components. If any operational problems accure contact Skytech Systems, Inc.
The RECEIVER comes from the factory programmed to provide pulse DC voltage (5.5) VDC to 6.3 VDC) to a latching
solenoid.
Skytech: CON1001-1
MODEL: CON1001-1

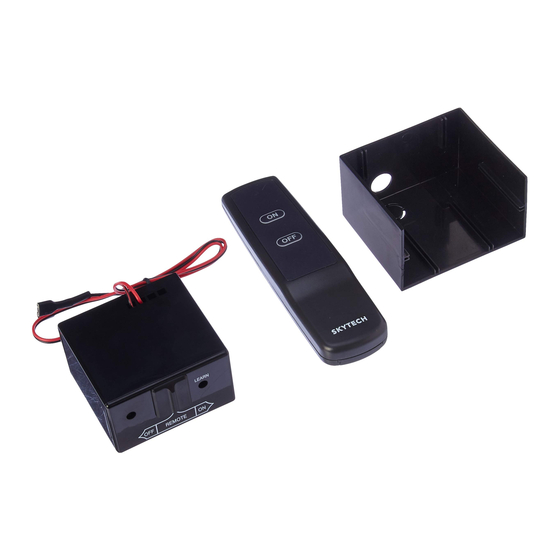

This is a single functioning wireless remote control system for
operating gas valves with ON/OFF latching solenoids
NOT ATTEMPT TO INSTALL OR OPERATE
This remote control SYSTEM offers the user a battery-operated remote
control to power a ON/OFF latching solenoid such as those used with gas
valves used in some decorative gas logs, gas fireplaces and other gas
heating appliances.
The circuit uses the battery power from the receiver to operate a latching
solenoid. The circuit has reversing polarity software which reverses the
positive (+) and negative (-) output of the receiver's battery power to drive
solenoid (ON/OFF FLAME) or open/close. The SYSTEM is controlled by
the remote transmitter.
The transmitter operates on a 12V battery made specifically for remote
controls and electronic lighters. Before using the transmitter install the
12-volt (A-23) battery in the battery compartment.
It is recommended that ALKALINE batteries always be used for longer
battery life and maximum operational performance.
BACK
The transmitter has ON and OFF functions that are activated by
pressing either button on the face of the transmitter. When a button on
the transmitter is pressed, a signal light on the transmitter illuminates to
verify that a signal is being sent. Upon initial use, there may be a delay of
three seconds before the remote receiver will respond to the transmitter.
This is part of the system's design. If the signal light does not illuminate,
check the position of the transmitter's battery.
REV. 2-22-22 Page 1
Advertisement
Table of Contents
Related Manuals for Skytech CON1001-1
Summary of Contents for Skytech CON1001-1
- Page 1 The electronics in the remote control system have the capability of “powering” two different types of DC-powered components. If any operational problems accure contact Skytech Systems, Inc. The RECEIVER comes from the factory programmed to provide pulse DC voltage (5.5) VDC to 6.3 VDC) to a latching solenoid.
- Page 2 Make sure the remote receiver switch is in the OFF position before connecting wires. For best results it is recommended that 18 gauge stranded wires should be used to make connections and no longer than 20-feet. Skytech: CON1001-1 REV. 2-22-22 Page 2...
- Page 3 1/4” holes into the wall. Then use a hammer to tap in the two plastic wall anchors flush with the wall; then install the screws provided. BATTERY COMPARTMENT Skytech: CON1001-1 REV. 2-22-22 Page 3...
- Page 4 You can now “learn” the transmitter to the receiver as described in the General Information Section. SPECIFICATIONS BATTERIES: Transmitter 12V - (A23) Remote Receiver 6V- 4 ea. AA 1.5 Alkaline Operating Frequency: 303.8 MHZ Skytech: CON1001-1 REV. 2-22-22 Page 4...
- Page 5 This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interferencecausing equipment regulations. Cet appareil est conforme à la norme RSS 210 d’Industrie Canada. Cet appareil de classe B respecte toutes les exigences du règlement canadien sur le matériel brouilleur. Skytech: CON1001-1 REV. 2-22-22 Page 5...
- Page 6 System by the Customer. System Sold As Is. Subject to this Warranty and any applicable state law, each System is sold by Skytech to a Customer on an “as is” basis. In addition, each System and Skytech’s obligations are and remain subject to all additional disclaimers, limitations, reservations of rights, exclusions, and qualifications set forth on Skytech’s website, www.skytechpg.com, all of which are considered part of the Warranty and are...
- Page 7 Print information below and return form to: Skytech Products Group, 9230 Conservation Way, Fort Wayne, IN. 46809; Attn. Warranty Dept Phone: (855) 498-8224 Warranty Information Purchase Date: _____________ Model: _______________ Date Code: _________ 21’ 1 2 3 4 5 6 Note: Date code may be in one of two formats - (1) Printed 4-digit number: YYMM format.
