Skytech CON 1001 TH Installation And Operating Instructions Manual

www.FireplaceRemoteControls.com
FOR OPERATING A LATCHING SOLENOID VALVE, MANUALLY OR WITH A THERMOSTAT FUCTION
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT
INTRODUCTION
This remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas heating appliances. The
system is operated manually from the transmitter. The system operates on radio frequencies (RF) within a 20' range using non-directional
signals. The system operates on one of 1,048,576 security codes that are programmed into the transmitter at the factory; the remote
receiver's code must be matched to that of the transmitter prior to initial use.
Review THERMO SAFETY SECTION under RECEIVER section. This high temperature safety feature shuts down
the appliance when a potentially unsafe condition exists.

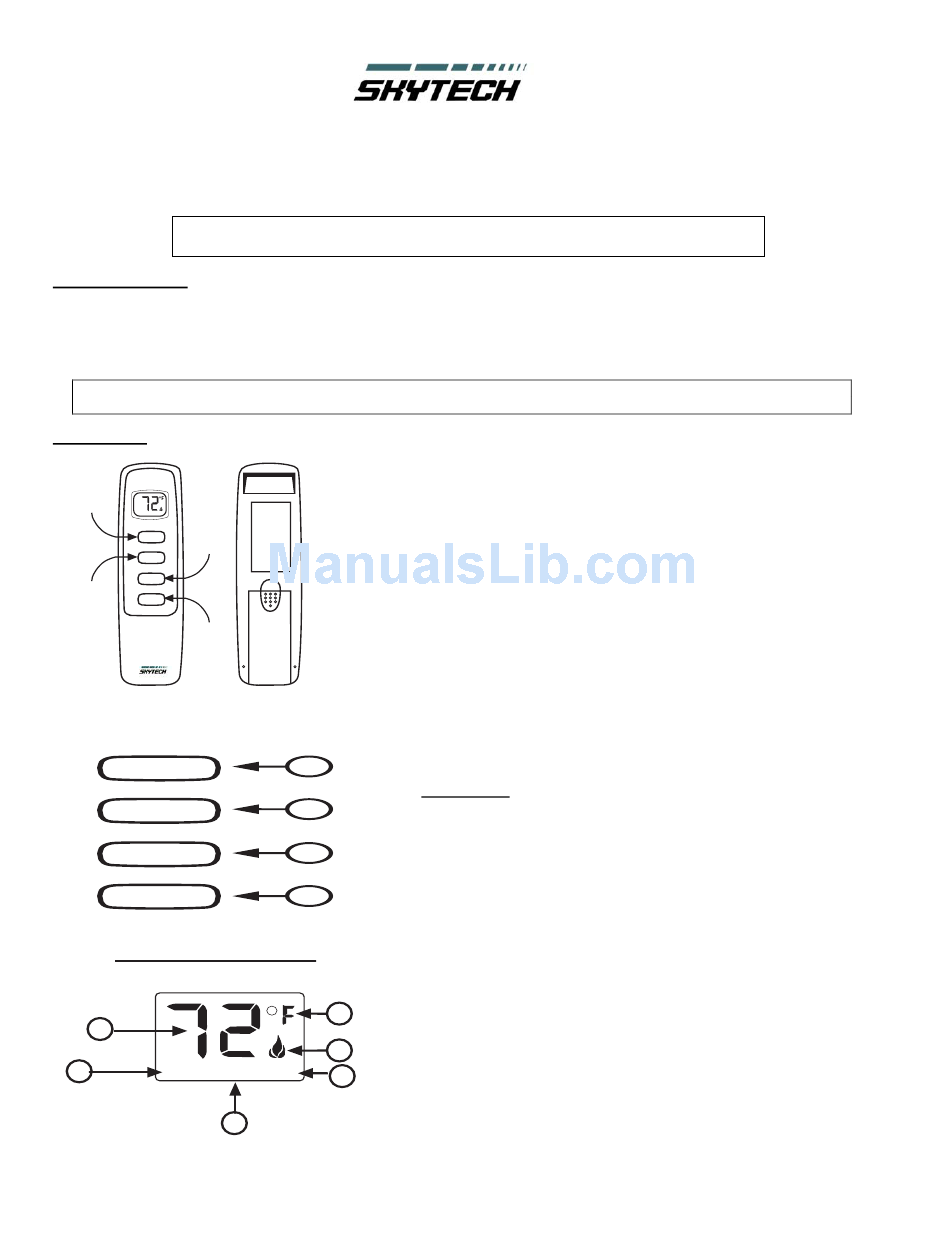

TRANSMITTER
ON
BUTTON
ON
OFF
MODE
OFF
BUTTON
SET
FRONT
ON
OFF
MODE
SET
LCD - Liquid Crystal Display
1
4 ROOM
INSTALLATION AND OPERATING INSTRUCTIONS
MULIT-FUNCTION WIRELESS REMOTE CONTROL SYSTEM
ATTEMPT TO INSTALL OR OPERATE
This remote control SYSTEM offers the user a battery-operated remote control to power
WALL CLIP
SLOT
a latching solenoids such as those used with gas valves used in some heater rated gas
logs, gas fireplaces and other gas heating appliances.
The solenoid circuit uses the battery power from the receiver to operate a solenoid. The
MODE
circuit has reversing polarity software which reverses the positive (+) and negative (-)
BUTTON
output of the receiver's battery power to drive a latching solenoid ON/OFF. The
SYSTEM is controlled by the remote transmitter.
The transmitter operates on a (2) 1.5V AAA batteries.
SET
BUTTON
It is recommended that ALKALINE batteries always be used for longer battery life and
BATTERY
COMPARTMENT
maximum operational performance.
Before using the transmitter, install the (2) AAA transmitter batteries into the battery
compartment. (Use caution that batteries are installed in the proper direction)
BACK
1
2
3
4
2
3
SET
TEMP
5
6
KEY SETINGS
ON - Operates unit to on position, Manually operated solenoid ON.
•
• OFF - Operates unit to off position, Manually operated solenoid OFF.
• MODE - Changes unit from manual mode to thermo mode.
• SET - Sets temperature in thermo mode.
1. DISPLAY Indicates CURRENT room temperature .
0 0
2. F OR C Indicates degrees Fahrenheit or Celsius.
3. FLAME Indicates burner/valve in operation.
4. ROOM Indicates remote is in THERMO operation.
5. TEMP Appears during manual operation.
6. SET Appears during time the of setting the desired temperature in
the thermo operation.
1.877.374.4404
CON 1001 TH
(SKY CON TH)
REV. 10/29/03
Page 1 of 6
