Service Operations

Door Evidence Prefilter Replacement:

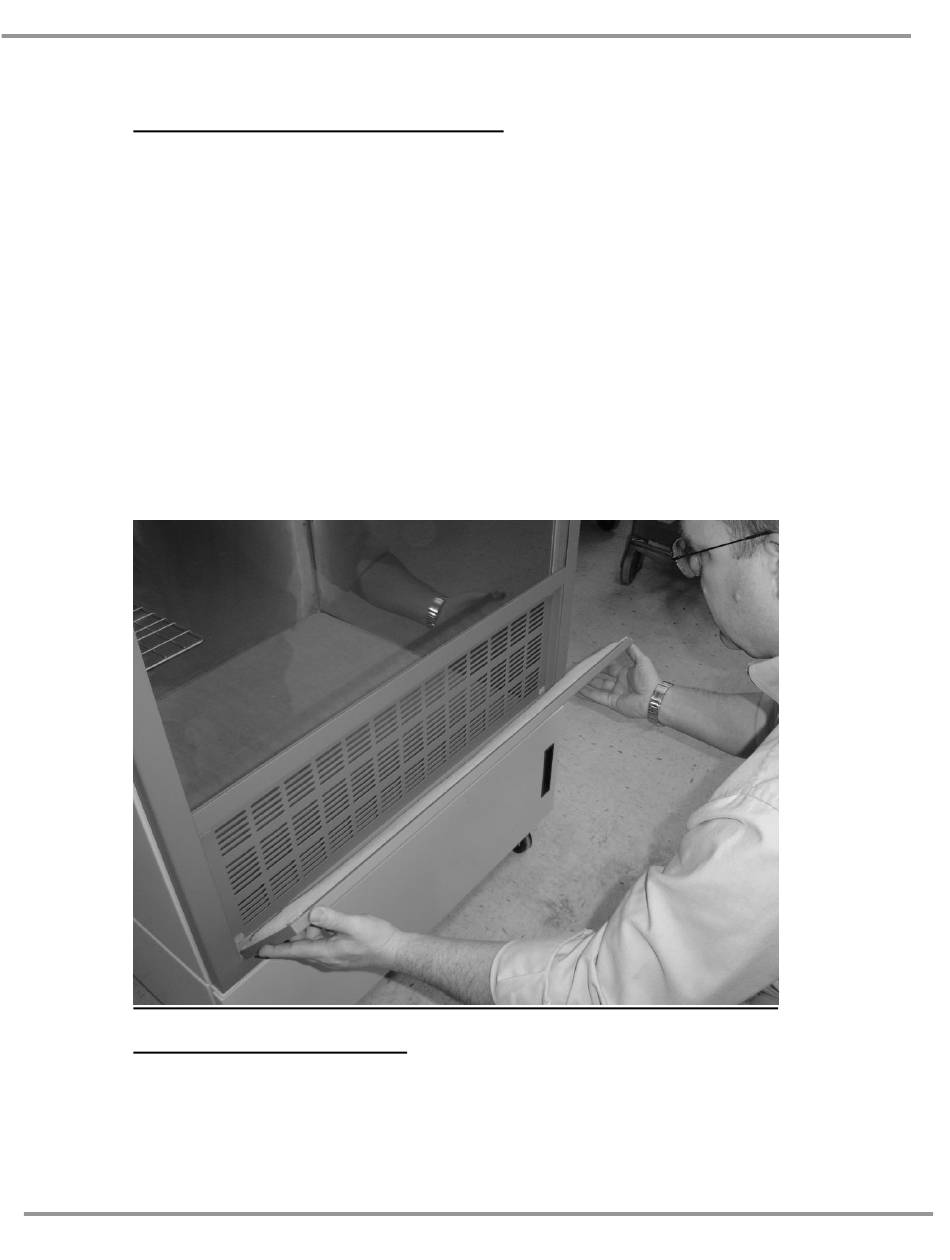

1. Pull the prefilter frame(s) straight away from the door(s), as shown in
Figure 6-1.
2. Wearing appropriate gloves, and working on the inside surface of the prefilter
frame(s), carefully pull out the Evidence prefilter(s). The Evidence prefilter(s)
can now be examined for trace evidence, or stored with the evidence in a
sealed bag for future reference.
3. Examine the door prefilter(s). If it is contaminated from the evidence drying
operation, or from dust, replace it with a new one, such that the orange side of
the prefilter(s) faces you (away from the front of the prefilter frame).
4. Press the prefilter frame(s) back into the door, engaging the fastener strips.

Door Prefilter Replacement:

1. Follow Steps 1, 3, and 4 above.
Product Service 1-800-522-7658

Chapter 6: Maintaining the Cabinet

Figure 6-1
