- Page 1 7610-K452 Customer Display Base Kit Instructions Issue A...
- Page 2 Revision Record Issue Date Remarks Feb 2011 First issue...

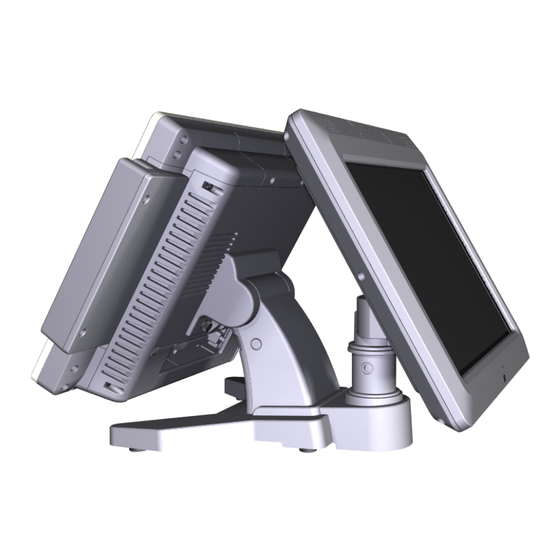

- Page 3 Introduction This kit provides a display base which attaches to the back of the Table Top Stand (7610-K320). It supports the 5975 2x20 VFD Display Pole (5975-K834/K836) and the LCD Customer Display Tilt Mount (7610-K453). Components...
- Page 4 Installing a 2x20 Display 1. Install the Customer Display Base on the back of the 7610 Table Top Stand (7610-K320). Secure it with screws (2). 2. Connect the Display Cable to the Display Module. Note: The RS-232 (or USB) cable can be connected to the Display Module without disassembling the Display Assembly by extending the end of the cable into the post opening and connecting it to the proper connector, or if you find this difficult you can disassemble the Display Assembly as follows.
- Page 5 3. Route the cable through the Customer Display Pole. 4. Assemble the components as shown below. Note that the raised extension of the Display Swivel is oriented toward the front of the unit, which permits the Display to be tilted to the rear. 5.
- Page 6 RS-232 Interface (Powered) Connect the I/F cable to a powered RS-232 connector on the terminal. Note: The factory default settings for the COM1 and COM2 ports are powered by default. To change a port to non-powered see the Circuit Boards chapter in the Hardware Service Guide.
