Installation - Seagate LYVE Quick Start Manual

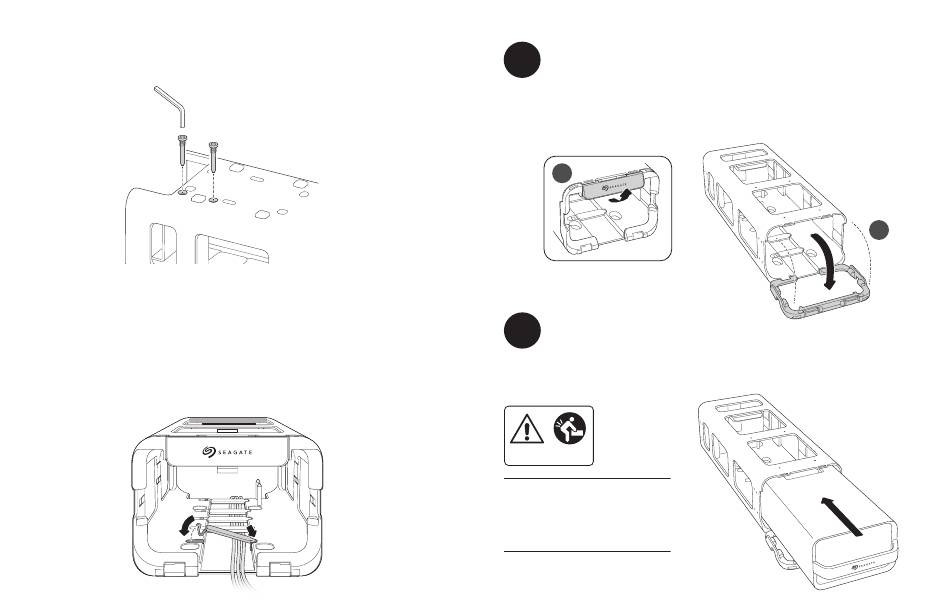

Remove guide pins
Guide pins for use with a PCIe Adapter are preinstalled on Lyve Mobile Mount. If you are connecting
a computer directly to Lyve Mobile Array's host port, you'll need to remove the guide pins. Use a
6mm hex key wrench to unscrew the guide pins from the bottom of Lyve Mobile Mount.
(Optional) Route cables through the front of
Lyve Mobile Mount
You can route cables through the front of Lyve Mobile Mount using the internal channel that runs
the length of the mount. Five plastic cable holder covers are provided to secure the cables in the
channel. To attach a cover, insert the rounded tab into a notch on the right side of the channel.
Snap the hooked release tab into the corresponding slot on the left of the channel.
6

Installation

1
Release handle
A Grasp the lock catch on the front of Lyve Mobile Mount and pull it forward to release the front lock bezel.
B Lower the front lock bezel to open Lyve Mobile Mount.
A
2
Insert device
Insert the device with the ports facing the back of Lyve Mobile Mount. Slide the device toward the back
of the mount.
CAUTION
Lifting hazard. To avoid injury, use
proper lifting techniques when removing
Lyve Mobile Array from its packaging
and installing it in Lyve Mobile Mount.
Lyve Mobile Array weight: 27.8 lb/12.6 kg
