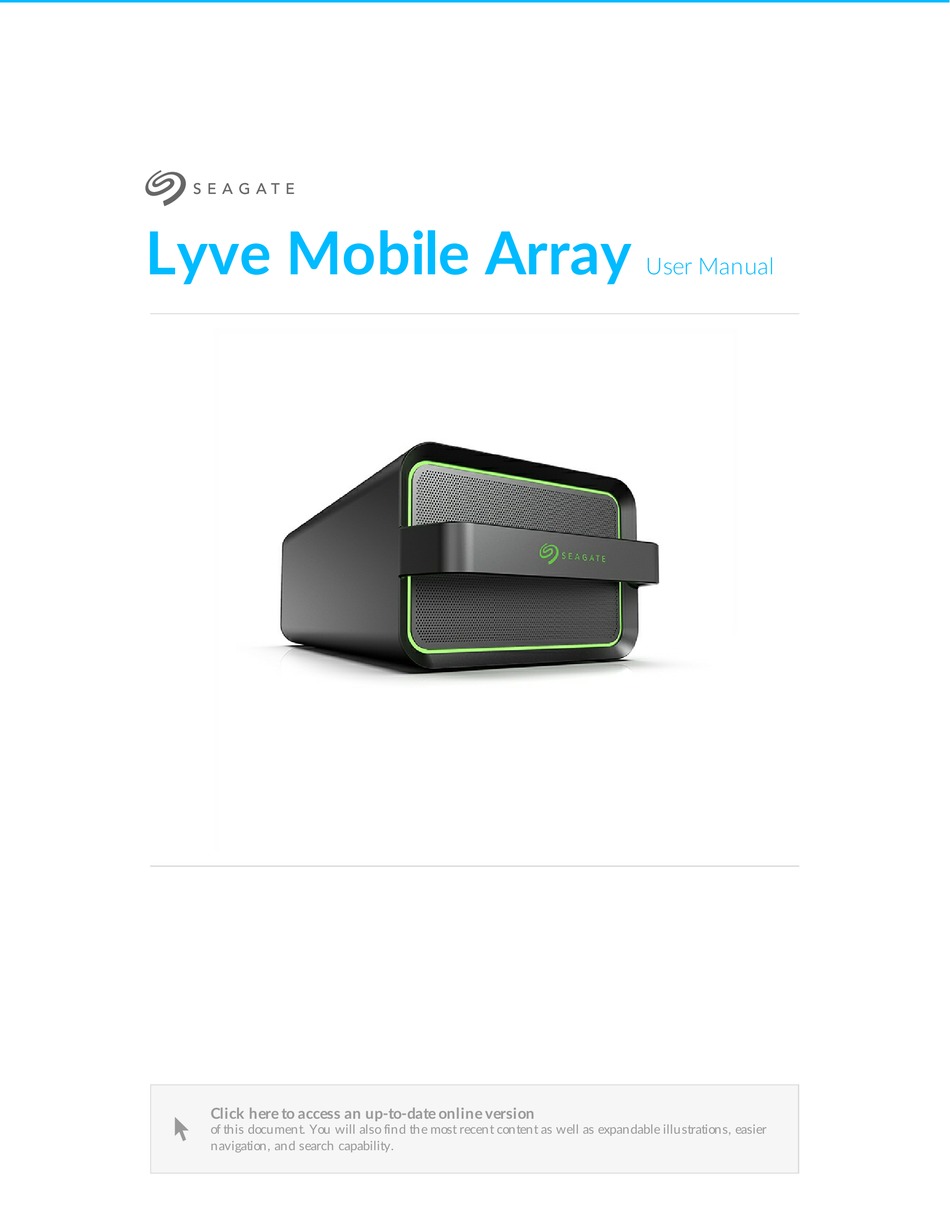

- Page 1 Lyve Mobile Array User Manual Click here to access an up-to-date online version of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.
- Page 2 ........................Seagate Lyve Rackmo unt Receiver po rts .
- Page 3 ......................... . Taiwan RoHS...
-
Page 4: Box Content

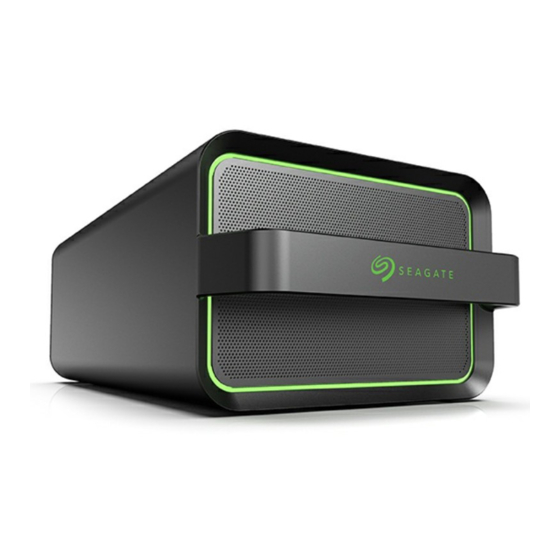

® ™ Seagate Lyve Mobile Array is a portable, rackable data storage solution designed to quickly and securely store data at the edge or move data across your enterprise. Both the full-flash and hard drive versions enable universal data compatibility, versatile connectivity, secure encryption, and ruggedized data transportation. - Page 5 Power adapter 260W (20V/13A) When charging the device using the power supply port, use only the power supply provided with your device. Power supplies from other Seagate and third-party devices can damage your Lyve Mobile Array. Ports Direct a ached storage (DAS) ports Use the following ports when connecting Lyve Mobile Array to a computer: Thunderbolt 3 (host) port—Connect to Windows and macOS computers.
- Page 6 Connections. Seagate Lyve Rackmount Receiver ports The following ports are used when Lyve Mobile Array is mounted in a Lyve Rackmount Receiver: VASP PCIe port—Transfer large amounts of data to your private or public cloud with VASP technology for efficient throughput up to 6GB/s on supported fabrics and networks.
-
Page 7: Setup Requirements
See below for details. Download Lyve Client The Lyve Client app is required to authorize a host computer to access Lyve Mobile Array and compatible devices. You can also use it to manage Lyve projects and data operations. Download the Lyve Client installer for Windows and macOS at www.seagate.com/support/lyve-client. - Page 8 Lyve Mobile Array locks when powered off, ejected or unplugged from the host computer, or if the host computer goes to sleep. Lyve Client is required to unlock Lyve Mobile Array when it is reconnected to the host or the host has awakened from sleep. Lyve Client can only unlock Lyve Mobile Array when the host computer is authorized using Lyve Management Portal credentials.
- Page 9 Connec on Op ons Lyve Mobile Array can be used as direct-attached storage. See Direct-Attached Storage (DAS) Connections. Lyve Mobile Array can also support connections via Fibre Channel, iSCSI and Serial Attached SCSI (SAS) connections using the Lyve Rackmount Receiver. For details, see the...
-
Page 10: Connect Power
Lyve Mobile Array. Connect to host computer Use the Thunderbolt 3 cable to connect Lyve Mobile Array to a Thunderbolt 3 port on a host computer. Connect Lyve Mobile Array to a computer in the following order:... -
Page 11: Unlock The Device
A. Connect the Thunderbolt 3 cable to Lyve Mobile Array's host Thunderbolt 3 port located on the left side of the back panel. B. Connect the other end to a Thunderbolt 3 port on the host computer. Windows Prompt: Approve Thunderbolt Device When you first connect Lyve Mobile Array to a Windows PC that supports Thunderbolt 3, you may see a prompt requesting to authenticate the recently connected device. - Page 12 Apply a long press (3 seconds) to the power button to turn off Lyve Mobile Array. If Lyve Mobile Array is off but still connected to power, you can turn Lyve Mobile Array back on by applying a long press (3 seconds) to the power button.
- Page 13 Lyve Rackmount Receiver Connec ons For details on configuring Seagate Lyve Rackmount Receiver for use with Lyve Mobile Array and other compatible devices, see the Lyve Rackmount Receiver user manual. Connect Ethernet port Lyve Client communicates with devices inserted in Lyve Rackmount Receiver via the Ethernet management ports.
- Page 14 Slide device in until it’s fully inserted and firmly connected to Rackmount Receiver's data and power. Close latches. Lyve Mo bile Array 3/23/21...
-
Page 15: Turn On Power
Turn on power Set the power switch on Lyve Mobile Rackmount Receiver to ON. Lyve Mo bile Array 3/23/21... - Page 16 Unlock the device The LED on the device inserted in Lyve Rackmount Receiver blinks during the boot process and turns solid orange. The solid orange LED color indicates the device is ready to be unlocked. Lyve Mo bile Array 3/23/21...
- Page 17 To access Lyve Mobile Array and compatible devices, a Lyve Management Portal username and password must be entered in the Lyve Client app installed on the connected host computer. See Setup Requirements. Once Lyve Client has validated permissions for the device connected to the computer, the LED on the device turns solid green.
-
Page 18: Regulatory Compliance
Regulatory Compliance Product Name Regulatory Model Number Seagate Lyve Mobile Array SMMA001 FCC DECLARATION OF CONFORMANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 19: Taiwan Rohs
CNS 15663, Guidance to reduction of the restricted chemical substances in electrical and electronic equipment. Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant. The following table meets the Section 5 “Marking of presence”... - Page 20 Lyve Mo bile Array 3/23/21...
