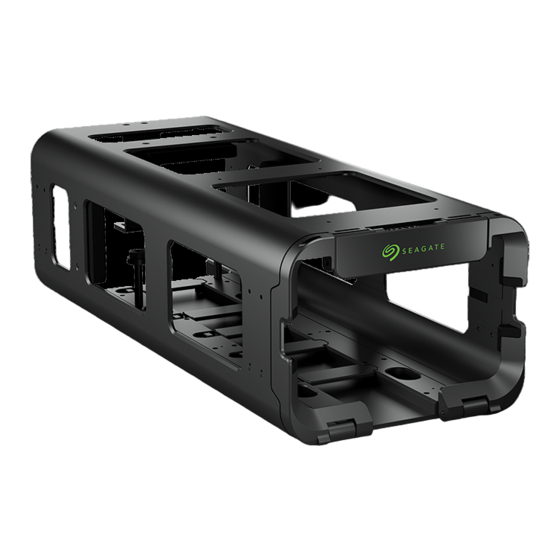

Lyve Mobile Mount - Front Loader
User Manual
Model:
Click here to access an up-to-date online version
of this document. You will also find the most recent content as well as expandable illustrations, easier
navigation, and search capability.

Advertisement

loading

Related Manuals for Seagate Lyve Mobile Mount

Summary of Contents for Seagate Lyve Mobile Mount

  • Page 1 Lyve Mobile Mount - Front Loader User Manual Model: Click here to access an up-to-date online version  of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.
  • Page 2 ......................... . (Optional) Route cables through the front of Lyve Mobile Mount 4 Connect Lyve Mobile Array .

  • Page 3: Setup Requirements

    Management Portal. An email was sent to you from the Lyve team that included a link for resetting your password. If you can't remember your credentials or you lost your email invitation, visit lyve.seagate.com.  Click Sign in and then click the Don’t remember your password? link. If your email isn’t recognized, contact your account manager.
  • Page 4 devices even without an internet connection. After 30 days, you’ll need to open Lyve Client on the computer and re-enter your credentials. Lyve Mobile Array locks when powered off, ejected or unplugged from the host computer, or if  the host computer goes to sleep. Use Lyve Client to unlock Lyve Mobile Array when it is reconnected to the host or the host has awakened from sleep.

  • Page 5: Part List

    Part List Image Name Quantity Notes Lyve Mobile Mount Shoulder screw 8 mm x M6-1.0 x 47 + L13, HEAD (16.0,6.3) M3-0.5 x L16 (5.8,1.0), phillips For horizontal installation of two Lyve Mobile screw Mounts M3-0.5 x L7 (5.8,1.0), For vertical installation of...
  • Page 6 Recommended clearance zones Moun ng slots Before connecting Lyve Mobile Array, ensure that Lyve Mobile Mount is securely fixed to a vehicle, apparatus, or structure to avoid excessive motion. Attach Lyve Mobile Mount to the appropriate surface by inserting M6-0.1 x L20 (10.0,6) socket cap screws into any of the M6 tap holes on the bottom of the mount.
  • Page 7 Connec ng Lyve Mobile Mounts Ver cally Stack two Lyve Mobile Mounts and align the four attachment holes on the top and bottom of the mounts. Use four M3-0.5 x L16 (5.8,1.0) screws to attach the two mounts. Lyve Mo bile Mo unt - Fro nt Lo ader 4/27/22...
  • Page 8 Connect Lyve Mobile Mounts Horizontally Place two Lyve Mobile Mounts side-by-side and align the eight attachment holes on the sides of the mounts. Use eight M3-0.5 x L7 (5.8,1.0) screws to attach the two mounts. Lyve Mo bile Mo unt - Fro nt Lo ader 4/27/22...
  • Page 9 Mobile Mount You can route cables through the front of Lyve Mobile Mount using the internal channel that runs the length of the mount. Five plastic cable holder covers are provided to secure the cables in the channel. To attach a cover, insert the rounded tab into a notch on the right side of the channel.
  • Page 10 Lyve Mo bile Mo unt - Fro nt Lo ader 4/27/22...
  • Page 11 Step 1 - Release handle A. Grasp the lock catch on the front of Lyve Mobile Mount and pull it forward to release the front lock bezel. B. Lower the front lock bezel to open Lyve Mobile Mount. Step 2 - Insert device Insert the device with the ports facing the back of Lyve Mobile Mount.
  • Page 12 Step 3 - Lock device in place Raise the front lock bezel until it snaps in place. Lyve Mo bile Mo unt - Fro nt Lo ader 4/27/22...
  • Page 13 Lyve Mo bile Mo unt - Fro nt Lo ader 4/27/22...
  • Page 14 Your computer must perform filing and housekeeping operations on your Lyve device before it is physically removed from Lyve Mobile Mount. To avoid corrupting or damaging files, always eject the device's volumes from your computer before physically removing the device.
  • Page 15 Secure Lock Catch The front lock bezel and lock catch can be secured with a padlock*. Insert the padlock shackle through the openings to the right or left of the catch plate. * Padlock not included. Lyve Mo bile Mo unt - Fro nt Lo ader 4/27/22...

  • Page 16: Regulatory Compliance

    Regulatory Compliance Product Name Seagate Lyve Mobile Mount Regulatory Model Number SMSE001 FCC DECLARATION OF CONFORMANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 17 CNS 15663, Guidance to reduction of the restricted chemical substances in electrical and electronic equipment. Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant. The following table meets the Section 5 “Marking of presence”...
  • Page 18 Lyve Mo bile Mo unt - Fro nt Lo ader 4/27/22...
