Mounting slots
Lifting hazard. The following instructions include moving and installing heavy
equipment. To avoid injury, always use proper lifting techniques.
Do not attempt to lift or assemble Lyve Mobile Mount with compatible devices inserted.
CAUTION

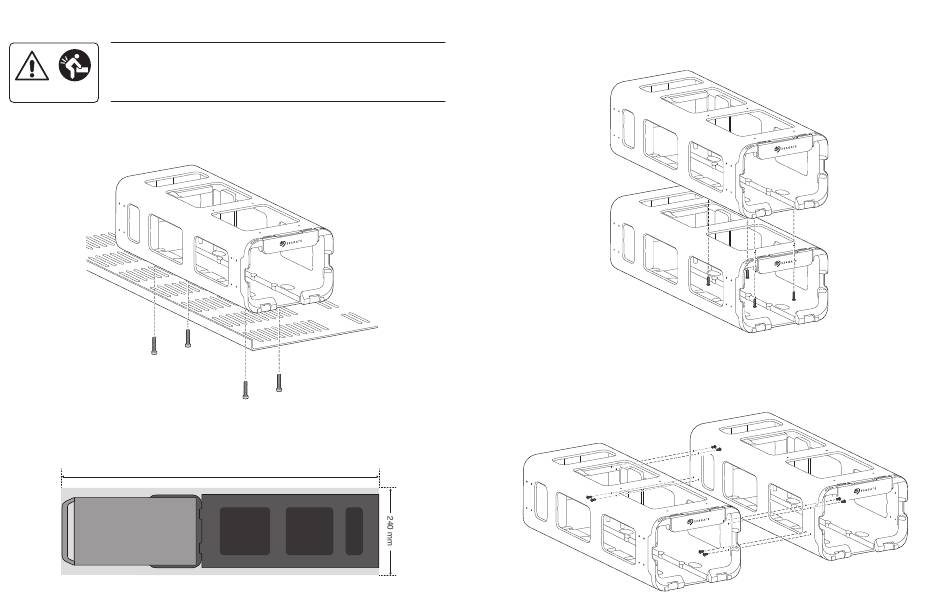

Before installing Lyve Mobile Array, ensure that Lyve Mobile Mount is securely fixed to the vehicle to
avoid excessive motion. Attach Lyve Mobile Mount to the appropriate surface by inserting M6-0.1 x
L20 (10.0,6) socket cap screws into any of the M6 tap holes on the bottom of the mount. Use at least
four screws to secure the mount (two at the front of the mount, and two at the back).
M3
M3
Recommended clearance zones
Lyve Mobile Array
4
M3
M3
970 mm
Lyve Mobile Mount
Connecting Lyve Mobile Mounts Vertically
Stack two Lyve Mobile Mounts and align the six attachment holes on the top and bottom of the
mounts. Use four M3-0.5 x L16 (5.8,1.0) screws to attach the two mounts.
M3
M3
M3
M3
Connecting Lyve Mobile Mounts Horizontally
Place two Lyve Mobile Mounts side-by-side and align the eight attachment holes on the sides of the
mounts. Use eight M3-0.5 x L7 (5.8,1.0) screws to attach the two mounts.
M3
M3
M3
M3
M3
M3
M3
M3
M3
M3
M3
M3
