  • Page 1 QUICK START GUIDE...

  • Page 2: Part List

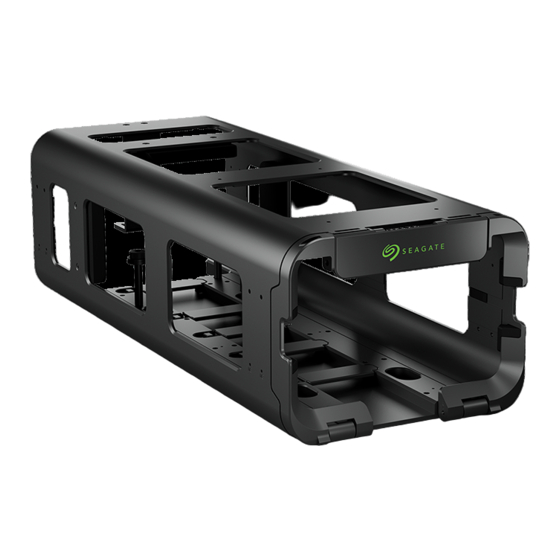

    Part List Lyve Mobile Mount ™ Shoulder screw M3-0.5 x L16 (5.8,1.0), M3-0.5 x L7 (5.8,1.0), M6-0.1 x L20 (10.0,6), 8 mm x M6-1.0 x phillips screw (6x) phillips screw (10x) hex socket cap screw (6x) 47+L13 (16.0,6.3) (x1) Cable holder cover (5x)

  • Page 3: Setup Requirements

    End users are provided with Lyve Token files that can be installed on certified client computers and Lyve Mobile Padlock devices. Once configured, computers/Padlock devices unlocking Lyve Mobile devices do not require continual access to Lyve Management Portal or the internet. For details on setting up security, go to www.seagate.com/lyve-security.
  • Page 4 Do not attempt to lift or assemble Lyve Mobile Mount with compatible devices inserted. CAUTION Before installing Lyve Mobile Array, ensure that Lyve Mobile Mount is securely fixed to the vehicle to avoid excessive motion. Attach Lyve Mobile Mount to the appropriate surface by inserting M6-0.1 x L20 (10.0,6) socket cap screws into any of the M6 tap holes on the bottom of the mount.
  • Page 5 Connecting Lyve Mobile Mounts Vertically Stack two Lyve Mobile Mounts and align the six attachment holes on the top and bottom of the mounts. Use four M3-0.5 x L16 (5.8,1.0) screws to attach the two mounts. Connecting Lyve Mobile Mounts Horizontally Place two Lyve Mobile Mounts side-by-side and align the eight attachment holes on the sides of the mounts.
  • Page 6 Remove guide pins Guide pins for use with a PCIe Adapter are preinstalled on Lyve Mobile Mount. If you are connecting a computer directly to Lyve Mobile Array’s host port, you’ll need to remove the guide pins. Use a 6mm hex key wrench to unscrew the guide pins from the bottom of Lyve Mobile Mount.

  • Page 7: Installation

    Installation Release handle A Grasp the lock catch on the front of Lyve Mobile Mount and pull it forward to release the front lock bezel. B Lower the front lock bezel to open Lyve Mobile Mount. Insert device Insert the device with the ports facing the back of Lyve Mobile Mount. Slide the device toward the back of the mount.
  • Page 8 Lock device in place Raise the front lock bezel until it snaps in place. Secure lock catch The front lock bezel and lock catch can be secured with a padlock*. Insert the padlock shackle through the openings to the right or left of the catch plate. * Padlock not included.
  • Page 9 www.seagate.com/support/mobile-mount...
  • Page 10 © 2022 Seagate Technology LLC. All rights reserved. Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. Lyve is either a trademark or registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/ or other countries.
