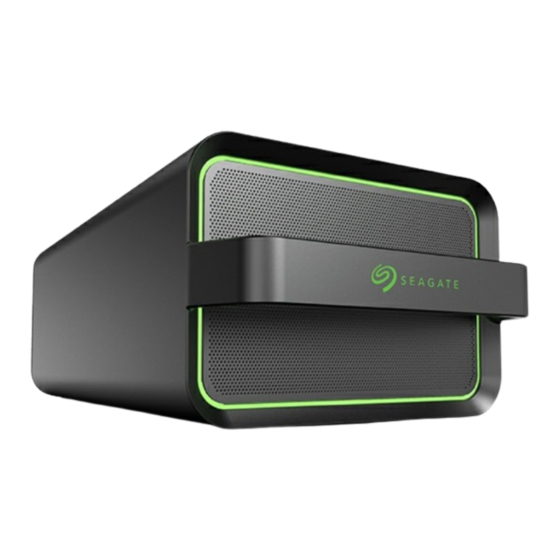

Lyve Mobile Array
User Manual
Model:
Hier klicken, um eine aktuelle Online-Version
dieses Dokuments aufzurufen. Auch finden Sie hier die aktuellsten Inhalte sowie erweiterbare
Illustrationen, eine übersichtlichere Navigation sowie Suchfunktionen.

Advertisement

Table of Contents
loading

Related Manuals for Seagate Lyve Mobile Array

Summary of Contents for Seagate Lyve Mobile Array

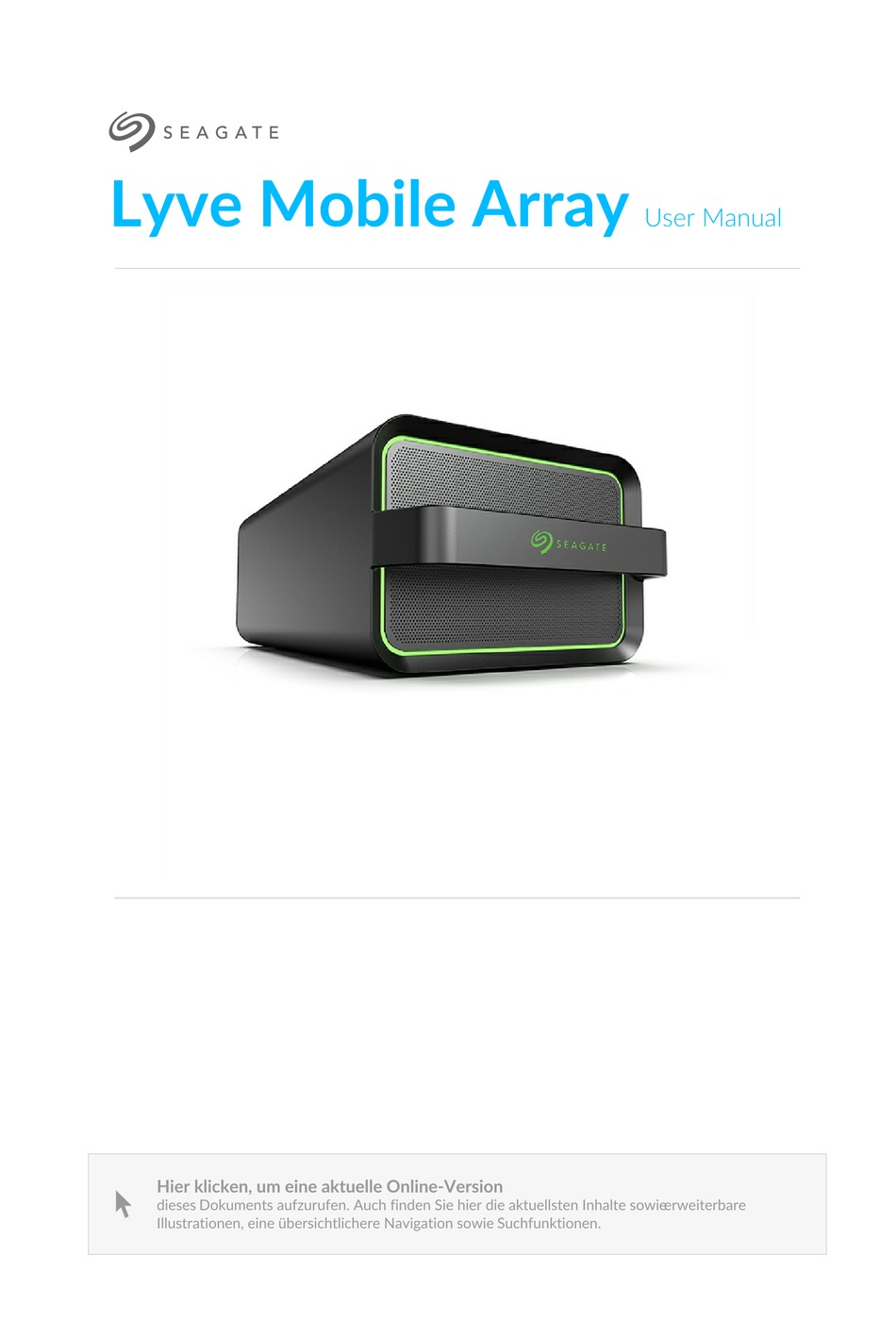

  • Page 1 Lyve Mobile Array User Manual Model: Hier klicken, um eine aktuelle Online-Version  dieses Dokuments aufzurufen. Auch finden Sie hier die aktuellsten Inhalte sowie erweiterbare Illustrationen, eine übersichtlichere Navigation sowie Suchfunktionen.

  • Page 2: Table Of Contents

    ......................... Seagate Lyve Rackmount Receiver ports 2 Setup Requirements .
  • Page 3 ......................... . . FCC DECLARATION OF CONFORMANCE .

  • Page 4: Welcome

    ® ™ Seagate Lyve Mobile Array is a portable, rackable data storage solution designed to quickly and securely store data at the edge or move data across your enterprise. Both the full-flash and hard drive versions enable universal data compatibility, versatile connectivity, secure encryption, and ruggedized data transportation.

  • Page 5: Minimum System Requirements

    Computer with one of the following: Thunderbolt 3 port USB-C port USB-A port (USB 3.0) Lyve Mobile Array does not support HighSpeed USB (USB 2.0) cables or interfaces.  Opera ng system ® Windows 10, version 1909 or Windows 10, version 20H2 (latest build) ®...

  • Page 6: Dimensions

    Power adapter 260W (20V/13A) When charging the device using the power supply port, use only the power supply provided  with your device. Power supplies from other Seagate and third-party devices can damage your Lyve Mobile Array. Ports Direct a ached storage (DAS) ports...

  • Page 7: Seagate Lyve Rackmount Receiver Ports

    Connections. Seagate Lyve Rackmount Receiver ports The following ports are used when Lyve Mobile Array is mounted in a Lyve Rackmount Receiver: Lyve USM™ Connector (High Performance PCIe gen 3.0)—Transfer large amounts of data to your private or public cloud for efficient throughput up to 6GB/s on supported fabrics and networks.

  • Page 8: Setup Requirements

    To unlock and access Lyve devices connected to your computer, you must enter your username and password in the Lyve Client app. You can also use it to manage Lyve projects and data operations. Install Lyve Client on any computer intended to connect to Lyve Mobile Array. Download the Lyve Client ®...
  • Page 9 Lyve Mobile Array locks when powered off, ejected or unplugged from the host computer, or  if the host computer goes to sleep. Use Lyve Client to unlock Lyve Mobile Array when it is reconnected to the host or the host has awakened from sleep. Note that Lyve Client must be open and the user must be signed in to use Lyve Mobile Array.

  • Page 10: Connection Options

    Connec on Op ons Lyve Mobile Array can be used as direct-attached storage. See Direct-Attached Storage (DAS) Connections. Lyve Mobile Array can also support connections via Fibre Channel, iSCSI and Serial Attached SCSI (SAS) connections using the Lyve Rackmount Receiver. For details, see the...

  • Page 11: Das-Verbindungen (Direct Attached Storage)

    Seagate und Drittanbietern können das Lyve Mobile Array beschädigen. An Host-Computer anschließen Lyve Mobile Array wird mit drei verschiedenen Kabeln geliefert, mit denen Sie es an den Host-Computer anschließen können. In der folgenden Tabelle sehen Sie die verschiedenen Kabel und mögliche Hostanschlüsse.

  • Page 12: Windows-Eingabeaufforderung: Freigabe Des Thunderbolt-Geräts

    USB-C-auf- USB 3.0 oder höher USB-A Schließen Sie das Lyve Mobile Array in der folgenden Reihenfolge an einen Computer an: A. Verbinden Sie das Thunderbolt 3-Kabel mit dem Thunderbolt 3-Hostanschluss des Lyve Mobile Array auf der linken Seite der Rückwand.

  • Page 13: Netzschalter

    Wenn es mit einer Steckdose verbunden wird, wird es automatisch eingeschaltet. Ausschalten – Werfen Sie die Volumes des Lyve Mobile Array immer sicher vom Hostcomputer aus, bevor Sie das Lyve Mobile Array ausschalten. Drücken Sie zum Ausschalten des Lyve Mobile Array den Netzschalter lange (3 Sekunden).
  • Page 14 Gehen Sie beim Wechsel des Verbindungstyps wie folgt vor, um diese Probleme zu vermeiden: 1. Werfen Sie das Volume sicher aus. 2. Schalten Sie das Lyve Mobile Array aus. 3. Ändern Sie die Verbindung nach Bedarf. 4. Schalten Sie das Lyve Mobile Array ein.

  • Page 15: Lyve Rackmount Receiver Connections

    Lyve Rackmount Receiver Connec ons For details on configuring Seagate Lyve Rackmount Receiver for use with Lyve Mobile Array and other compatible devices, see the Lyve Rackmount Receiver user manual. Connect Ethernet port Lyve Client communicates with devices inserted in Lyve Rackmount Receiver via the Ethernet management ports.
  • Page 16 Slide device in until it’s fully inserted and firmly connected to Rackmount Receiver's data and power. Close latches. Turn on power Lyve Rackmount Receiver 8/31/23...

  • Page 17: Turn On Power

    Turn on power Set the power switch on Lyve Mobile Rackmount Receiver to ON. Unlock the device The LED on the device blinks white during the boot process and turns solid orange. The solid orange LED color indicates the device is ready to be unlocked. Lyve Rackmount Receiver 8/31/23...
  • Page 18 Make sure the Lyve Client app is running on the host computer. The host computer will automatically unlock the device if it connected to it in the past and is still authorized for security. If the host computer has never unlocked the device, you will need to enter your Lyve Management Portal username and password in the Lyve Client app.

  • Page 19: Status Led

    Status LED The LED on the front of the enclosure indicates the device's status. See the key below for the color and animations associated with each status. Status Color 1 Color 2 Animation Description Steady Device is powered off. Identification Breathe A Lyve Client user has sent a prompt to identify the device.
  • Page 20 Status 8/31/23...

  • Page 21: Lyve Mobile Shipper

    Lyve Mobile Shipper A shipping case is included with Lyve Mobile Array. Always use the case when transporting and shipping Lyve Mobile Array.  For additional security, fasten the included beaded security tie to Lyve Mobile Shipper. The recipient knows the case was not tampered with in transit if the tie remains intact.

  • Page 22: Magnetic Labels

    Magne c Labels Magnetic labels can be placed on the front of Lyve Mobile Array to help identify individual devices. Use a marker or grease pencil to customize the labels. Magnetic 8/31/23...

  • Page 23: Regulatory Compliance

    Regulatory Compliance Product Name Regulatory Model Number Seagate Lyve Mobile Array SMMA001 FCC DECLARATION OF CONFORMANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 24 CNS 15663, Guidance to reduction of the restricted chemical substances in electrical and electronic equipment. Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant.
  • Page 25 Regulatory 8/31/23...
