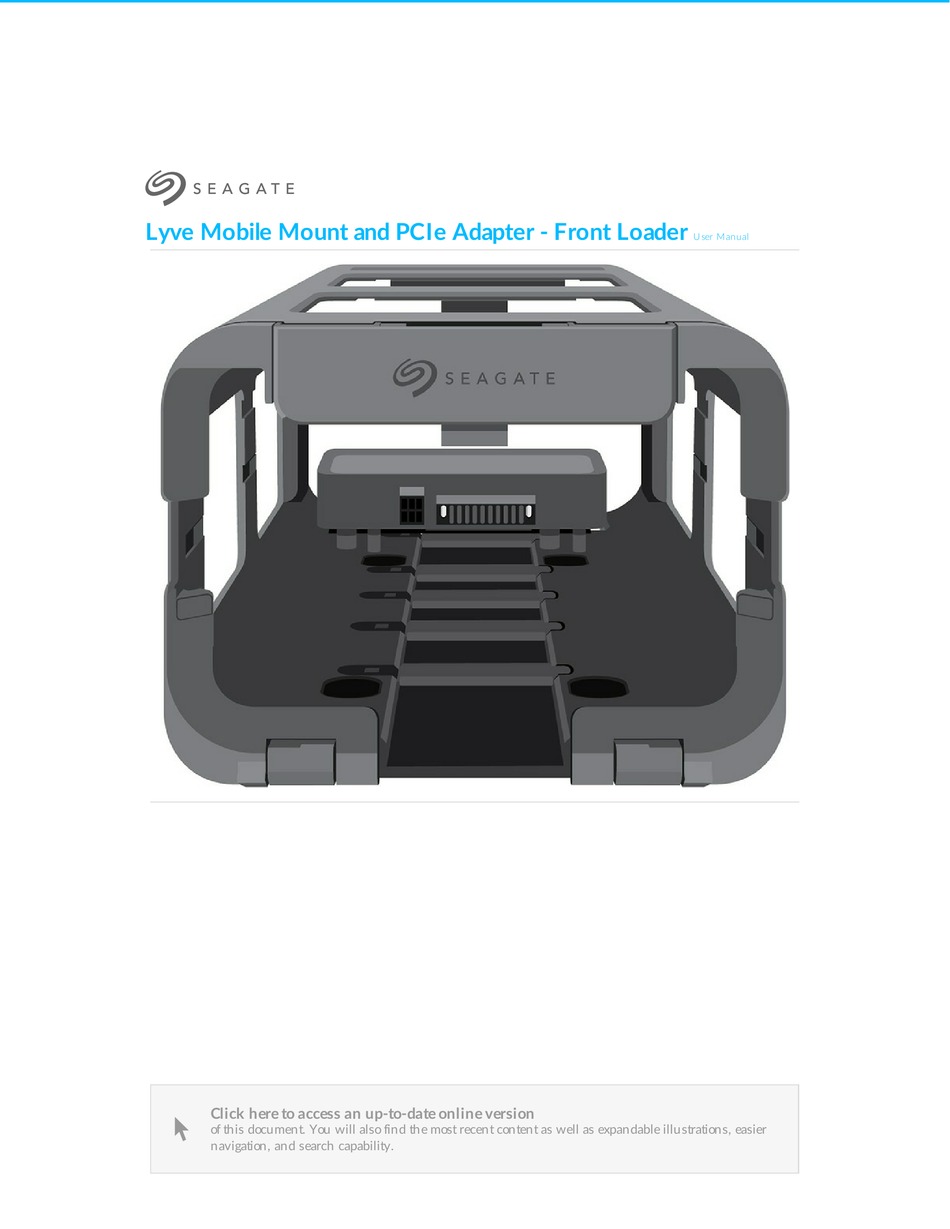

- Page 1 Lyve Mobile Mount and PCIe Adapter - Front Loader U ser Manual Click here to access an up-to-date online version of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.
- Page 2 ........................(Optio nal) Ro ute cables thro ugh the fro nt o f Lyve Mo bile Mo unt 5 Connect Lyve Mobile Array .
-
Page 4: Setup Requirements
Lyve account at lyve.seagate.com. Product admin or product user—You were identified as a product user for a project created in the Lyve Management Portal. An email was sent to you from the Lyve team that included a link for resetting your password. - Page 5 After 30 days, you’ll need to open Lyve Client on the computer and re-enter your credentials. Lyve Mobile Array locks when powered off, ejected or unplugged from the host computer, or if the host computer goes to sleep. Use Lyve Client to unlock Lyve Mobile Array when it is reconnected to the host or the host has awakened from sleep.
-
Page 6: Part List
Mounts M3-0.5 x L7 (5.8,1.0), For vertical installation of two Lyve Mobile Mounts phillips screw M6-0.1 x L20 (10.0,6), hex Shelf installation socket cap screw Lyve Mo bile Mo unt and PCIe Adapter - Fro nt Lo ader 3/21/22... - Page 7 Power adapter Power cord US Power cord UK Power cord EU Power cord AU/NZ Cable holder cover SFF-8644 cable Lyve Mo bile Mo unt and PCIe Adapter - Fro nt Lo ader 3/21/22...
- Page 8 Lyve Mo bile Mo unt and PCIe Adapter - Fro nt Lo ader 3/21/22...
- Page 9 Recommended clearance zones Moun ng slots Before installing Lyve Mobile PCIe Adapter, ensure that Lyve Mobile Mount is securely fixed to a vehicle, apparatus, or structure to avoid excessive motion. Attach Lyve Mobile Mount to the appropriate surface by inserting M6-0.1 x L20 (10.0,6) socket cap screws into any of the M6 tap holes on the bottom of the mount.
- Page 10 Connec ng Lyve Mobile Mounts ver cally Stack two Lyve Mobile Mounts and align the four attachment holes on the top and bottom of the mounts. Use four M3-0.5 x L16 (5.8,1.0) screws to attach the two mounts. Connec ng Lyve Mobile Mounts horizontally...
- Page 11 Use eight M3-0.5 x L7 (5.8,1.0) screws to attach the two mounts. Lyve Mo bile Mo unt and PCIe Adapter - Fro nt Lo ader 3/21/22...
-
Page 12: Step 3 - Connect Power
Install and Connect PCIe Adapter Step 1 - Insert adapter Slide Lyve Mobile PCIe Adapter onto the guide pins at the back of Lyve Mobile Mount. Step 2 - A ach shoulder screw Insert the shoulder screw into the hole and tighten it. -
Page 13: Step 4 - Connect Cables
4. Slide the locking bracket forward and clip it on the beveled rim on PCIe Adapter. Step 4 - Connect cables Connect the cables to PCIe Adapter: Ethernet*: Device configuration SFF-8644: Data Lyve Mo bile Mo unt and PCIe Adapter - Fro nt Lo ader 3/21/22... - Page 14 * Ethernet cable not included. (Op onal) Secure cables Standard cable ties can be used to fasten the attached cables to the bracket at the back of Lyve Mobile Mount. (Op onal) Route cables through the front of Lyve Mobile Mount You can route cables through the front of Lyve Mobile Mount using the internal channel that runs the length of the mount.
- Page 15 Lyve Mo bile Mo unt and PCIe Adapter - Fro nt Lo ader 3/21/22...
- Page 16 Step 1 - Release handle 1. Grasp the lock catch on the front of Lyve Mobile Mount and pull it forward to release the front lock bezel. 2. Lower the front lock bezel to open Lyve Mobile Mount. Step 2 - Insert device...
- Page 17 Step 2 - Insert device Insert the device with the ports facing the PCIe Adapter at the back of Lyve Mobile Mount. Slide the device toward the back of the mount. Apply firm pressure until the device is seated in Mobile Mount and firmly connected to the PCIe Adapter.
- Page 18 Make sure the Lyve Client app is running on the host computer. The host computer will automatically unlock the device if it connected to it in the past and is still authorized for security. If the host computer has never unlocked the device, you will need to enter your Lyve Management Portal username and password in the Lyve Client app.
- Page 19 Safely Removing a Device Your computer must perform filing and housekeeping operations on your Lyve device before it is physically removed from Lyve Mobile Mount. To avoid corrupting or damaging files, always eject the device's volumes from your computer before physically removing the device.
- Page 20 The front lock bezel and lock catch can be secured with a padlock*. Insert the padlock shackle through the openings to the right or left of the catch plate. * Padlock not included. Lyve Mo bile Mo unt and PCIe Adapter - Fro nt Lo ader 3/21/22...
-
Page 21: Regulatory Compliance
4. Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. China RoHS Lyve Mo bile Mo unt and PCIe Adapter - Fro nt Lo ader 3/21/22... -
Page 22: Taiwan Rohs
CNS 15663, Guidance to reduction of the restricted chemical substances in electrical and electronic equipment. Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant. The following table meets the Section 5 “Marking of presence”... - Page 23 Lyve Mo bile Mo unt and PCIe Adapter - Fro nt Lo ader 3/21/22...
