© 2021 Seagate Technology LLC. All rights reserved. Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United

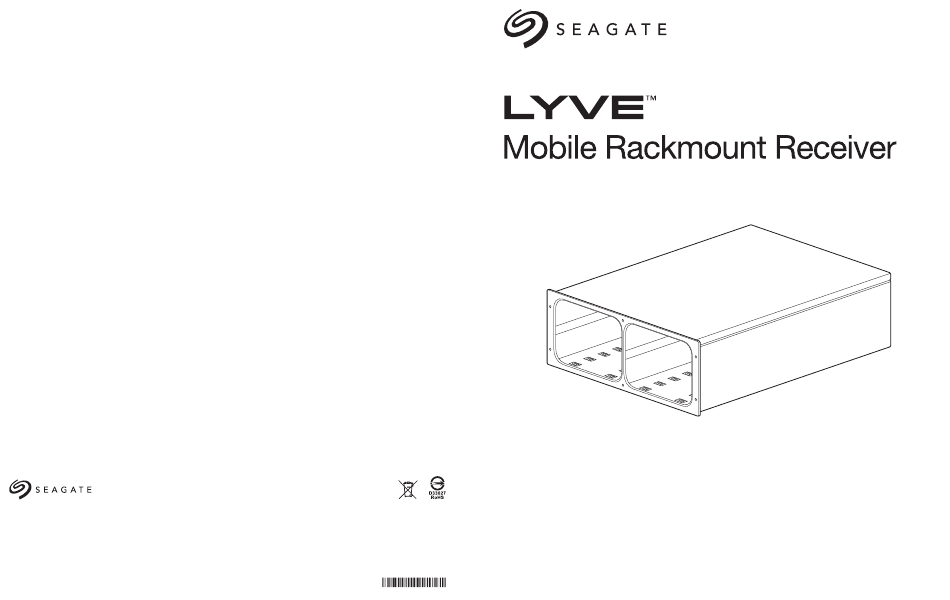

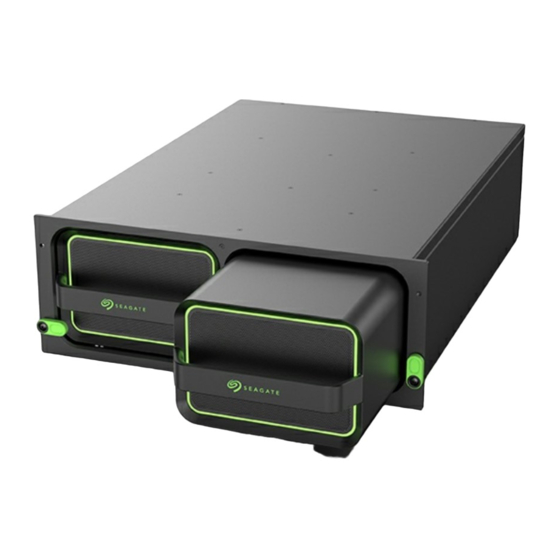

QUICK START GUIDE
States and/or other countries. Lyve is either a trademark or registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/or
other countries. All other trademarks or registered trademarks are the property of their respective owners. Complying with all applicable copyright laws is the responsibility
of the user. Seagate reserves the right to change, without notice, product offerings or specifications.
Seagate Technology LLC., 47488 Kato Road, Fremont, CA 94538 USA www.seagate.com
Seagate Technology NL B.V., Tupolevlaan 105, 1119 PA Schiphol-Rijk NL
Seagate Technology NL B.V., (UK Branch), Jubilee House, 3rd Ave, Globe Pk, Marlow SL7 1EY, UK
Seagate Singapore International Headquarters Pte. Ltd., 90 Woodlands Avenue 7 Singapore 737911
PN: 100869101C 03/21
100869101C
Advertisement
Table of Contents
Related Manuals for Seagate LYVE SMAP001
Summary of Contents for Seagate LYVE SMAP001
- Page 1 QUICK START GUIDE States and/or other countries. Lyve is either a trademark or registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners. Complying with all applicable copyright laws is the responsibility of the user.
- Page 2 Rackmount Kit Parts List F Stepped washer (8x) E 10-32 flat head screw (8x) G M4 flat pan D 10-32 cage nut (4x) head screw (4x) Back rails (2x) I Flat washer (4x) Front rail left B A C K H 10-32 pan head screw (4x) Back rails (2x)
-
Page 3: Rack Assembly
Rack Assembly Attach cage nuts Attach two 10-32 cage nuts to each front rack post. Leave 101.6 mm space between the two nuts on each post. Attach M4 rack screws to the front rails Your rack may have standard 7.1 mm or .375” openings. M4 screws are provided for both hole dimensions. Insert an M4 screw for 7.1 mm or .375”... - Page 4 Attach the front rails to the front of the rack Attach the back rails to the back of the rack Position the left front rail on the cage nut on the left front rack post. Insert two 10-32 flat head screws Position the back rails at the correct height on the rear rack posts.
- Page 5 Attach the front rails to the back rails Install Lyve Mobile Rackmount Receiver ™ Use M4 flat pan head screws to attach the front rails to the back rails. CAUTION Removing Lyve Mobile Rackmount Receiver from its packaging TWO-PERSON and carrying the unit must be performed by at least two people. LIFT REQUIRED Receiver weight (empty): 47.52 lb/21.6 kg Do not attempt to lift or assemble Lyve Mobile Rackmount Receiver with compatible devices inserted.
-
Page 6: Recommended Clearance
Views Recommended Clearance Front view Slot B Slot A 30 cm Back view Power switch Power input – A Power input – B Slot A/Left Slot A/Right Slot B/Left Slot B/Right Host interface CLI – A*** Host interface Host interface CLI –... -
Page 7: Setup Requirements
Lyve team that included a link for resetting your password. Connect the appropriate fibre optic, Ethernet, or SAS cables to available ports on Lyve Mobile Rackmount If you can’t remember your credentials or you lost your email invitation, visit lyve.seagate.com. Receiver’s back panel. -
Page 8: Connect Power
Connect power Connect Ethernet port S lo t A / L e ft Insert the zip tie into the slot below the socket. Lyve Client communicates with devices inserted in Lyve Rackmount Receiver via the Ethernet management ports. Ensure that the Ethernet management ports are connected to the same network as the host devices running Lyve Client. -
Page 9: Unlock The Device
Slide device in until it’s fully inserted and firmly connected to Lyve Mobile Rackmount Receiver’s data and power. Close latches. Unlock the device The LED on the device inserted in Lyve Rackmount Receiver blinks during the boot process and turns solid orange. - Page 10 China RoHS 2, we determined this product’s Environmental Protection Use Period (EPUP) to be 20 years in Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan accordance with the Marking for the Restricted Use of Hazardous Substances in Electronic and Electrical Products, SJT RoHS compliant.
