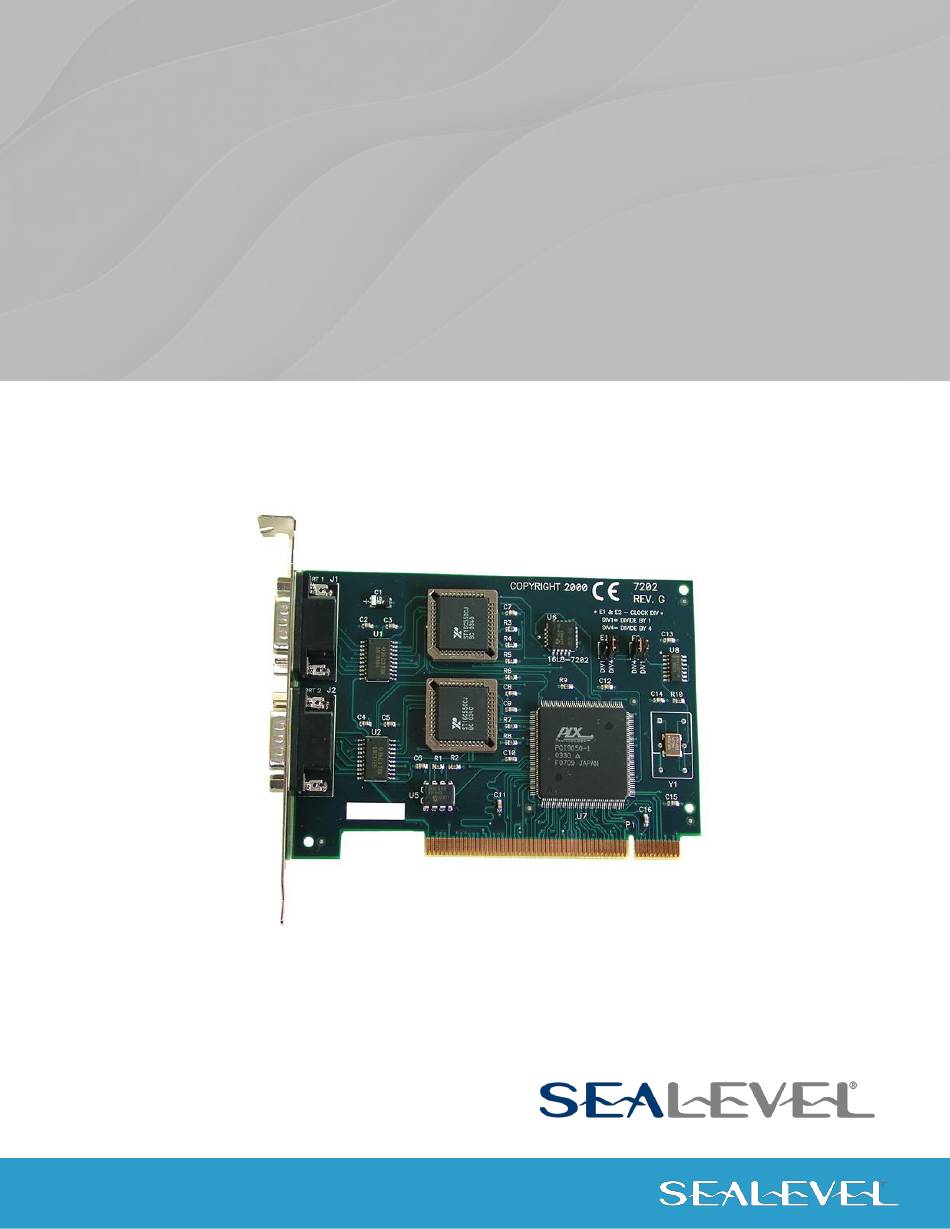

- Page 1 COMM+232.PCI User Manual | 7202 © Sealevel Systems, Inc. 7202 Manual | SL9059 7/2021...
-
Page 2: Table Of Contents
APPENDIX C – ELECTRICAL INTERFACE ......................16 APPENDIX D – ASYNCHRONOUS COMMUNICATIONS .................. 17 APPENDIX E – SILK SCREEN ..........................18 APPENDIX F – COMPLIANCE NOTICES ......................19 WARRANTY ................................ 21 © Sealevel Systems, Inc. 7202 Manual | SL9059 7/2021... -
Page 3: Introduction
Introduction The Sealevel COMM+232.PCI is a two channel PCI Bus serial I/O adapter for the PC and compatibles. It provides two RS-232 serial ports supporting data rates up to 460.8K bps. The COMM+232.PCI works seamlessly with the standard operating system serial driver. UART upgrades are available providing 32. -
Page 4: Before You Get Started
Before You Get Started What’s Included The COMM+232.PCI is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. • COMM+232.PCI Serial I/O Adapter Advisory Conventions Warning The highest level of importance used to stress a condition where damage could result to the product, or the user could suffer serious injury. - Page 5 Port # Clock Mode Port 1 DIV4 Port 2 DIV4 To install the COMM+232.PCI using factory default settings, refer to Installation. For your reference, record installed ULTRA COMM+2.PCI settings below: Port # Clock Mode Port 1 Port 2 © Sealevel Systems, Inc.
-
Page 6: Card Setup
Adding or removing other hardware may change the assignment of I/O addresses and IRQs. Clock Modes The COMM+232.PCI employs a unique clocking option that allows the end user to select from divide by 4 and divide by 1 clocking modes. These modes are selected at Headers E1 and E2. - Page 7 If your communications package allows the use of Baud rate divisors, choose the appropriate divisor from the following table: For this Data Rate Choose this Divisor 1200 bps 2400 bps 4800 bps 9600 bps 19.2K bps 38.4K bps 57.6K bps 115.2K bps 230.4K bps 460.8K bps © Sealevel Systems, Inc. 7202 Manual | SL9059 7/2021...
-
Page 8: Installation
Linux releases. Also included is a series of files explaining proper Linux syntax and typical Linux serial implementations. For the most up to date information on the QNX4 and QNX6 software support, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available from 8:00AM-5PM Eastern Time, Monday through Friday. -
Page 9: Hardware Installation
Hardware Installation The COMM+232.PCI can be installed in any of the PCI expansion slots and contains several jumper straps for each port that must be set for proper operation. 1. Turn off PC power. Disconnect the power cord. 2. Remove the PC case cover. -
Page 10: Technical Description
IRQ (short for Interrupt ReQuest). In these early days of PC’s Sealevel Systems decided that the ability to share IRQs was an important feature for any add-in I/O card. Consider that in the IBM XT the available IRQs were IRQ0 through IRQ7. Of these interrupts only IRQ2-5 and IRQ7 were actually available for use. - Page 11 The ISP is at Base+7 on each port (Example: Base = 280 Hex, Status Port = 287, 28F… etc.). The COMM+232.PCI will allow any one of the available locations to be read to obtain the value in the status register. Both status ports on the COMM+232.PCI are identical, so any one can be read.
-
Page 12: Specifications
10 to 90% R.H. Non-Condensing Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Consumption... -
Page 13: Appendix A - Troubleshooting
Appendix A – Troubleshooting Serial Utility test software is supplied with the Sealevel Systems adapter and will be used in the troubleshooting procedures. By using this software and following these simple steps, most common problems can be eliminated without the need to call Technical Support. - Page 14 Following these steps will change the COM: number assignments on the first two ports to COMS: 3 and 4. If these steps do not solve your problem, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available from 8:00AM-5PM Eastern Time, Monday through Friday. For email support contact: support@sealevel.com.
-
Page 15: Appendix B - How To Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp. -
Page 16: Appendix C - Electrical Interface
The RS-232 and the EIA/TIA-574 specification define two types of interface circuits, Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The COMM+232.PCI is a DTE device. © Sealevel Systems, Inc. 7202 Manual | SL9059 7/2021... -
Page 17: Appendix D - Asynchronous Communications
The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e.,9600,N,8,1). © Sealevel Systems, Inc. 7202 Manual | SL9059 7/2021... -
Page 18: Appendix E - Silk Screen
Appendix E – Silk Screen 3.5" 5.0" 3.175" © Sealevel Systems, Inc. 7202 Manual | SL9059 7/2021... -
Page 19: Appendix F - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. 7202 Manual | SL9059 7/2021... - Page 20 Appendix F – Compliance Notices, Continued Caution Sealevel Systems, Inc. is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution of attachment of connecting cables and equipment other than those specified by Sealevel Systems. Such unauthorized modifications, substitutions, or attachments may void the user’s authority to operate the equipment.
-
Page 21: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
