Merrick
Assembly Instructions
Dimensions
Width - 33cm
Depth - 33cm
Height - 108,5cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
14-3B-237_01

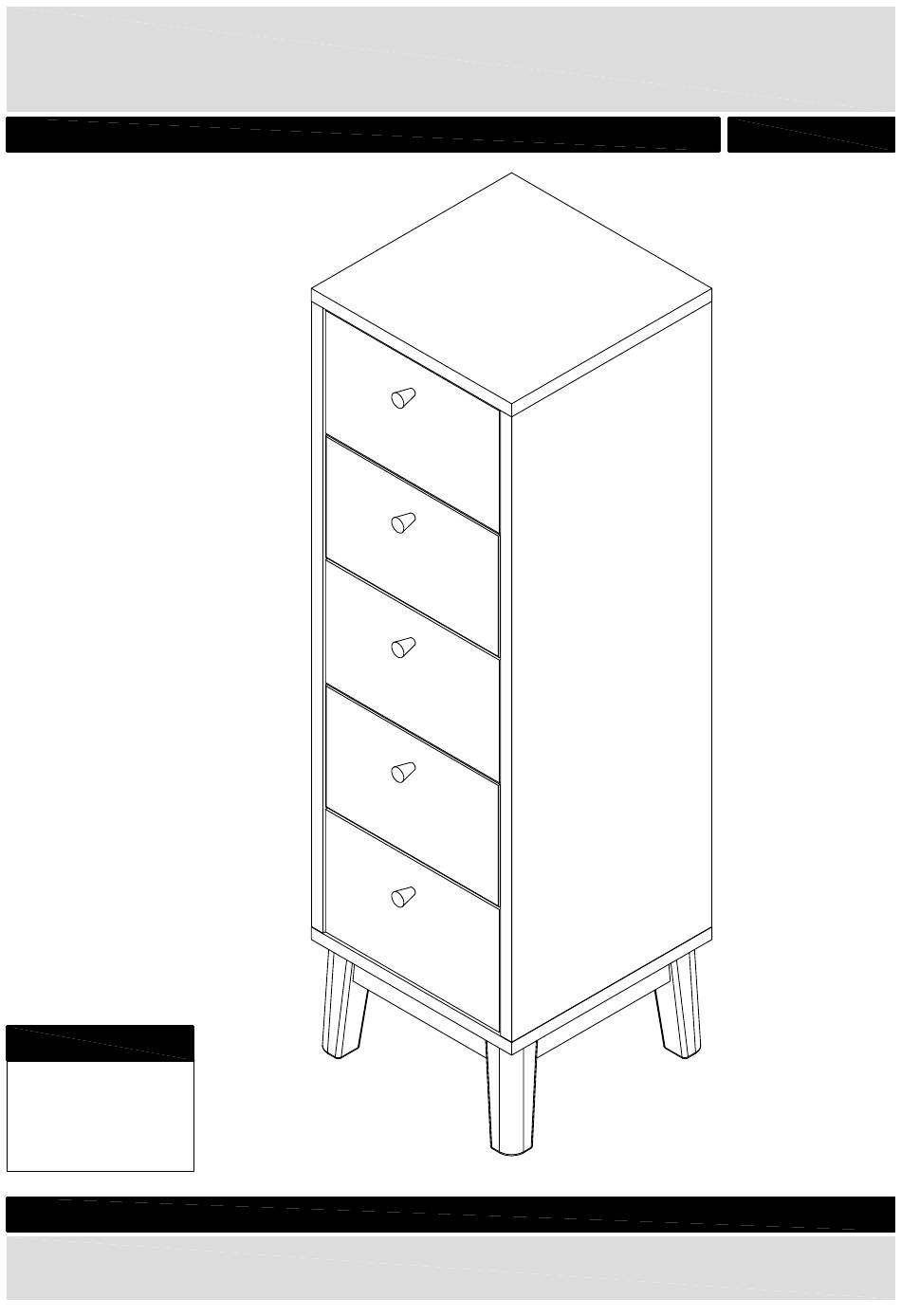

5 Drawer chest ( Tall Boy)
- Please keep for future reference
214/7071
0845 077 8888
Issue 1 - 14/04/21
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Merrick 214/7071
Summary of Contents for Argos Merrick 214/7071
- Page 1 5 Drawer chest ( Tall Boy) Merrick Assembly Instructions - Please keep for future reference 214/7071 Dimensions Width - 33cm Depth - 33cm Height - 108,5cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0845 077 8888 14-3B-237_01 Issue 1 - 14/04/21...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on • To reduce the components and tools listed on the product, this could cause likelihood of the following pages.
- Page 3 If you have damaged or missing commponents, Components - Panels call the Customer Helpline: 0845 077 8888 Please check you have all the panels listed below Top panel x 1 (33 x 33cm) Base x 1 Left side panel x 1 Right side panel x 1 (33 x 33cm) (33 x 89,3cm)
- Page 4 Components - Fittings Please check you have all the fittings listed below Note : The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 6/30mm Wooden dowel x 10 8/30mm Wooden dowel x 8 Spanner 13mm x 1 Nail x 38...
- Page 5 Assembly Instructions Step 1 Attaching legs Position the leg shown on the picture, place the washer fix the nut T using the spanner. Repeat assembly for the remaining legs. Step 2 Preparation for the Preparation for the attaching of side attaching of side panels panels Insert screws E into the...
- Page 6 Assembly Instructions Step 3 Side panels Insert wooden dowels B into the drilled holes in side panels 1 and 2 and place the side panels 1 and 2 onto the base 4 . Insert large locking nuts G into the drilled holes in side panels 1 and 2 and turn them clockwise...
- Page 7 Assembly Instructions Step 5 Note: You must ensure Attaching back panel the bedside chest is Position back panel square before attaching in position on the back of the back panel. drawer chest. Position nails 5 mm in from side edge of the back panel with distance 100 mm between each...
- Page 8 Assembly Instructions Step 7 Stick the self-adhesive caps onto the holes as shown on the picture. Step 8 Drawer assembly a: Insert screws into drawer front b: Insert wooden dowels into left and right drawer sides c: Insert plastic dowels into left drawer side and drawer back...
- Page 9 Assembly Instructions Step 8 - continued e: Slide drawer base into the grooves. f: Place drawer front onto sides. g: Align correctly and insert small locking nuts into left and right drawer sides turn them clockwise to lock. h: Position left and right runners B to left and right drawer sides...
- Page 10 Assembly Instructions Step 10 Note: Wall fixings are not supplied with this unit. Fixing to wall The correct type of fixing must It is recomended that the chest is fixed to a wall. be used for your wall, seek professional advice if in doubt. Poke wall strap through the hole in the back panel and fix it to top...
- Page 11 Assembly Instructions Step 11 Drawer runner adjustment To move drawers up or down: loosen screws shown and move runners up or down as required. Retighten screws and fix the runners using screws Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: 0845 077 8888 Home Retail Group Plc, 489 - 499 Avebury Boulevard, Milton Keynes, MK9 2NW...
- Page 12 A Guide to Wall Mounting & Fixings IMPORTANT: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. HINTS: 1) General Rule Always use a larger screw and wall plug if you are not sure.
