Argos 213/4864 Assembly Instructions Manual

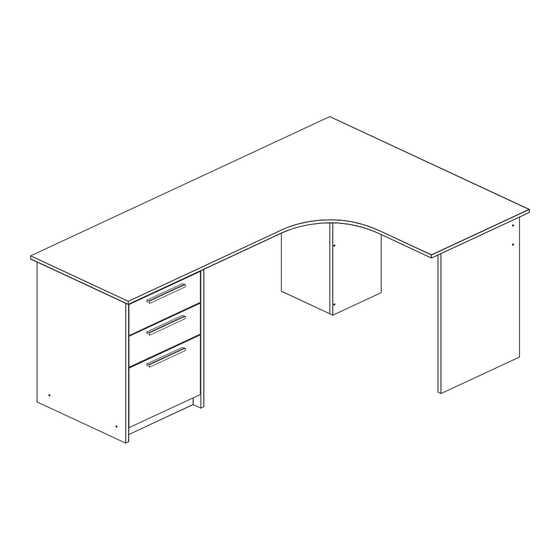

Large shaped corner desk
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Large Shaped Corner Desk
Assembly Instructions -
Dimensions
Width - 150cm
Depth - 100cm
Height - 73cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
213/4864
MADE IN
BRITAIN
Issue 2 - 16/05/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 213/4864 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Argos 213/4864

Summary of Contents for Argos 213/4864

  • Page 1 Large Shaped Corner Desk Assembly Instructions - 213/4864 Please keep for future reference Dimensions Width - 150cm Depth - 100cm MADE IN Height - 73cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
  • Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 36kgs. space to layout the parts before recommend the Please lift with care. starting.
  • Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Desktop Right End Filer Left Side (DF729) (DF730) (DF958) (1500 x 1000mm) (706 x 394mm) (706 x 444mm) Filer Right Side...
  • Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
  • Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the 2 drawer fronts Screw 2 metal dowels into each of the drawer fronts Note: Tighten the metal dowels up fully against the panels.
  • Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
  • Page 7 Assembly Instructions Step 8 Fit a file side to the file wraps Position a file side onto 2 file wraps , as shown. Tap 4 knock-in pegs through the holes in the file side and into the file wraps Step 9 Fit the other file side to the file wraps Position the file side...
  • Page 8 Assembly Instructions Step 11 Attach the handles Attach a handle to the file front using screw Note: Do not overtighten the screw. Step 12 Runners must be Fit the runners to the pushed up against file sides the file front Turn the filer drawer assembly over.
  • Page 9 Assembly Instructions Step 13 Prepare the desktop Screw 7 metal dowels into the desktop Step 14 Prepare the right end 10mm Insert a large locking into the right end Note: The arrow on the locking nut must point towards the hole in the edge of the panel.
  • Page 10 Assembly Instructions Step 15 Fit the right end to the desktop Finished front edge Push the right end down onto the desktop Use a screwdriver to tighten the large locking fitted to the right Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.

  • Page 11: Table Of Contents

    Assembly Instructions Step 18 Fit the right upright to the desktop Finished Push the right upright front edge down onto the desktop Use a screwdriver to tighten the 2 large locking nuts fitted to the right upright Step 19 Fit the right upright to the small modesty Attach the right upright to the small modesty...
  • Page 12 Assembly Instructions Step 21 Fit the left upright to the desktop Push the left upright down onto the desktop Use a screwdriver to tighten the 2 large locking nuts fitted to the left upright Step 22 Fit the right upright to the left upright Line up the edges of the right upright...

  • Page 13: Front Edge

    Assembly Instructions Step 24 Prepare the filer right side Place 2 runners the filer right side shown. Slide back the top of runner and use the 2nd hole from the front Finished to fit the 1st screw front edge Slide the runner back the other way and fit the 2nd screw into...

  • Page 14: Use A Screwdriver To

    Assembly Instructions Step 25 Fit the right filer to the desktop Push the filer right side down onto the desktop Use a screwdriver to tighten the large locking fitted to the filer right side Step 26 Fit the filer right side to the large modesty Attach the filer right side to the large modesty...
  • Page 15 Assembly Instructions Step 28 Prepare the filer left side Place 2 runners Finished the filer left side front edge shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into...

  • Page 16: Step 30

    Assembly Instructions Step 29 Fit the 2 rails to the filer right side Attach the 2 rails the filer right side using 2 screws Note: Support the 2 rails until the filer left side has been fitted in the next step.
  • Page 17 Assembly Instructions Step 31 Fit the plastic nails Tap 2 plastic nails into the bottom edge of the right end , filer left side , filer right side left upright and right upright Step 32 The measurement from top corner X to bottom corner X must be Fit the back equal to the measurement from top corner Y to bottom corner Y Square up the filer...
  • Page 18 Assembly Instructions Step 33 Fit the 2 drawers Starting with the bottom drawer, slide both the runners forward and locate the drawer sides between them, lining up the holes in the drawer wrap with the 2nd 'threaded' holes in the runners Working from the inside of the drawer, insert 2...
  • Page 19 Step 35 Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
