Reese 78090 Installation Instructions

READ THIS FIRST:
Read and follow all instructions
carefully before beginning installation.
LISEZ CECI EN PREMIER:
Lire et suivre toutes les instructions
attenrivement avant le montage.
LEA ESTO PRIMERO:
Lea y siga todas las instrucciones
cuidadosa-mente antes de iniciar la
instalación.
TOWING VEHICLE:

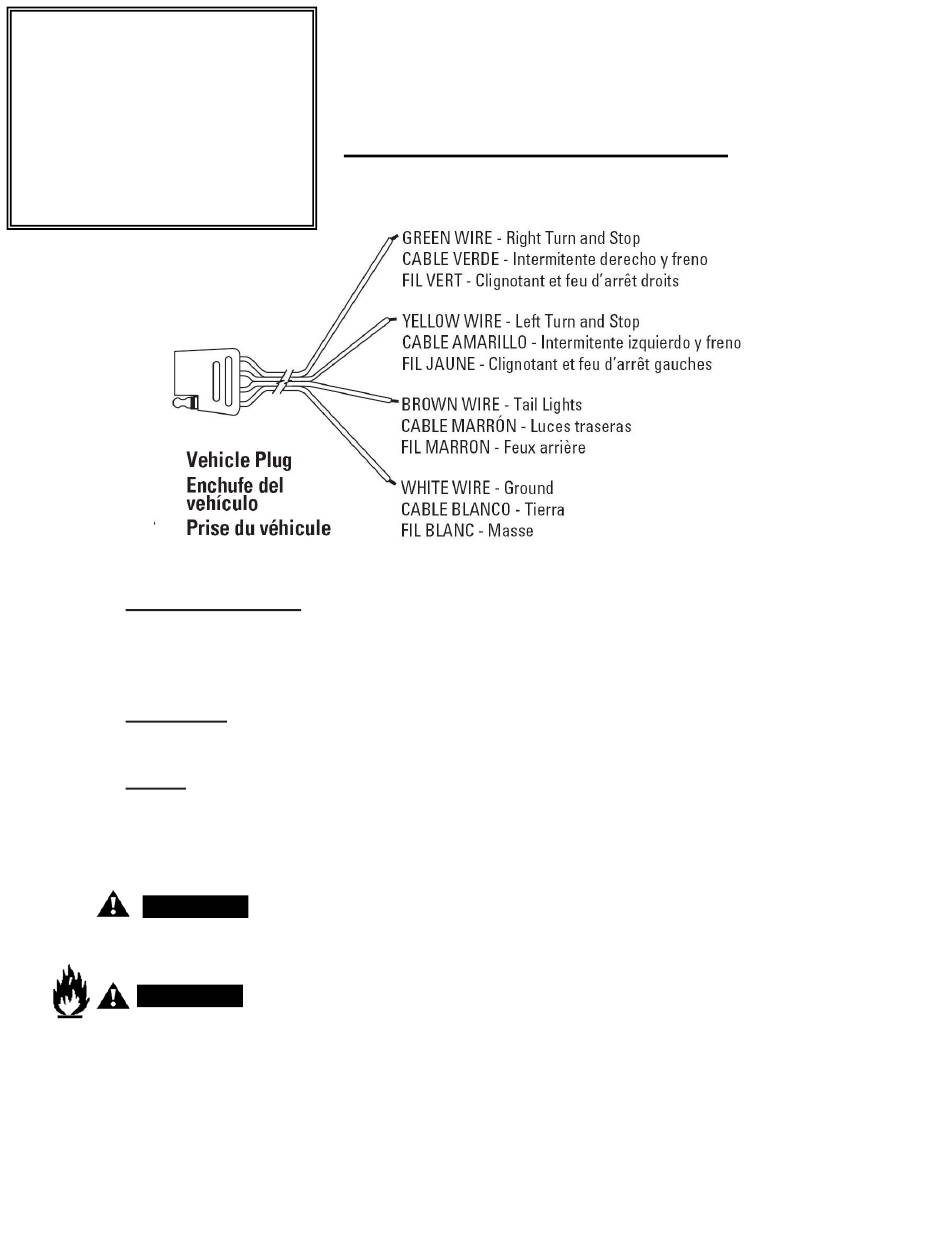

1. Locate the appropriate wires at rear of vehicle using circuit tester and the chart
as a reference.
2. Make the connections as shown using wire taps.
3. Connect the Ground wire (White) to the vehicle frame or body.
GENERAL:
1. Test all lights.
2. Secure all loose wires.
NOTE:
• Vehicles with separate turn and stop lights require a taillight converter.
• lf splicing into the vehicle wiring, check the vehicle owner's manual and/or
local dealer for any warnings or restrictions before splicing. When splicing
use appropriate gauge wire splices.
WARNING
All connections must be complete to function properly. Test and verify installation
with a test light, circuit tester or trailer once installed.
WARNING
Overloading circuit can cause fires. DO NOT exceed lower of towing manufacturer
rating or:
• Max. Right Turn, Left Turn, Stop, & Tail Light Circuits: (7.5 amps)
• Max. (+) Battery, Reverse, and Electric Brake Circuits: (30 amps)
Read vehicle's owners manual & instruction sheet for additional information.
Additional fusing may be required.
lnstallation lnstructions
lnstrucciones de instalación
Directives de montage
Towing Vehicle 4-way Flat Plug
