- Page 1 Fusion5X Max Cellular signal booster kit for the Home or Office User Guide 01.11.2022...
- Page 2 Thank you for purchasing SureCall’s Fusion5X Max cellular signal booster kit. SureCall’s Fusion5X Max was specifically designed to eliminate frustrations over dropped calls and limited range by amplifying incoming and outgoing cellular signals in homes and offices. If you have any questions during setup, please reach out to our US-based experienced support technicians: Call: 1-888-365-6283 Email: support@surecall.com...
-
Page 3: Table Of Contents
Performance Optimization ..............................13 TROUBLESHOOTING ................................13 LCD INDICATIONS ..................................14 SPECIFICATIONS ..................................18 Configuration ..................................19 Kitting ....................................19 CONSUMER GUIDELINES ................................. 20 WARRANTY ....................................21 Three-Year Product Warranty ..............................21 SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... -
Page 4: How It Works
The high-gain outside antenna captures even the weakest cell signal, from the cell tower where it is aimed. The Fusion5X Max outside booster uses Extended Range Technology™ (ERT) to grab signal outside, at its strongest point, where it boosts voice, text and data signals for all 4G & 5G devices. - Page 5 Ultra-Thin 75 ft SC-Fusion5X-Max-Y2P Fusion5X 2.0 Yagi / 2 Panel Yagi 100 ft Panel 75 ft Your Fusion5X Max signal booster package includes the following items: ➊ ➋ ➌ SC-232W Outside Yagi antenna Fusion5X Max Outside SC-400-100NN and mounting bracket...
-
Page 6: Installation Overview
Bars are not always a reliable measure of signal. The best way to confirm signal coverage is the ability to place and hold a call. SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... -
Page 7: Step 2. Install The Outside Yagi Antenna And Outside Amplifier
14 and later: Navigate to LTE in the menu list then tap on Serving Cell Meas. The measurements that read • “rsrp0” and “rspr1” are your cellular signal strength in decibel-milliwatts. If you’re using an earlier version of iOS, we have more information available here: https://blog.surecall.com/enter- • field-test-mode-on-iphone-or-android-phones/ Android devices: Download the app “Network Signal Info”... - Page 8 With both components in place, connect one end of the provided 75 ft. coax cable to the outside amplifier and hand tighten the connection. ➌ Outside system assembly IMPORTANT: Take caution during installation to not aim these antenna towards the other antenna Aiming Directional Antennas SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com...
-
Page 9: Step 3. Install The Inside Antennas
Note: Be sure to provide enough separation from outdoor antenna (at least 25 ft. is RF ANTENNA recommended). CABLE THREADED MOUNT THREADED NUT CEILING SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... - Page 10 Connect each indoor antenna to an indoor cable provided with your kit. Run the cables along route toward the planned location of your booster. SC-400 FLAT SURFACE Note: Be sure to provide enough separation from outdoor antenna (at least 25 ft. is recommended). SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com...
-

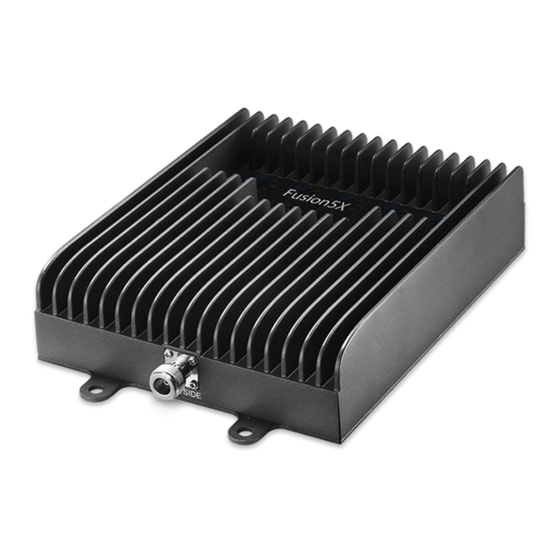

Page 11: Step 4: Place The Inside Host Unit And Connect Cables
“OUTSIDE”. Connector to outside antenna Power Switch Power Jack Connector to Power LED outside antenna Screw tab holes for optional wall mounting Connectors to inside antennas Host Unit Diagram SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... -
Page 12: Step 5: Connect Power Source And Turn On
Note: Bars are not always a reliable measure of signal. The best way to confirm signal coverage is the ability to place and hold a call. Important: The booster gain should remain at maximum level and only reduced if other recommended actions do not resolve the issue. SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... -
Page 13: Performance Optimization
Performance Optimization The Fusion5X Max automatically reduces gain (coverage performance) because of insufficient RF Separation between the inside and outside antennas. Consider the following options to resolve issues with inadequate antenna isolation. Verify that a minimum distance of 25 vertical feet has been achieved. Separation up to 50 ft of horizontal distance may be needed, however, especially where vertical separation is not possible. -
Page 14: Lcd Indications
1 LCD display Preview 2 Parameters State Band Name Downlink RSSI Output downlink Downlink nominal gain uplink nominal gain uplink Parameters of band Band Can be switched by the band switch button SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... - Page 15 (normal) normal (Init) Checking by itself or initializing (OSC) Uplink or downlink oscillation (normal) normal (sleep) Uplink silence (OSC) (DL-ALC) Uplink or downlink oscillation Downlink ALC (sleep) Uplink silence (DL-ALC) Downlink ALC SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com...
- Page 16 RSSI higher than -86dbm, display power normal 1. Power amplifier closed due to strong oscillation RSSI lower than -86dbm display --- 2. Manual attenuation≥30 causes the PA to turn off 6 Button control Band Select SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com...
- Page 17 (take increase 1db as an example) Manual Attenuation 6.3.2 Long Press Long press for more than 5s UL&DL - 30 db at the same time Continue to press and hold, the amplifier turns off SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com...
-
Page 18: Specifications
FCC ID: RSN-FUSION5XMAX; IC : 7784A-5XMAX Warning: Any product modifications that use unauthorized antennas, cables, and/or coupling devices are prohibited by the FCC. Contact FCC for details: 1-888-CALL-FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. -
Page 19: Configuration
-3.5dB -3.5dB *All equivalent antennas and cables are suitable for use with the Fusion5X Max V1.0 FCC 15.105 Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 20: Consumer Guidelines
à la sortie du dispositif For details on the requirements specified in ISED CPC-2-1-05, visit: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html Pour plus de détails sur les exigences ISDE CPC-2-1-05, reportez-vous au site: https://www.ic.gc.ca/eic/site/smt-gst.nsf/fra/sf08942.html SureCall, Inc | 1-888-365-6283 | support@surecall.com | www.surecall.com... -
Page 21: Warranty
Buyers may obtain an RMA number for warranty returns by calling the SureCall Return Department toll-free at 1-888-365-6283. Any returns received by SureCall without an RMA number clearly printed on the outside of the shipping container will be returned to sender. In order to receive full credit for signal boosters, all accessories originally included in the signal booster box must be returned with the signal booster. - Page 22 SureCall, Inc 48346 Milmont Drive Fremont, California 94538, USA 888.365.6283 | www.surecall.com...
