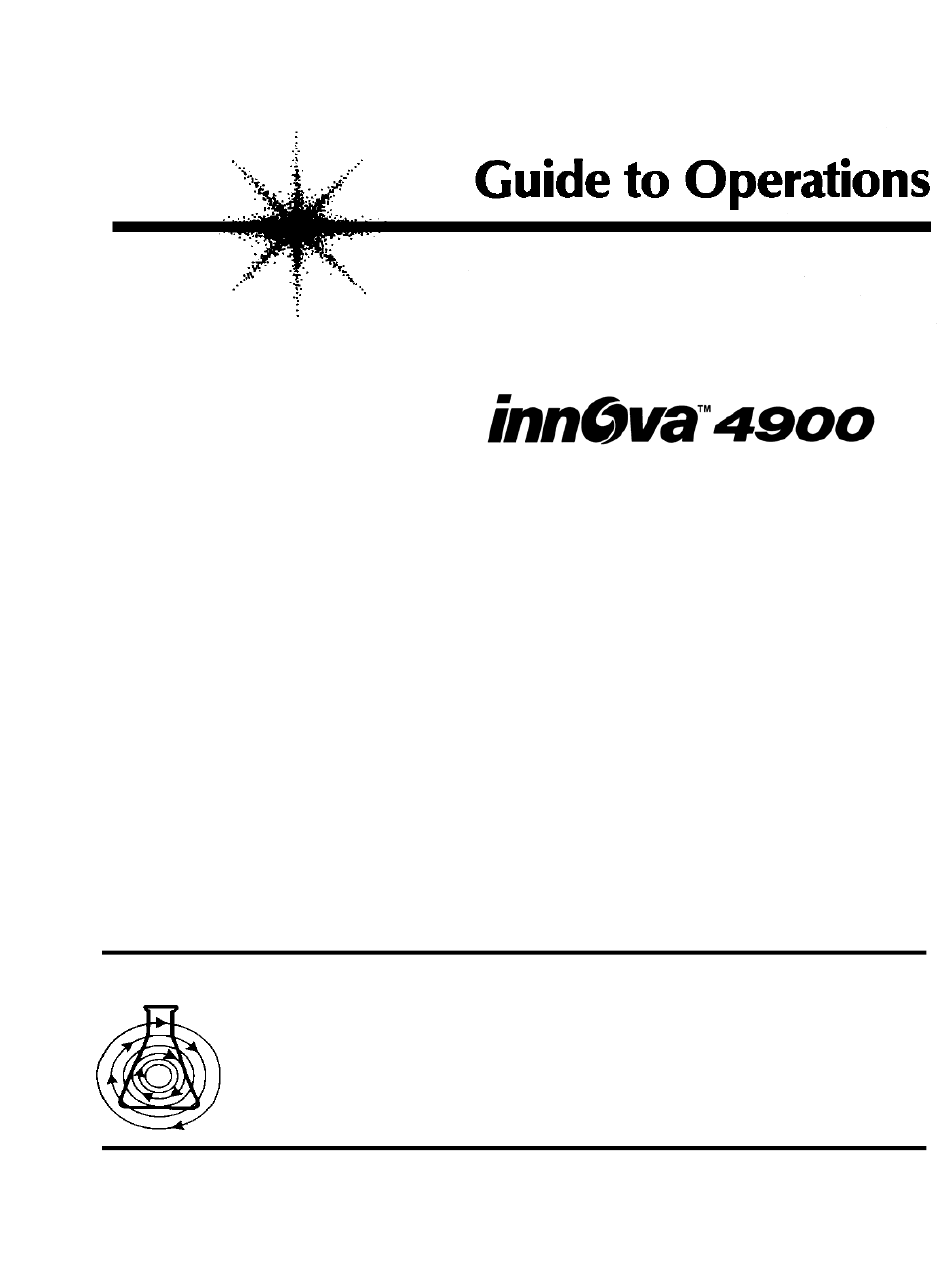

NEW BRUNSWICK SCIENTIFIC Innova 4900 Manual To Operations

Multiple shaker environmental chamber
Hide thumbs Also See for Innova 4900:
Table of Contents

Advertisement

Quick Links

Download this manual
Multiple Shaker
Environmental Chamber
Manual No. M1197-0053
Revision L
November 18, 2005
NEW BRUNSWICK SCIENTIFIC CO., INC.
BOX 4005 • 44 TALMADGE ROAD • EDISON, NJ 08818-4005
Telephone: 1-732-287-1200 • 1-800-631-5417
Fax: 732-287-4222 • Telex: 4753012 NBSCO
Internet: http://www.nbsc.com • E-mail: bioinfo@nbsc.com

Advertisement

Table of Contents
loading

Related Manuals for NEW BRUNSWICK SCIENTIFIC Innova 4900

Summary of Contents for NEW BRUNSWICK SCIENTIFIC Innova 4900

  • Page 1 Environmental Chamber Manual No. M1197-0053 Revision L November 18, 2005 NEW BRUNSWICK SCIENTIFIC CO., INC. BOX 4005 • 44 TALMADGE ROAD • EDISON, NJ 08818-4005 Telephone: 1-732-287-1200 • 1-800-631-5417 Fax: 732-287-4222 • Telex: 4753012 NBSCO Internet: http://www.nbsc.com • E-mail: bioinfo@nbsc.com...
  • Page 2 New Brunswick Scientific User’s Guide...
  • Page 3 Fax: 49 (0)7022 32486 E-mail: sales@nbsnv-sa.be E-mail: sales@nbsgmbh.de CHINA THE NETHERLANDS New Brunswick Scientific Co., Inc. New Brunswick Scientific BV A903, 904 Yin Hai Building Kerkenbos 1101, 6546 BC Nijmegen No. 250, Cao Xi Road P.O Box 6826, 6503 GH Nijmegen Shanghai 200235, P.R.
  • Page 4 THIS PAGE INTENTIONALLY BLANK New Brunswick Scientific User’s Guide...
  • Page 5 Do not use this equipment in a hazardous atmosphere or with hazardous materials for which the equipment was not designed. New Brunswick Scientific Co., Inc. (NBS) is not responsible for any damage to this equipment that may result from the use of an accessory not manufactured by NBS.
  • Page 6 THIS PAGE INTENTIONALLY BLANK New Brunswick Scientific User’s Guide...
  • Page 7 Reproduction, adaptation, or translation without prior written permission from New Brunswick Scientific is prohibited. Disclaimer Notice New Brunswick Scientific Co., Inc. reserves the right to change information in this document without notice. Updates to information in this document reflect our commitment to continuing product development and improvement.
  • Page 8 THIS PAGE INTENTIONALLY BLANK New Brunswick Scientific User’s Guide...
  • Page 9 W A R R A N T Y Every Instrument manufactured by the New Brunswick Scientific Co., Inc. is warranted to be free from defects in material and work- manship. This apparatus with the exception of glassware, lamps and electrodes (where supplied), is warranted for 1 year against faulty com-...
  • Page 10 THIS PAGE INTENTIONALLY BLANK New Brunswick Scientific User’s Guide...

  • Page 11: Table Of Contents

    ....................... 31 LEANING SERVICE ........................33 ....................33 HANGING USES & F ..............34 HANGING OLTAGE REQUENCY ................35 EPLACING LECTRONIC OARDS 5.3.1 ESD Precautions .................... 35 5.3.2 Replacing the Environmental Control Board..........35 M1197-0053 Innova 4900 Environmental Chamber User’s Guide...
  • Page 12 ESSAGE ORMAT ..................... 46 ULTIDROPPING ..................... 47 EPORT ORMAT ......................47 IRECTIVES ..................47 ESPONSE TO IRECTIVES DRAWINGS & TABLES .................... 49 ....................51 IST OF RAWINGS ....................... 51 IST OF ABLES INDEX ........................53 New Brunswick Scientific User’s Guide...

  • Page 13: Overview

    The Innova 4900 is designed so that all normally required services and repairs can be performed from the front of the unit. This allows multiple units to be installed side by side for maximum space utilization.
  • Page 14 The Innova 4900 also has an RS-422 serial communications port and is compatible with the NBS AFS BioCommand supervisory software package. This provides the ultimate in remote monitoring command, and data collection capabilities. The Innova 4900 chamber has provisions for installing various combinations of shakers and lamp manifolds up to a combined total of four units (no more than two may be lamp manifolds).

  • Page 15: Input Power Requirements

    Figure 2: Rear View Input Power Requirements The Innova 4900 may be operated from a 208-volt power source at 60 Hz, or a 220- or 240-volt power source at 50 or 60 Hz. Input voltage and frequency selection require the placing of three harness wires in the appropriate terminal blocks on the main electrical panel: this should be done only by qualified service personnel.

  • Page 16: Environmental Control Panel

    Environmental Control Panel The environmental control panel is located on the righthand side of the Innova 4900 unit and is always the uppermost control panel (see Figure 1). START/STOP As illustrated in Figure 3 below, the keypad has four keys marked SELECT .

  • Page 17: Keypad

    There are four function indicator lights (see Figure 3); one illuminates to indicate the parameter being displayed: Table 3: Function Indicators ºC Temperature Relative Humidity [no application for the Innova 4900] Alternate Temperature Setpoint M1197-0053 Innova 4900 Environmental Chamber User’s Guide...

  • Page 18: Refrigeration System

    Refrigeration System The Innova 4900 is equipped with a 1/2 HP refrigeration system. The condensing unit is hermetically sealed and the evaporating temperature is closely regulated to prevent coil icing. A hot gas bypass system is employed along with an electric heater to precisely control the chamber temperature.
  • Page 19 Regulation of analog power supplies; Signal conditioning and V/F conversion of relative humidity sensor; Control of vaporizer temperature; Control of the water metering valve; Senses excess vibration and shuts off any shaker(s) running at the time. M1197-0053 Innova 4900 Environmental Chamber User’s Guide...
  • Page 20 THIS PAGE IS INTENTIONALLY BLANK New Brunswick Scientific User’s Guide...

  • Page 21: Unpacking & Installation

    Report any obvious damage to the carrier and to the New Brunswick Scientific Co., Inc. Service Department at 1-800-631-5417. Before using the Innova 4900 remove the door wedges and the tape used to secure the cabinet illumination lamps. Do not discard the crate or packing material.
  • Page 22 Figure 4: Dimensions (front view) 30.5 inches/77 cm 78.5 inches* 199 cm* 55 inches 140 cm *NOTE: Be sure to allow 84 inches/213 cm floor-to-ceiling clearance for installation and leveling. New Brunswick Scientific User’s Guide...

  • Page 23: Leveling

    Leveling The Innova 4900 should be installed on a smooth, even surface. If it is not level on the floor, use shims as required to level the cabinet. This is essential to keep the cabinet from rocking and to avoid an out-of-balance situation that would shut down the shaker(s) within.

  • Page 24: Water Supply

    Water Supply For proper control of relative humidity, the Innova 4900 requires a de-ionized water supply. The unit is shipped with a threaded “water in” coupling on the back, near the top. The accessory kit provided contains a threaded hose barb that mates with the “water in”...

  • Page 25: Operation

    5% RH above or below the setpoint. The alarm will automatically deactivate as the chamber achieves the set relative humidity. Alternate Temperature Setpoint If a lamp manifold option is installed, the Innova 4900 allows a secondary or alternate temperature setpoint to be entered: M1197-0053 Innova 4900 Environmental Chamber User’s Guide...

  • Page 26: Checking A Setpoint

    NOTE: Channel 2 of the programmable electronic timer determines whether the Innova 4900 operates on the primary or alternate temperature setpoint. When the electronic timer display shows Channel 2 , the alternate setpoint is active. Consult your lamp manifold manual for detailed instructions on the use of the programmable timer.

  • Page 27: Excess Vibration Sensor

    If unbalanced loads are operated at high speeds and/or the cabinet is not properly leveled, the Innova 4900 cabinet may rock or “walk”. The Innova 4900 is equipped with an acceleration (called “excess vibration”) sensor to detect vibration levels that could cause damage to the unit or its contents.

  • Page 28: Rs-422 Computer Interface

    Doing otherwise may adversely affect the RS-422 computer interface. RS-422 Computer Interface The Innova 4900 may be interfaced to a computer for remote control via an RS-422 serial communications port. COMPUTER The RS422 connection is made via the 25-pin D connector labeled (see Figure 6b and Table 4B for pin-out and scale).

  • Page 29: Computer Interface Connector Pin-Out

    NOTE: When Innova 4900 is computer-controlled, attempts to change setpoints from the Innova 4900 master control panel will be overridden by the computer. To regain local control, either disconnect the computer cable or change the setpoint fields at the computer to blank spaces.

  • Page 30: Setting The Rs-422 Multidrop Address

    Setting the RS-422 Multidrop Address For remote computer control operation, the Innova 4900 must be assigned a multidrop address. To display or set the Innova 4900 multidrop address, press and hold down the START/STOP COMM key for one second. The...

  • Page 31: Maintenance & Cleaning

    & & Routine Maintenance The Innova 4900 requires no routine mechanical maintenance on the part of the user. MAINT indicator light goes on 10,000 hours after the unit was last serviced. When MAINT you see the light, call your local NBS Service Engineer or call the NBS Service Department.
  • Page 32 THIS PAGE IS INTENTIONALLY BLANK New Brunswick Scientific User’s Guide...

  • Page 33: Service

    The basic service procedures and instructions to install optional features that are provided in this section must be performed only by a qualified service engineer. WARNING! Before performing any service or maintenance on the Innova 4900, turn OFF the power and disconnect the power cord. Changing Fuses ON/OFF The unit is designed utilizing a main circuit breaker that is used as an switch.

  • Page 34: Changing Voltage & Frequency

    Section 5.5,Service Parts, for fuse part numbers). Changing Voltage & Frequency Innova 4900 is set to the appropriate line voltage and frequency prior to shipment. If it becomes necessary to set the unit to a different voltage or frequency, an authorized...

  • Page 35: Replacing Electronic Boards

    2. Using a flat bladed screwdriver, gently pry/snap the trim strips off, then remove the six #10 screws that hold the lower panel in place. Remove the four screws holding the environmental control panel in place. M1197-0053 Innova 4900 Environmental Chamber User’s Guide...
  • Page 36 8. Replace the three ¼-inch screws and nylon flat washers. 9. Reconnect the harness wiring to connectors J1, J101, J102, J103, J104 and J105. 10. Put the environmental control panel back into place and fasten it with the four screws removed in step 3. New Brunswick Scientific User’s Guide...

  • Page 37: Replacing The Master Control Board

    11. Replace the trim strips. 12. Reconnect the power cord. The Innova 4900 is now ready for use. 5.3.3 Replacing the Master Control Board To replace the master control board, the authorized service technician will follow this procedure: 1. Follow steps 1 through 7 of the environmental control board replacement procedure to remove the environmental control panel and remove the environmental control board.

  • Page 38: Replacing The Humidity Control Board

    5. With reference to Figure 10 below, remove the four mounting screws and flat washers, and remove the humidity control board. Figure 10: Replacing the Humidity Control PCB 6. Install the new humidity board and fasten with four #6-32 mounting screws and nylon flat washers. New Brunswick Scientific User’s Guide...

  • Page 39: Replacing Lamps

    8. Replace the upper panel and fasten with four #10 screws. 9. Replace the front panel trim strips. 10. Connect the power cord to the power source. The Innova 4900 is now ready for use. Replacing Lamps To replace a cabinet illumination lamp: 1.
  • Page 40 Environmental Control PCB M1197-7002 Humidity Control PCB P0360-4040 130V Varistor P0620-1380 250W Heater P0420-5185 Dual Lamp Ballast P0200-1260 Filter Dryer P0740-3110 Water Tubing P0220-0320 Water Valve M1197-8190 Humidifier Heat Sensor Assembly P0220-1851 Humidifier Safety Thermostat New Brunswick Scientific User’s Guide...

  • Page 41: Specifications

    Innova 4900 Environmental Chamber TEMPERATURE 20.0ºC below ambient temperature (4.0ºC minimum) to 60.0°C Range ± 0.1°C by use of PI microprocessor controller and pulse width modulation Control Stability (PWM) of heater. Digitally adjustable, in increments of 0.1ºC. Instantaneous visual feedback...
  • Page 42 Innova 4900 Environmental Chamber CABINET (INNER) DIMENSIONS Width 30 inches (76 cm) Depth (Front to Back) 22 inches (56 cm) Height 66 inches (168 cm) 1400 pounds (636 kg) WEIGHT CONSTRUCTION Heavy gauge stainless steel cabinet. New Brunswick Scientific User’s Guide...

  • Page 43: Optional Accessories

    Heavy-duty gyrotory shakers are available in 1-inch and 2-inch strokes. They are designed and built specifically for use in the Innova 4900 System. The 1-inch stroke machine operates from 25 to 400 RPM, while the 2-inch stroke shaker operates from 25 to 300 RPM.

  • Page 44: Optional Supervisory Software

    Optional Supervisory Software NBS provides AFS-BioCommand supervisory software as an option to control your Innova 4900 environmental chamber, its shakers and, if present, photosynthetic lamps COMPUTER from a computer, connected via the RS-422 connector (see Section 3.9). Table 8: NBS BioCommand Software Software &...

  • Page 45: Afs-Biocommand Communication Protocol

    NBS AFS-BioCommand supervisory software communicates with local controllers through a serial interface. This section describes the communication protocol. Communication Setup The communication setup in the Innova 4900 is preset and fixed, as listed below: Table 9: Communication Protocol Baud Rate...

  • Page 46: Multidropping

    (52 Hex); the second character is one capital character from A through L; the third character is a Carriage Return (0D Hex). Inquiries are acknowledged by the requested report in the format described in Table 10 below. If any error (parity or format) is found, no response is made. New Brunswick Scientific User’s Guide...

  • Page 47: Report Format

    Directives Innova 4900 supports only one directive: Modify Setpoints. “Figure C.4” in Figure 12 shows the required format for a Modify Setpoints directive. Note that the numeric data fields are positioned exactly the same as in a report generated by the local controllers.
  • Page 48 Figure 12: NBS Serial Communications Format # unit number character; S - blank space character (20H); CR Carriage Return (ODH) New Brunswick Scientific User’s Guide...

  • Page 49: Drawings & Tables

    & & Figure 13: Control Schematic M1197-0053 Innova 4900 Environmental Chamber User’s Guide...
  • Page 50 Figure 14: Refrigeration Diagram New Brunswick Scientific User’s Guide...
